Banbury Rubber Internal Mixer Dispersion Kneader with PLC controller
Main Application:
Rubber & TPR,EVA,Rubber sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord, Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical Industry Compounds.
Features for Dispersion Kneader:
1. An automatic temperature and time control system to provide a 100% mixing effect.
2. Easy to clean chamber and changing colors.
3. In 6~10 minutes/batch of output equivalent to 2 units of mixing mill.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevented environmental pollution.
5. Sturdy and durable,low failure rate,easy installment,operation and maintaining, energy conservation.
Main Technical Parameter:
Model |
X(S)N-20*34 |
X(S)N-35*30 |
X(S)N-55*30 |
X(S)N-75*30 |
X(S)N-110*30 |
Total Volume of Kneading Chamber (L) |
45 |
75 |
125 |
175 |
250 |
Total Volume of Mixing Chamber(L) |
20 |
35 |
55 |
75 |
110 |
Driving Motor Power(KW) |
30 |
55 |
75 |
110 |
185 |
Tilting Motor Power(KW) |
1.5 |
2.2 |
2.2 |
3.0 |
7.5 |
Tilting Angle |
140° |
140° |
140° |
140° |
140° |
Rotational Speed of the Rotor (Front/Rear)(r/min) |
34/28 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
Pressure of Compressed Air(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Flow Rate of Compressed Air (m³/min) |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
(Rubber Mixing)Pressure of Cooling Water(Mpa) |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
(Plastication)Pressure of Heated Steam(Mpa) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
Overall Dimension(L*W*H)(mm) |
3100*1300 *2450 |
3200*1900*2945 |
3300*1900*2900 |
3760*2143*3135 |
4075*2712*3580 |
Gross Weight(kg) |
4500 |
6500 |
7800 |
10.23 |
14.97 |

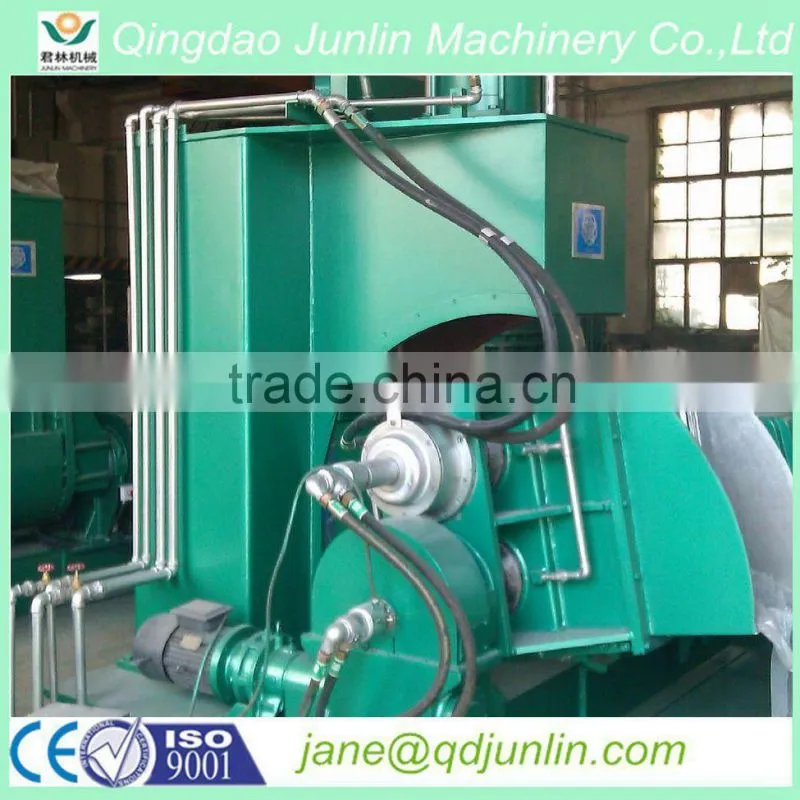

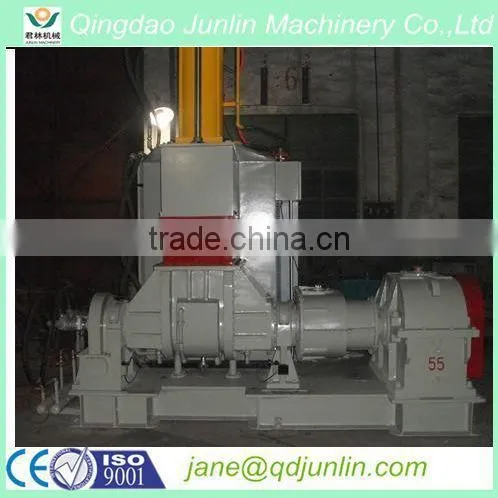

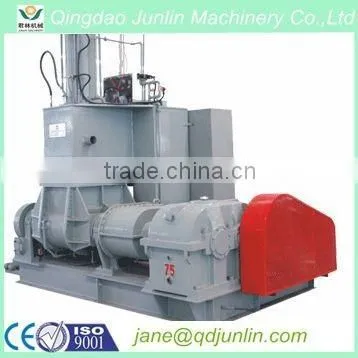

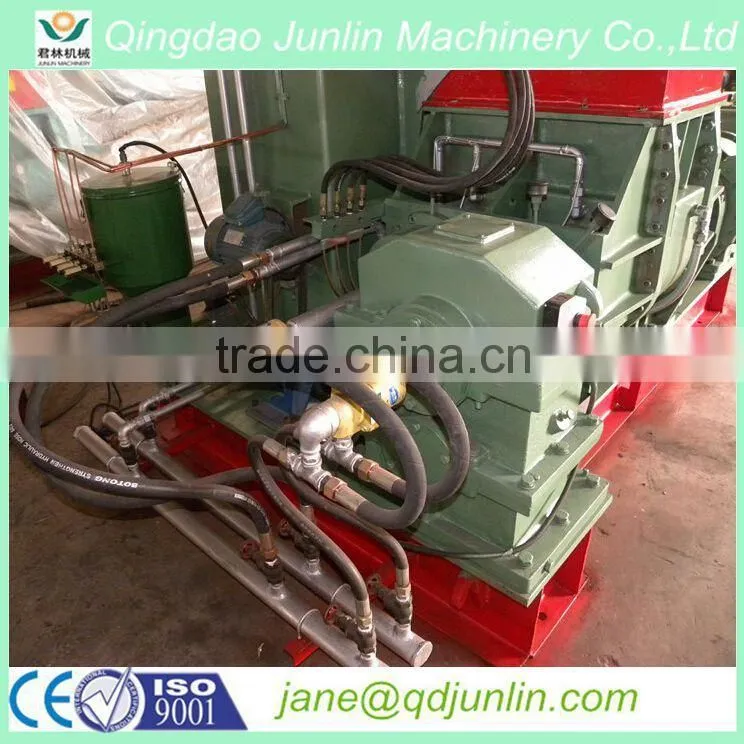

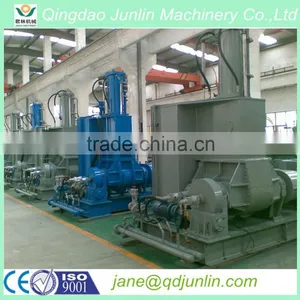

Pictures of our machine:

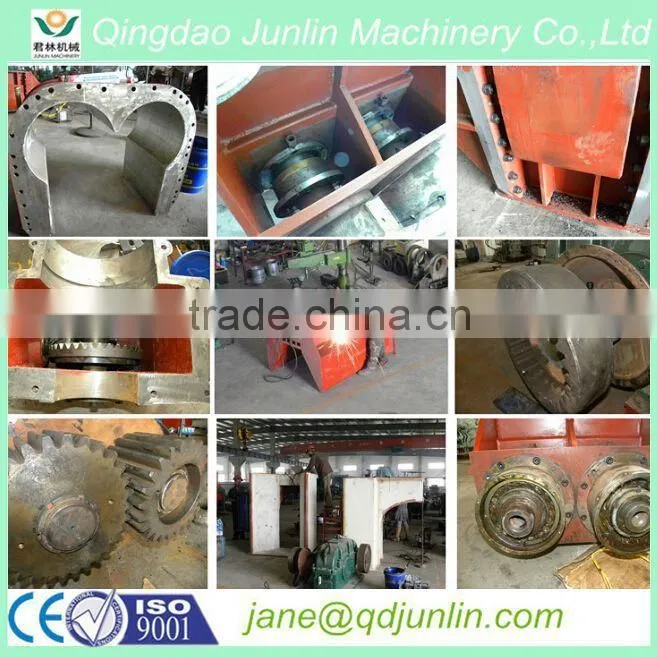

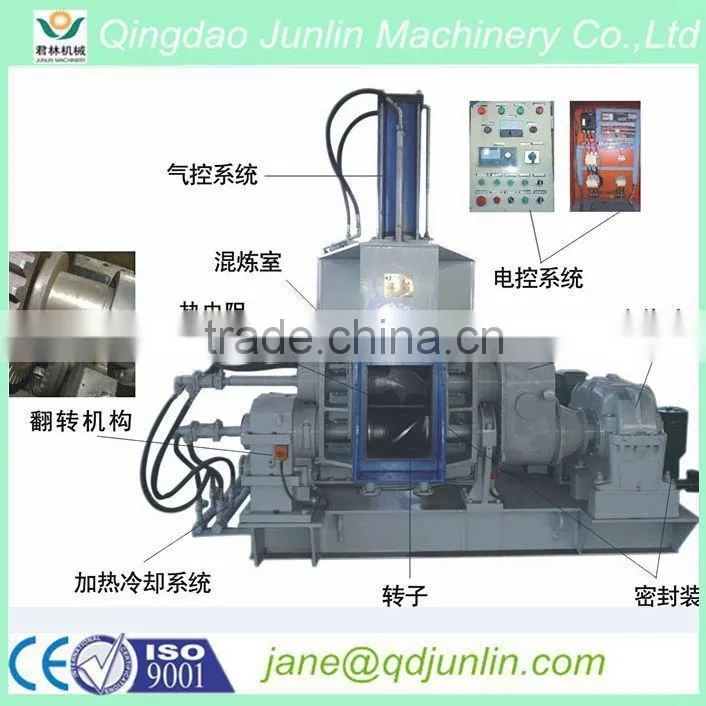

Main parts of the machine

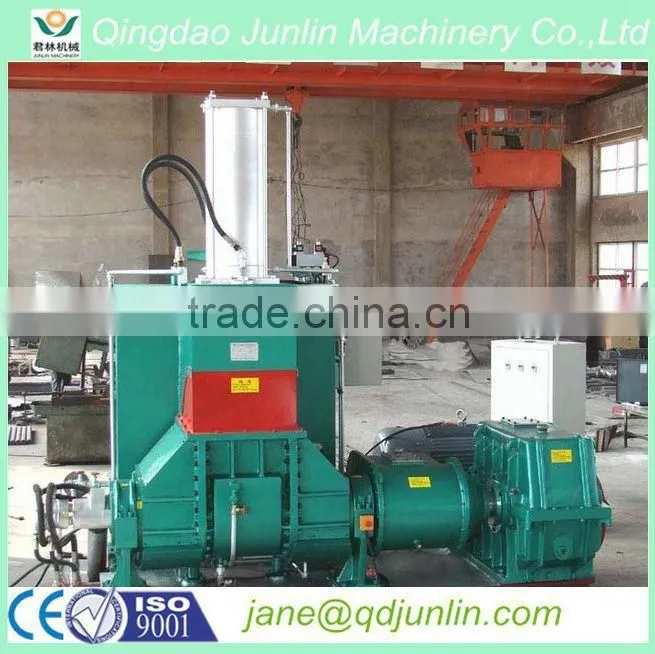

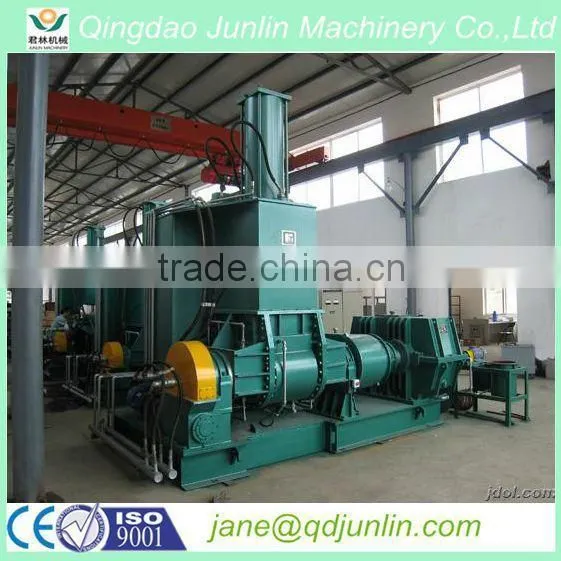

our processing workshop
After-sales service:
*We furnish the best pre-sale and after-sale service,no matter whether you buy products from our factory at last,it is our pleasure to furnish you any help during your purchase;
*Manufacture Factory with Rich Production Experience
*Superior Quality at Reasonable Price
*365 Days' Ongoing Service *Comprehensive Technical Support
Our customer:
We have been exporting our products to many countries and regions,such as:South Korea,Indonesia, Malaysia,India,Thailand,Russia,Turkey,Romania,Poland,Egypt,South Africa,Algeria,Uruguay, Brazil, America and so on,getting trust and good feedbacks widely from our customers.
Good luck to you and wishing your business is booming.
Thanks & kindest regards.
