12V 15A 201W Single Output Security Systems Switching Power Supplies

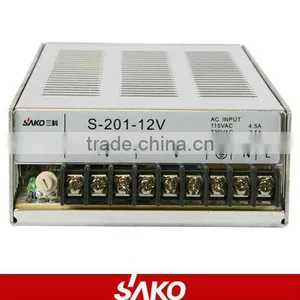

12V 15A 201W Single Output Security Systems Switching Power Supplies thumbnail-1

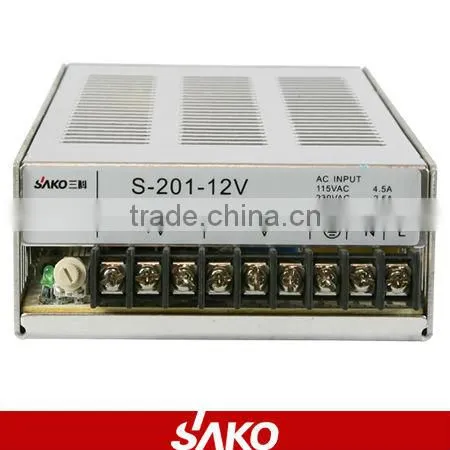

12V 15A 201W Single Output Security Systems Switching Power Supplies photo-1
US$ 10 - 20 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAKO
Model Number:
SKK-S-201W
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAKO
Model Number SKK-S-201W
Output Power 201 - 300W
Output Type Single
Input Voltage 220V
Output Voltage 12V
Output Frequency 50/60Hz
Output Current 15A

Specifications

1.200W switching power supplies for security systems
2.100% full load burn-in test
3.Enclosed frame constant voltage type

AC/DC series single output 12V 15A 200W series switching power supplies with metal case 215x115x50mm



Model:SKK-S-201W-5V/12V/15V/24V/48V

215x115x50mm



Features

1.Small volume,light weight

2.100% full load burn-in test

3.Soft start circuit, limiting AC surge current

4.Width input voltage range

5.Short circuit,overload,over voltage protection

6.High efficiency,low working temperature,long lifespan



Technical Paramter

Input Voltage Range:88-132VAC/176-264VAC, selected by switch

Input Frequency:47-63Hz

Inrush Current:Cold start,25A/115VAC,50A/230VAC

Output Voltage Range:±10%

Overload Protection:105%~150% rated output power,auto-recovery

Setup,rise,hold up time:200ms,50ms,20ms

Withstand Voltage:I/P-O/P 3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC,1minute

Working Temperature:-10°c~50°c

Storage Temperature:-20°c~85°c

Safety Standards:GB4943,EN60950

Connection:9PIN 9.5mm pitch terminal block

Weight:0.85kgs



Specification

Model No Output Tolerance R*N Efficiency
SKK-S-201W-5 5V 40A ±2% 100mV 71%
SKK-S-201W-12 12V 14.9A ±2% 100mV 79%
SKK-S-201W-15 15V 13.4A ±2% 100mV 81%
SKK-S-201W-24 24V 8.4A ±2% 150mV 83%
SKK-S-201W-48 48V 4.2A ±2% 200mV 84%

12V 15A 201W Single Output security systems switching power supplies12V 15A 201W Single Output security systems switching power supplies
