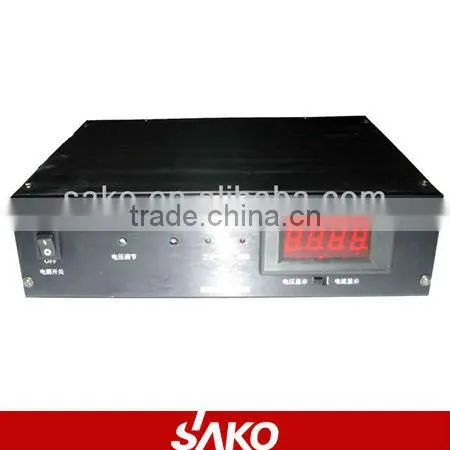

Adjustable Power Supply 0-48V 20A 750W Switching Power Supply LED Display for Volts and Amps Readout

Adjustable Power Supply 0-48V 20A 750W Switching Power Supply LED Display for Volts and Amps Readout thumbnail-1
Adjustable Power Supply 0-48V 20A 750W Switching Power Supply LED Display for Volts and Amps Readout photo-1
US$ 100 - 200 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAKO
Model Number:
SKK-750W-48
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAKO
Model Number SKK-750W-48
Output Power Other, >500W
Output Type Single
Input Voltage 220V
Output Voltage 48V
Output Frequency 47-63Hz
Output Current 20A

Specifications

750W Single Output Switching Power Supply
0-48V 20A
Constant Voltage,Constant Current Adjustable Power Supply

Specification: 12V60A,15V60A,20V40A,30V30A,48V20A,75V10A,150V1A-2A,150V3A,150V5A,220V4A



Features

High reliabity

100% full load burn-in test

Protection: overload,over voltage, short circuit

1 year warranty

Can be customized more specification according to customers' requirements

Size 205x250x65mm



Technical Datasheet

Input Voltage Range:175-264VAC

Frequency:47-63Hz

Input Inrush Current:100A/230V (cold start)

Input Leakage Current:<0.7mA/230VAC

Line Regulation (full load):≤±0.5%

Load Regulation:V1:≤±0.5%  V2:≤±1%

Output Voltage Adjustment Range:V1:15%-105% rated output voltage

Output Overload Protection:110%-150%

Isolation Intensity:I/P-O/P:1.5KVAC/1min,I/P-FG:1.5KVAC/1min,O/P-FG:0.5KVAC/1min

Rise Time:50ms(typical)

Hold Up Time:20ms(Typical)

Working Environment:-10°c ~ +50°c ,20% ~90% (non condensating)

Storage Environment: -20°c ~ +85°c ,20% ~95% (non condensating)

Safety Standards:Design refer to GB4943,UL60950,EN60950

EMC Standards:Design refer to GB9254,EN55022 class A,EN61000-3-2,3 EN61000-4.2.3.4.5.6.8.11

Cooling Method:Wind

MTBF:30000hours

Ripple:50mV(typical)

Size:205x250x65mm

Wieght:3.6kgs
