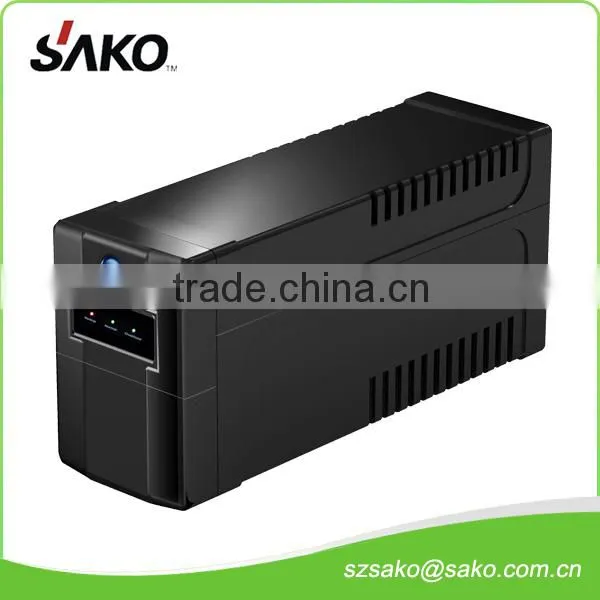

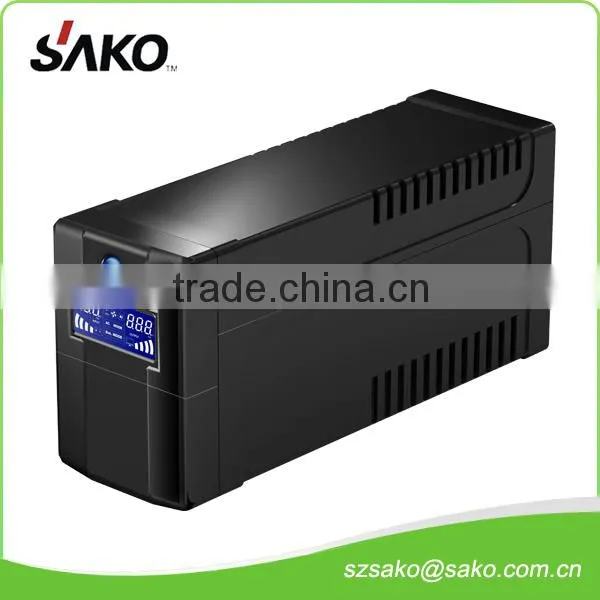

Line Interactive UPS 400VA-1500VA for Computer

Name: Line Interactive UPS 400VA-1500VA for Computer
Brand: SAKO
SKU: 120334133

US$ 18 - 38 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SAKO

Model Number:

VPE-500VA-1000VA

Sako Electrical Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOBshenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SAKO

Model Number VPE-500VA-1000VA

Phase Single Phase

Protection Overvoltage

Weight 3.5-11KG

Output Voltage 110V/120VAC or 220/230/240VAC

Type Line Interactive

Application Computer

Line interactive UPS (PWM output)-Plastic case
Model #	VPE-500	VPE-600	VPE-800	VPE-1000	VPE-1200	VPE-1500
Capacity	500VA/300W	600VA/360W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
AVR	No	3 steps of AVR, CPU controlled
INPUT
Input voltage range	110V: 90~132±5Vac	110V: 85~150Vac±5Vac
	220V:175~265±5Vac	220V:145~290Vac±5Vac
Input frequency range	50Hz / 60Hz (Auto sensing)
OUTPUT
Output voltage range	110V: 90~132±5Vac	110V: 102~132Vac
	220V: 175~265±5Vac	220V:200~255Vac
Output frequency (DC mode)	50±0.5Hz / 60±0.5Hz
Wave form	PWM (DC Mode)
Transfer time	Typical 2~6ms, Max.10ms.
BATTERY
QTY & capacity of battery	1 pc*12V4.5Ah	1 pc*12V7Ah	1 pc*12V9Ah	2 pcs*12V7Ah	2 pcs*12V7Ah	2 pcs*12V9Ah
Charging period	4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION	1. Battery low voltage protection 2. Overload protection 3. Short circuit protection
FUNCTION	1. Auto re-starts when AC recovers 2. Silence setup 3. Automatic charging (offline charging)
MANAGEMENT
RJ45/11 & USB	Optional
PHYSICAL
Unit dimension (mm)	31497143			345146162
Color box dimension (mm)	370145230			435223242
Master box dimension (mm)	380312485			466450264
Pcs in one master carton	4			2
Gross weight (1pc, kg)	4.2	4.9	6.2	11.2	13.0	15.0
Net weight (1pc, kg)	4.0	4.6	5.8	11.0	12.8	14.8
Loading capacity (20' ctrn)	2160 pcs			960 pcs
Loading capacity (40' GP)	4440 pcs			1920 pcs
