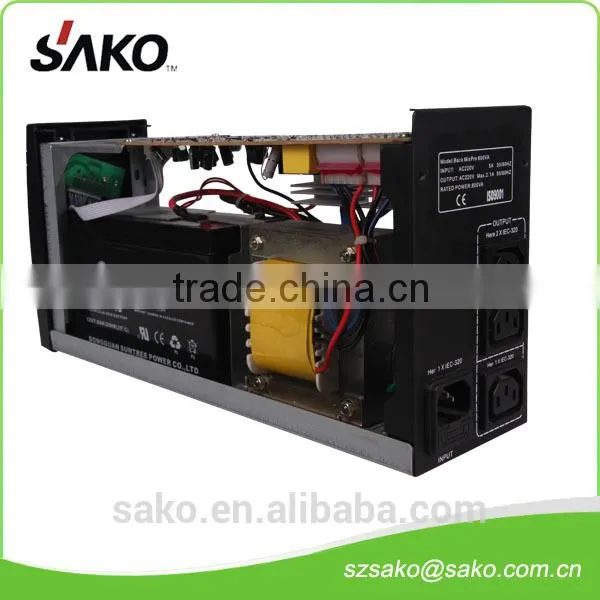

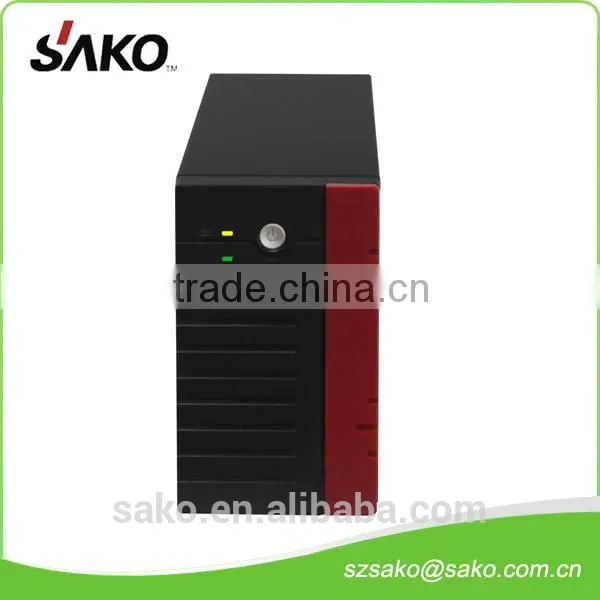

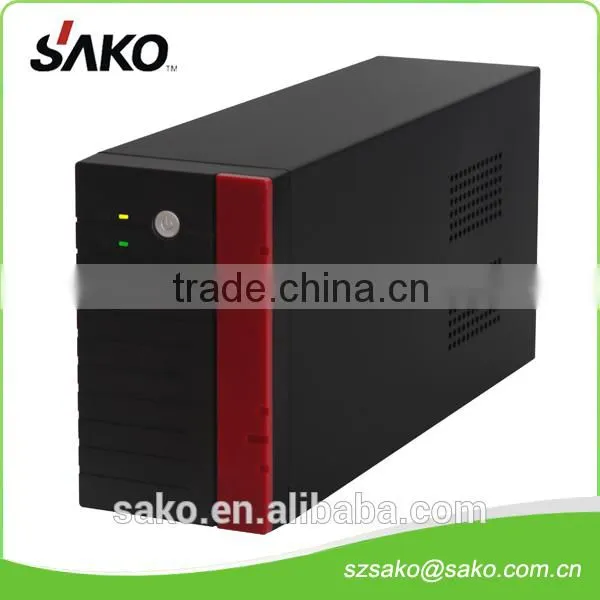

SAKO PCS SERIES OFF-LINE UPS

Name: SAKO PCS SERIES OFF-LINE UPS
Brand: sako
SKU: 120334267

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

sako

Model Number:

pcs 500-1500va

Sako Electrical Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name sako

Model Number pcs 500-1500va

Phase Single Phase

Protection Lightning

Weight 5-12

Output Voltage 220v

Type Standby

Application Computer

Specifications

1Automatic voltage ragulation(AVR)
2Wide Input Voltage Range Option
3High/Low Voltage Protection

Automatic voltage ragulation(AVR)
Wide Input Voltage Range Option
High/Low Voltage Protection
Overload/Short Protection
Cool start computer even there is no main power
Automatic recharge even UPS is off
Beeping Alarm
Colored LED display
Frequency Selection Automatically
Intelligent Battery Management
Smart RS232 and RJ11 Option
Compatibility With Generators

Product	Requirements	Model 1	Model 2	Model 3	Model 4	Model 5	Model 6
Power (VA)		PCS-500	PCS-650	PCS-800	PCS-1000	PCS-1200	PCS-1500
Input	Voltage	220/230/240VAC ±25%(145-280V±5V or/ 75V-145V+/-5V)
	Frequency	50Hz/60Hz+/-10%
Output	Voltage (Inverter Mode)	110/120 VAC or 220/230/240VAC ±10%
	Capacity	500VA/300W	650VA/360W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/880W
	Frequency (Inverter Mode)	50/60Hz+/-10%
	Transfer Time	6MS typical
	Waveform	modified-Sinewave
Protection	Spike & Surge Suppression	yes
	Over/Under Volt.	Switch to Bat. O / P when Mains over regulation range
	Over load /short Circuit	Fuse & current linited for both Mains and Battery modes
Function	Cool start	Cool start computer even there is no main power
	Automatic recharge	Automatic recharge even UPS is off
Battery	Type	Lead-Acid miantenance-free
	Dc Bus	12V7.0Ah		12V9.0Ah		12V7.0Ah	12V9.0Ah
	Number	1 PC				2 PCS
	Recharge time	8hours≥90%
	Back up time(one PC)	8-15mins	10-18mins	15-25mins	15-25mins	20-30mins	25-45mins
Physical	Weight (KGs)	5	5.5	6.5	8.5	11	12
	Shipping Wt.	5.6	6	7	9	11.5	12.5
	Product Dimensions (mm)	33595160			355120195
	Package Dimensions (mm)	375170200			420190250
Soft ware	Windows & NT	Auto save & shut down
Efficiency	AC-AC	1
	DC-AC	0.6
Acoustic	Noise level	≤45dB
Environmental	Temperature	-5-45 DegreeC
	Humidity	20% to 90%
Power Outlets	No. and types	2 SOCKETS			3 SOCKETS
