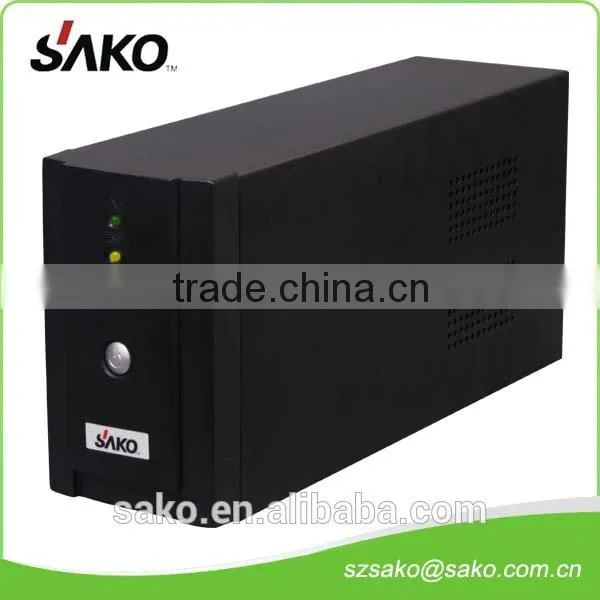

LED Display Offline UPS

LED Display Offline UPS thumbnail-1
LED Display Offline UPS photo-1
US$ 19 - 80 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SAKO
Model Number:
350VA,500VA,650VA,800VA,1000VA,1500VA,2000VA
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name SAKO
Model Number 350VA,500VA,650VA,800VA,1000VA,1500VA,2000VA
Phase Single Phase
Protection Short Circuit
Weight 7KG-15KGS
Output Voltage 220V/110V
Type Standby
Application Computer

Specifications

idea power supply for personal computer with back up time.

SAKO PCX SERIES OFF-LINE UPS
Automatic voltage ragulation(AVR)
Wide Input Voltage Range Option
High/Low Voltage Protection
Overload/Short Protection
Cool start computer even there is no main power
Automatic recharge even UPS is off
Beeping Alarm
Colored LED display
Intelligent Battery Management
Smart RS232  and RJ11 Option
Compatibility with generators

Product Requirements Model 1 Model 2 Model 3 Model 4 Model 5 Model 6 Model 7
Power (VA) PCH-350 PCH-500 PCH-650 PCH-800 PCH-1000 PCH-1200 PCH-1500
Input  Voltage  120 VAC or 220/230/240VAC ±25%(145-280V±5V Option)
Frequency         60Hz/50Hz +/-10%
Output   Voltage (Inverter Mode)  120 VAC or 220/230/240VAC ±10%
Capacity 350VA/210W 500VA/300W 650VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/880W
Frequency (Inverter Mode)  60Hz/50Hz +/-10%
Transfer Time   6MS typical
Waveform modified-Sinewave
Protection Spike & Surge Suppression yes
Over/Under Volt. Switch to Bat.  O / P  when Mains over regulation range
Over load /short Circuit Fuse & current limited for both Mains and Battery modes
Function Cool start Cool start computer even there is no main power
Automatic recharge Automatic recharge even UPS is off
Battery Type     Lead-Acid maintenance-free
Dc Bus 12V4.5Ah 12V7.0Ah 12V9.0Ah 12V7.0Ah 12V7.0Ah 12V9.0Ah
Number 1PC 1 PC 2 PCS
Recharge time 8hours≥90%
Back up time(one PC) 5-8mins 8-15mins 10-18mins 15-25mins 20-30mins 20-30mins 25-45mins
Physical Weight (KGs) 4.5 5 5.5 6.5 10.5 11 11.5
Shipping  Wt. 5 5.6 6 7 11 11.5 12
Product Dimensions (mm) 335*95*160 355*120*195
Package Dimensions/caron 395*360*230 mm/ 2 PCS in 1 Carton 435*395*275/ 2 PCS in 1 Carton
Soft ware    Windows & NT Auto save & shut down
Efficiency AC-AC 1
DC-AC 0.6
Acoustic Noise level ≤45dB
Environmental Temperature     -5-45 DegreeC
Humidity         20% to 90%
Power Outlets No. and types  2  SOCKETS 3  SOCKETS

LED display offline UPSLED display offline UPSLED display offline UPS





LED display offline UPSLED display offline UPSLED display offline UPSLED display offline UPSLED display offline UPSLED display offline UPS
