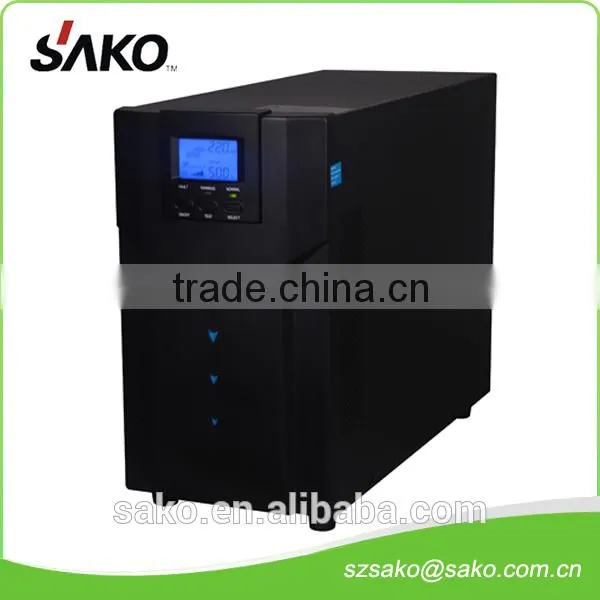

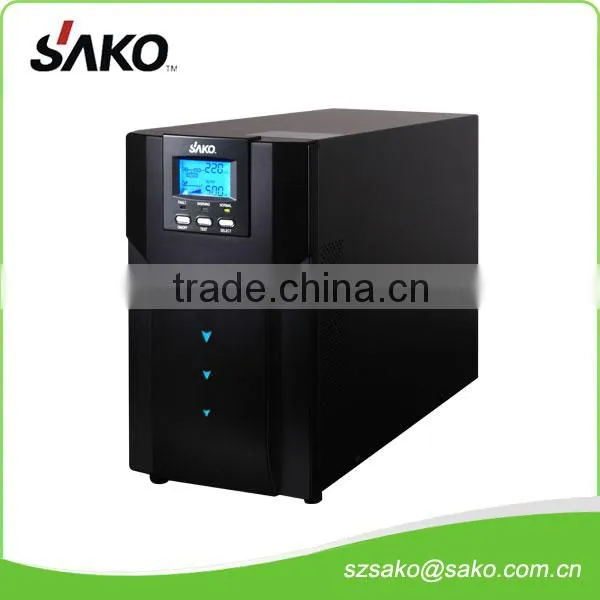

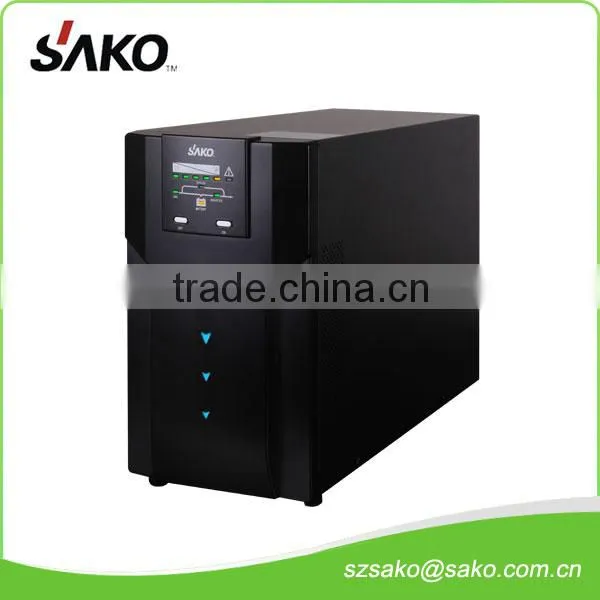

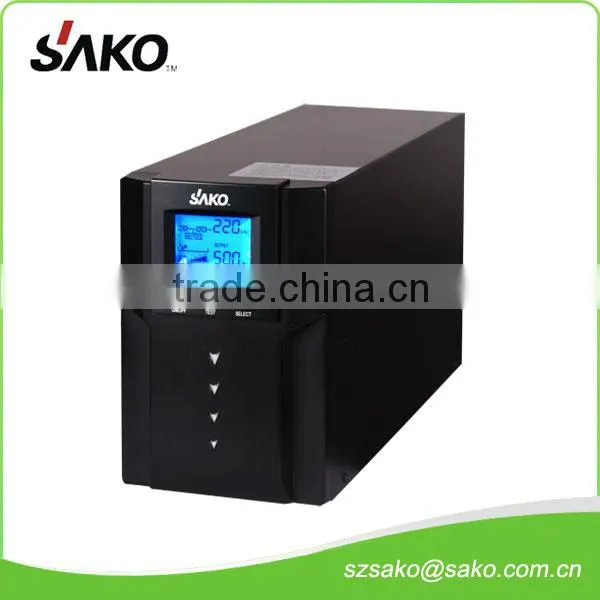

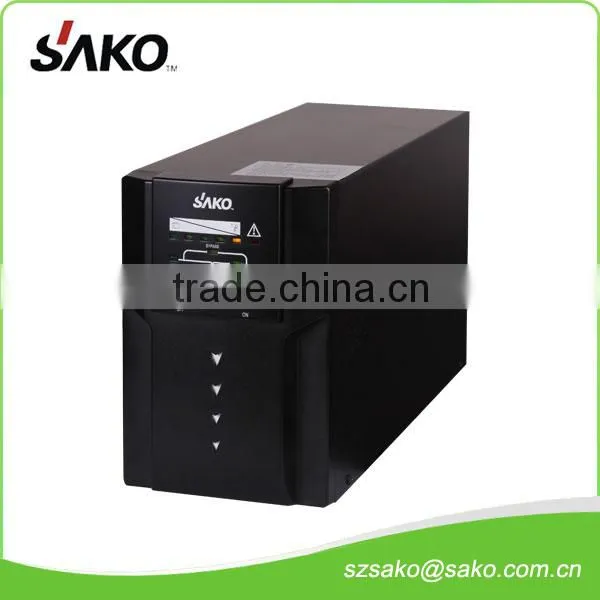

UPS SKG-Series

UPS SKG-Series thumbnail-1
UPS SKG-Series photo-1
US$ 20 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAKO
Model Number:
SKG
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAKO
Model Number SKG
Phase Single Phase
Protection Short Circuit
Weight 32kgs
Output Voltage 220V or 110V +/-2%
Type On-line
Application Computer

Specifications

Fully digitized microprocessor control
Optional extension battery pack
EMI/RFI noise filter
Optional SNMP card slot

SAKO SKG 1-3KVA Series TECHNICAL PARAMETER
MODEL SPECIFICATION
 SKG-1K SKG-R1K SKG-2K SKG-R2K SKG-3K SKG-R3K
SPECIFICATION 1KVA/700W 2KVA/1400W 3KVA/2100W
Input Voltage Range (VAC) When Load<70%, Input Range is 115±5VAC~295±5VAC or 60~138±5VAC
When Load≥70%, Input Range is 160±5VAC~295±5VAC or 80~138 ±5VAC
Frequency Range (Hz) 46~54Hz±0.5Hz
56~64Hz±0.5Hz Auto Sensing
Phase Single Phase
Power Factor (PF) ≥0.97
Output Voltage Range (VAC) 220VAC or 110VAC ± 2%
Frequency Range (Hz) 50Hz/60Hz ± 0.2%
THD (Linear Load) < 3%
THD (Non-Linear Load) < 6%
Overload Capability > 110%, 30s Turn To Bypass Mode
> 150%, 300ms Turn To Bypass Mode
Crest Factor 3:1 (Max)
Short Circuit Protection 5 Cycles Turn Off Inverter, No Transfer To Bypass, Provide Alarm (AC Mode)
5 Cycles Turn Off Inverter, Provide Alarm (Battery Mode)
Input Fuse Blown Or Breaker Action (Bypass Mode)
Waveform Pure Sine Wave
Transfer Time Between
AC Mode and Battery Mode		 Transfer Time: 0ms
Efficiency ≥ 83% ≥ 85%
Battery Model 12V Sealed Lead Acid Maintenance Free
DC Voltage (VDC) 36VDC 96VDC
Battery 3×12V/7AH 8×12V/7AH
Backup Time (Half Load) 12min 19min 16min
Backup Time (Full Load) 5min 8min 5min
Charge Current (Standard Unit) 0.7A 0.7A 0.7A
Charge Current (Long Time Unit) 7.5A 7.5A 7.5A
Recharge Time 90% Capacity After 8 Hours Charging
Communication Interface RS232 ; SNMP (Optional)
LCD Indication Load level, battery capacity, battery mode, utility mode, inverter,
bypass, overload, Fault
Noise Level (dB) < 45dB
Environment Temperature 0°C ~ 45°C Degree
Humidity 0%~95% (Non-Condensing)
Altitude (m) < 1500m
Storage Temperature -25°C ~ 55°C Degree
Others Standard Unit N.W./G.W. (KG) 12/14KG 13/15KG 23/25KG 27/29KG 28/30KG 32/34KG
Long Time Unit N.W./G.W. (KG) 6.5/8KG 7.5/9KG 10.5/12.5KG 11.5/13.5KG 11.5/13.5KG 11.5/13.5KG
Dimension (W×H×D) mm 145×220×355 483×382×88 190×433×318 483×382×88 190×433×318 483×382×88
Packing (W×D×H) mm 245×540×343 587×550×254 337×615×487 592×665×292 337×615×487 592×665×292

UPS SKG-SeriesUPS SKG-SeriesUPS SKG-SeriesUPS SKG-Series

UPS SKG-SeriesUPS SKG-SeriesUPS SKG-SeriesUPS SKG-SeriesUPS SKG-Series

UPS SKG-Series
