Packaging & Delivery
| Packaging Details: | Wooden Drums or Steel Drums, as Your Requests |
| Delivery Detail: | 15 days or depend on your quantity |
Specifications

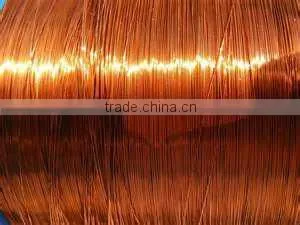

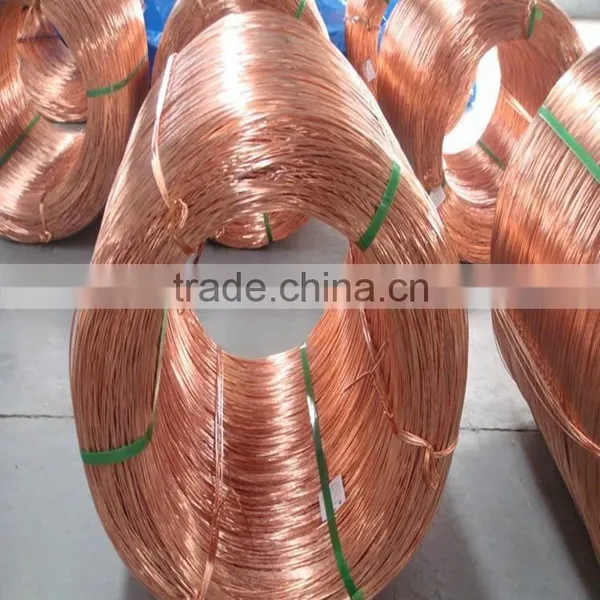

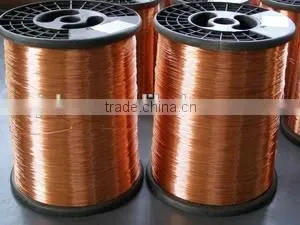

Magnet Wire enameled copper wire Formacon Wire
General description
The magnet wire, FORMACON® , is made with enamel from a modified polyvinyl formal resin. The enamel film is applied on the wire by passing it through controlled dimension die and curing it in special furnaces in a continuous process. Due to strict control, the result is a product of excellent quality. The FORMACON® Wire is manufactured in two insulation thicknesses: Single and double.
Thermal class.
FORMACON® Magnet wire is recommended for use in electrical equipment with a maximum operating temperature of 120° C.
Main applications
AUTOMOTIVE
Generators
Alternators
Regulator coils
Claxon coils
ELECTRONICS
Coil for black and white TV yokes
Different types of coils for radio frequency, horizontal output transformers (Fly Back) and Inductors (Choke).
SPECIAL TRANSFORMERS
Ballasts
Measuring Coils
Small transformers, electrical devices, controls.
DISTRIBUTION TRANSFORMERS
Dry and oil
LOW POWER AND FRACTIONAL HORSEPOWER MOTORS
Wound Starter Motors
Note: Also available is FORMACON® - H (for hermetic applications), which has an excellent resistance to freon 22, due to the low content of extractable solvents, which means that FH-105 can be used in practically all types of hermetic motocompressors used for refrigeration.
Characteristics
Offers an excellent flexibility and great resistance to abrasion.
Supports high winding speeds.
Has a very high dielectric rigidity.
Has excellent resistance to thermal shock.
Is compatible with a wide variety of varnishes, waxes and impregnation compounds.
Insulation thickness can be increased without affecting the properties of the wire.
Excellent for use in oil transformers.
