Specifications
1.CNG tube trailer for transporting2.WP 250bar TP 375BAR
3.seamless steel,12tubes
4.8700CBM ISO
5.Fit for all clients abroa
Zhongyou Tongyong Luxi Natural Gas Equipment Co.,Ltd. is a manufacturer of CNG long tube trailers and a pioneer in this field in China, which ensures that we supply not
only present products, but also update products, most suitable solution and in-time technical support.Any inquiry or comment from our clients is highly appreciated.
New products: Super light weight, but much reasonable price!
10tubes, 7300CBM, only 28.88MT!
11tubes, 8000CBM, only 28.78MT!
12tubes, 8700CBM, only weight:31MT!
Much lower price than composite trailer!
You are free to worry about weight limit in your country, and reduce transporting cost!
Part A:

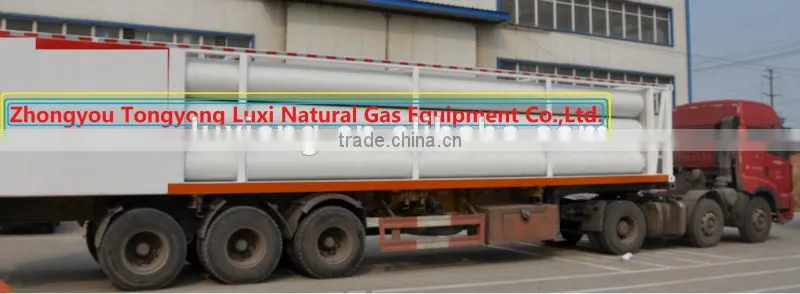

The tube trailer is designed specially for bulk-transportation of compressed natural gas(CNG).
1.OD559mm tubes are selected, large storage capacity;
2.OD559 seamless steel tubes are selected, less tube quantity,less joints, and safer;

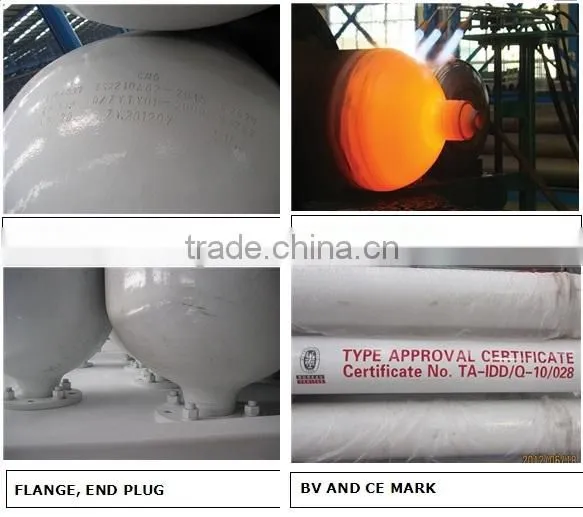

3.Seamless tubes are selected, close-spinning technology is adopted, no leakage and safety operation can be ensured;
4.Parker valves and other top class parts are selected to strengthen the quality;
5.Manufacturing and exporting experience since 2008, annually 800 sets production experience to ensure mature and steady products quality;
6.Quality insurance:from Shandong Special Equipment Inspection Institute, to manufacturer self inspection, to third party inspection companies(BV,SGS etc).
7.One-stop purchasing experience, quality tractors and chasses can be sourced by us.
Our attitude:Help you to transport green energy affordably!
Part B:
Specification:
Item |
Cylinder Qty |
CNG Filling Volume |
CNG Filling Weight |
Total Water Volume |
Tube Skid Container Net Weight (without chassis) |
Working Pressure |
Hydraulic Test Pressure |
8tube-5100NM3 |
8pcs x OD559mm |
5100/NM3 |
3670KG |
16.16NM3 |
23310KG |
|
|
9tube-6210NM3 |
9pcs x OD559mm |
6210NM3 |
4510KG |
19.89NM3 |
28721KG |
250Bar/3600PSI |
375Bar/5400PSI |
10tube-6900NM3 |
10pcs x OD559mm |
6900NM3 |
4970KG |
22.1NM3 |
31800KG |
|
|
11tube-8000NM3 |
11pcs x OD559mm |
8000NM3 |
5700KG |
25.52NM3 |
28800KG |
|
|
12tube-8700NM3 |
12pcs x OD559mm |
8700NM3 |
6240KG |
27.78NM3 |
31016KG |
|
|
Please contact us for further details
Part C:

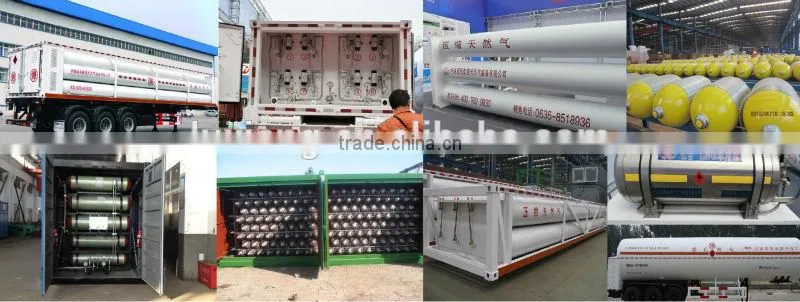

Product family:
CNG cylinders
CNG tube trailer
CNG cylinder for vehicle , CNG-1 , CNG- 2
LNG cylinders
LNG TANK
......
