Home > Transportation > Trailer > Truck Trailer > G4 CNG Tube Trailer for Transporting Between Gas Stations, More Than 8700 m3 CNG Storage

G4 CNG Tube Trailer for Transporting Between Gas Stations, More Than 8700 m3 CNG Storage

Name: G4 CNG Tube Trailer for Transporting Between Gas Stations, More Than 8700 m3 CNG Storage
Brand: LUXI
SKU: 120413409

G4 CNG Tube Trailer for Transporting Between Gas Stations, More Than 8700 m3 CNG Storage thumbnail-1

G4 CNG Tube Trailer for Transporting Between Gas Stations, More Than 8700 m3 CNG Storage photo-1

US$ 80,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, BV

Contact Supplier Request Quote Chat Now

Zhongyou Tongyong Luxi Natural Gas Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, BV

Size 12192x2438x2000mm

Max Payload 40000kgs

Place of Origin Shandong, China

Brand Name LUXI

Model Number CNGT-12tubes-8700m3

Specifications

1.CNG tube trailer, 40 feet;
2.4130X seamless steel,12tubes;
3.8700CBM,working pressure:250bar;
4.ISO11120, 668

Part one: CNG tube cascade skid container and CNG tube trailer:

CNG tube cascade skid container: 20 feet

It can be mounted on trailers to transport CNG.

Storing capacity: 8tubes-2660NM3, 9tube-2990 Nm3, 10tube-3327Nm3, 12tube-3864Nm3, etc.

Working pressure: 250bar

Hydraulic testing pressure: 375bar

Advantage: Small size and reasonable weight, it’s specially designed for CNG road transportation in weight limit areas such as downtown.

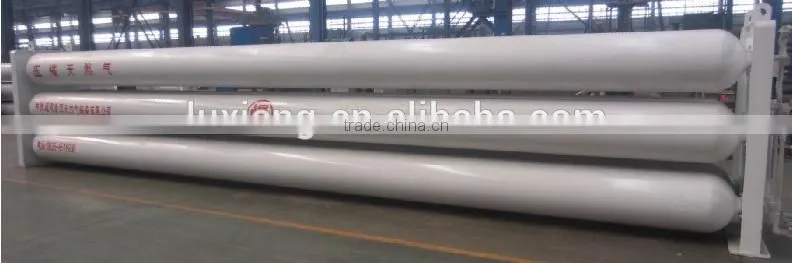

CNG tube cascade skid container: 40 feet

Filling capacity: 4 tube- 8480Nm3, 8tube-5100nm3, 9tube-6210nm3, 10tube-6900nm3, 11tube-8000nm3, 12tube- 8100nm3, 12tube -8700nm3, etc.

Working pressure: 250bar

Hydraulic testing pressure: 375bar

Advantage: It’s widely used in mother station or daughter station or places where CNG pipeline network hasn’t been built.It possesses features of mobility, large storage capacity, reasonable structure, safety operation, cost-effectiveness etc.

The tube skid container can be loaded onto the semi trailers to form mobile CNG tube trailers which can carrying CNG moving around.

Part two: Small scale CNG Mobile refueling station:

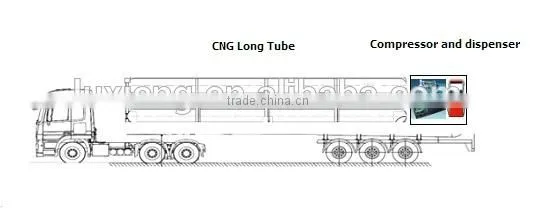

Small scale mobile CNG tube trailer: equipped with CNG compressor and CNG dispensers to fill cars directly!

Storage capacity: 600 to 8000CBM;

ISO container: 20 feet, 40 feet, etc.

Mobile, economic, convenient!

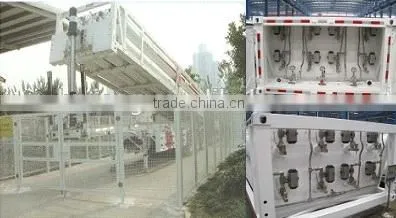

Part three: CNG daughter station and Hydraulic trailer:

Technical parameter of gas station tube trailer:

Working pressure:200bar;

CNG filling capacity:4540NM3/2933kg at 20 centigrade;

Burst testing pressure:334bar;

Woking temperature:-40 to 60 centigrade;

Dimension:12192x2438x1435mm.

Technical Parameter of gas station:

Working pressure:200bar;

Air displacement: no less than 1000NM3/h, 2000NM3/h;

Displacement is no less than 95%;

PLC control;

Continuous working;

Quick coupling transferred from one trailer to another: 3-5 minutes.

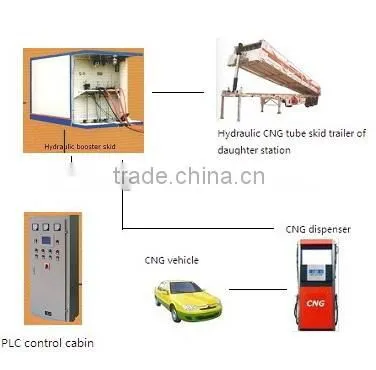

CNG hydraulic trailer is part of CNG daughter station. It can store and transport CNG to daughter station, then fill cars via gas dispensers. Working pressure 200bar, it’s same as the CNG cylinder for vehicle, less equipment and easy to operate.

Filling capacity:4540NM3 per trailer, it will take 3-5 minutes to transfer from one trailer to another.

It works together with CNG booster skid, CNG dispensers, etc, as daughter station. Filling capacity is 1000CBM or 2000CBM per hour. It fits for medium size demand of CNG consumption, such as 300 to 500 cars to be filled per day.

Part four: CNG cascade storage for gas station

CNG cascade storage system is placed at gas station to store CNG.

Working pressure:250bar

Type:1x3-2120NM3, 2x2-2830NM3, 2x3-4250NM3, 1x3-1220NM3,2x2-1630NM3, 2x3-2440NM3,

1x3-1360NM3, 2x2-1820NM3, 2x3-2722NM3 etc.

Safety valve:Taylor from USA.

Material: seamless steel tubes, 4130x, CE certified

Size: OD559x10950mm

Part five: product family:

CNG cylinders

CNG tube trailer

CNG cylinder for vehicle , CNG-1 , CNG- 2
