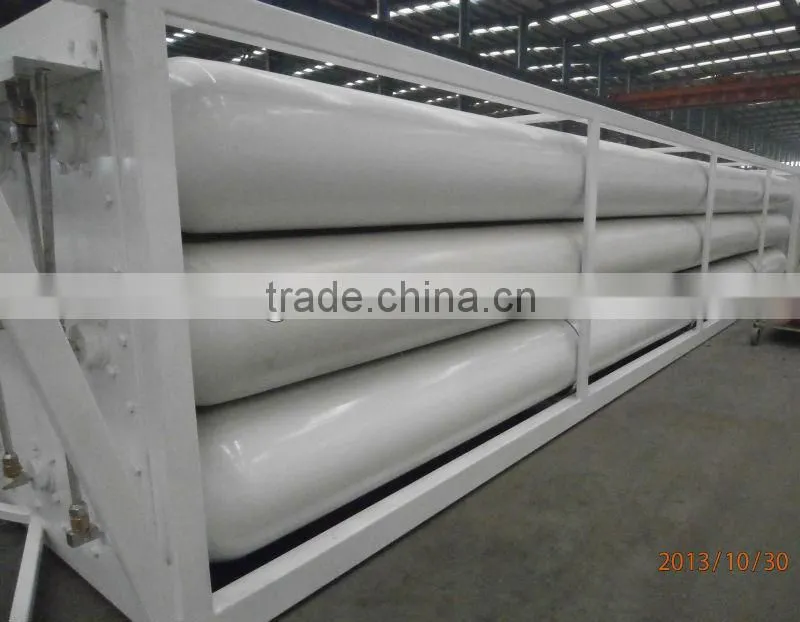

Help Center62 CNG Trailer for Gas Filling Mother Station, 12tubes,8700CBM
Related Products
-
163 CNG Semi-trailer Mounted CNG Container for Daughter Station, 870CBMUS$ 80,000 - 300,000MOQ: 1 Set -
147 Natural Gas Tanker to Transport CNG,8700M3 CNG, 12 TUBESUS$ 80,000 - 300,000MOQ: 1 Set
-
179 CNG Cylinder for CNG Trailer, 2210L, CE(TPED) CertificateUS$ 80,000 - 300,000MOQ: 1 Set
-
192 Refillable CNG Tube Trailer, 3600PSI, 8700CBM, 12TUBESUS$ 80,000 - 300,000MOQ: 1 Set
-
190 CNG Storage Trailer, 3600PSI, 8700CBMUS$ 80,000 - 300,000MOQ: 1 Set
Specifications
1.ISO11120,CNG trailer for transporting2.Filling:8700CBM,WP:250
3.Weight:31MT,steel,4130x
4.Parker valve
5.ISO,CE,ADR
Zhongyou Tongyong Luxi Natural Gas Equipment Co.,Ltd. is a manufacturer of CNG long tube skid container and a pioneer in this field in China, which ensures that we supply not only present products, but also update products, most suitable solution and in-time technical support.Any inquiry or comment from our clients is highly appreciated.
Manufacturer’s recommendation!
A new product from LUXI Co.
Lighter weight, larger capacity, CNG tube trailer!
For example:
12tubes, 8700CBM, only weight:31MT!
Much lower price than composite trailer!
You are free to worry about weight limit in your country, and reduce transporting cost!
Part A:
The tube trailer is designed specially for bulk-transportation of compressed natural gas(CNG).
Advantage:
1.Payload:8700CBM of compressed natural gas, equivalent to 6200kg of gas.
2.OD559 seamless steel tubes are selected, less tube quantity,less joints, and safer;
3.Seamless tubes are selected, close-spinning technology is adopted, no leakage and safety operation can be ensured;
4.Parker valves and other top class parts are selected to strengthen the quality;
5.5 years’ manufacturing and exporting experience, annually 800 sets production experience to ensure mature and steady products quality;
6.Quality insurance:from Shandong Special Equipment Inspection Institute, to manufacturer self inspection, to third party inspection companies(BV,SGS etc).
Item |
Cylinder Qty |
CNG Filling Volume |
CNG Filling Weight |
Total Water Volume |
Tube Skid Container Net Weight (without chassis) |
Working Pressure |
Hydraulic Test Pressure |
8tube-5100NM3 |
8pcs x OD559mm |
5100/NM3 |
3670KG |
16.16NM3 |
23310KG |
|
|
9tube-6210NM3 |
9pcs x OD559mm |
6210NM3 |
4510KG |
19.89NM3 |
28721KG |
250Bar/3600PSI |
375Bar/5400PSI |
10tube-6900NM3 |
10pcs x OD559mm |
6900NM3 |
4970KG |
22.1NM3 |
31800KG |
|
|
11tube-8000NM3 |
11pcs x OD559mm |
8000NM3 |
5700KG |
25.52NM3 |
28800KG |
|
|
12tube-8300NM3 |
12pcs x OD559mm |
8300NM3 |
6010KG |
26.52NM3 |
37000KG |
|
Our attitude:
Help you to transport green energy affordably!
Part B:
Specification:
Please contact us for further details
Part C:
Other products:
CNG storage trailers from 4000CBM to 8000CBM;
CNG storage banks for gas station;
CNG jumbo cylinders for CNG tanks;
CNG cylinders for vehicles;
LNG tankers;
LNG tanks;
CNG daughter station;
LCNG station.
