Specifications
1)300 Led Traffic Signal Light2)Low power consumption
3)Compatibility with most traffic housings and controllers
300 Led Traffic Signal Light/Led traffic light/Led traffic lamp
1.Product Summary: | ||||||||||||||

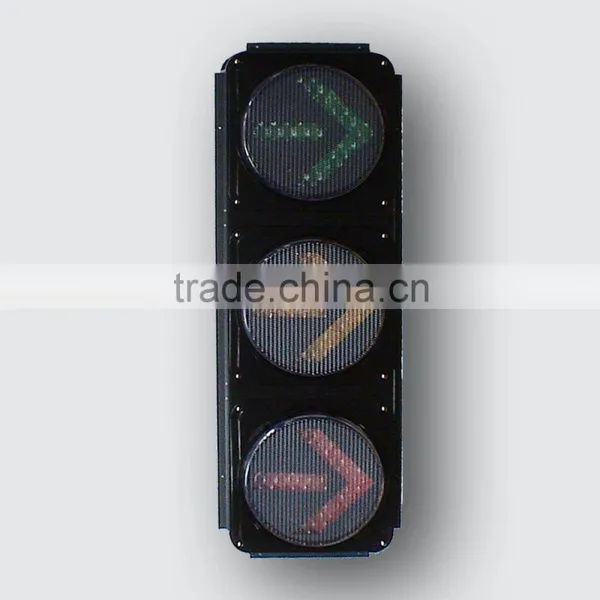

FX300-3-3A/K traffic signal head use leds as light sources, which is a today’s fashion arrow light It is made up of three-colors arrow lights with aluminium alloy housing. Diameter of optical unit is Φ300mm. | ||||||||||||||
Feature: | ||||||||||||||
This product is with unique design of honeycomb optical system. It is characterized with wide viewing angle ,uniform brightness,standard chromaticity,lower power consumption,long life time. These advantages really outstand especially during the burning sun and smog weather. | ||||||||||||||
2.Range of application: | ||||||||||||||
This light is applied for all necessary arrow traffic road junctions. | ||||||||||||||
3.Product parameter: | ||||||||||||||
Description |
Model |
Drawing Number |
Dimension |
Housing Material |
Housing Color |
|||||||||
300 arrow light |
FX300-3-3A/K |
FX300-3A/K.00.00.00 |
1166 X 466 X 420mm |
aluminium alloy |
black |
|||||||||
| ||||||||||||||
Color |
Size of Emitting Surface |
Lens Feature |
LEDS |
LED Number |
Central Light Intensity |
Optical Feature |
Voltage |
Rated Power |
Standard |
|||||
red |
Φ300mm |
Flat lens with scaly pattern |
Φ5(0.06W) |
66pcs |
>380cd |
Honeycomb lens Arrow mask |
AC176 ~ 264V |
≤15W |
GB14887 -2003 |
|||||
yellow |
Φ300mm |
Φ5(0.06W) |
66pcs |
>380cd |
≤15W |
|||||||||
green |
Φ300mm |
Φ5(0.06W) |
53pcs |
>360cd |
≤15W |
|||||||||
4.Dimension: | ||||||||||||||
| ||||||||||||||
