Home > Security & Protection > Roadway Safety > Traffic Light > Countdown Lamp WUXI Manufacturer

Countdown Lamp WUXI Manufacturer

Name: Countdown Lamp WUXI Manufacturer
Brand: Sunburst
SKU: 120415133

Countdown Lamp WUXI Manufacturer thumbnail-1

Countdown Lamp WUXI Manufacturer thumbnail-2

Countdown Lamp WUXI Manufacturer thumbnail-3

Countdown Lamp WUXI Manufacturer photo-1

Countdown Lamp WUXI Manufacturer photo-2

Countdown Lamp WUXI Manufacturer photo-3

US$ 480 - 500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Sunburst

Model Number:

DX-SX-0-D

Contact Supplier Request Quote Chat Now

Wuxi Anbang Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Sunburst

Model Number DX-SX-0-D

Specifications

Countdown lamp
Easy to install and no matainence
PC housing & IP54
OEM available & ISO9001 certified

Traffic Light

The tri-color LED countdown signal lamp is intended for indicating the remaining time to the car drivers when they drive across the street.

1. Working mode

a. The first one or two cycles is for memorizing time. The countdown function starts from the second or third cycle

b. When the red digital displays, the car should stop moving.

c. When the yellow digital displays, it means the next step is red digital. If the car intend to move across the street, pleas don’t do that. There is no enough time for you to go across the street..

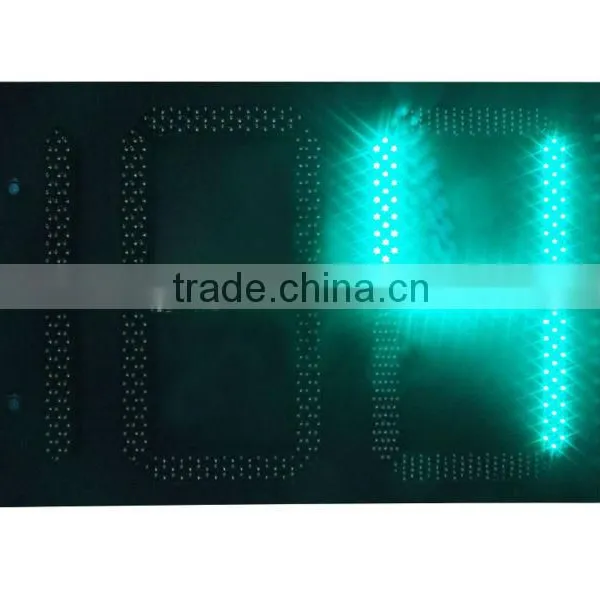

d. When the green digital displays, the car can move forward or across the street..

e. The maximum display digital is 199 for green and red. The yellow is 9.

2 .Optical Characteristics

Luminous Intensity	>3000cd/m²
Chromaticity	Red 625±5nm Yellow 590±5nm Green 505±2nm
LED numbers	Red 448pcs Yellow 400pcs Green 196pcs

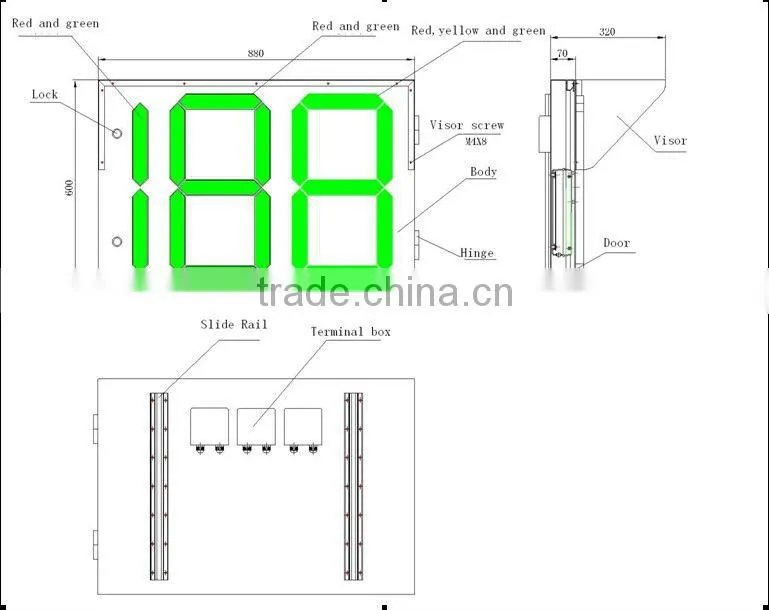

Emitting surface	880mmx600mm

3. Electrical and Mechanical Characteristics

Red(88)<18W, yellow(8)<15W, green(88)<20W 120vac or 220vac

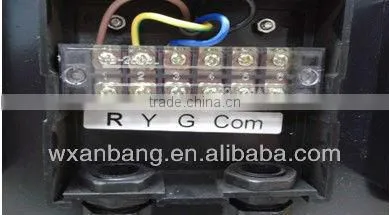

There are three terminal boxes on the back of countdown lamp. Open the box in the middle and connect the red light phase from controller to “R”, yellow light phase to “Y”, green light phase to “G”. “Com” is common terminals. Countdown lamp does not count flashing time.
