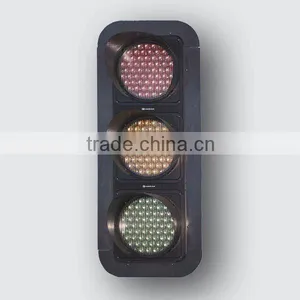

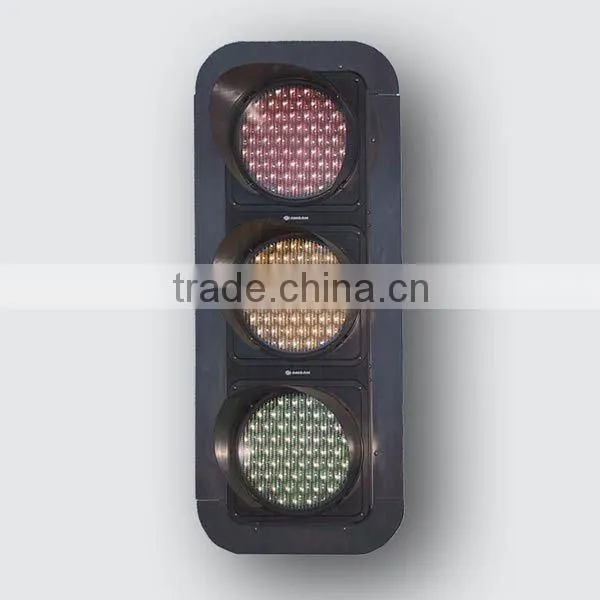

Help Center300mm Led Full Ball Traffic Light
Related Products
Specifications
1)300mm motor traffic light2)Aluminium housing traffic light
3)Wide viewing angles
1.Product Summary: | ||||||||||||||
JD1/1W300-3-3A Traffic Signal Head use LED as light source, which is a today’s fashion light ,It consists of three color lights with aluminium alloy housing,. Diameter of optical unit is Φ300mm. | ||||||||||||||
Feature: | ||||||||||||||
This light is with unique design of honeycomb optical system . It is characterized with wide viewing angle, uniform brightness,standard chromaticity, lower power consumption, long lift time. These advantages really outstand especially during in the burning sun and smog weather. | ||||||||||||||
2.Range of application: | ||||||||||||||
This light is applied for all kinds of traffic road junctions. | ||||||||||||||
3.Product parameter: | ||||||||||||||
Description |
Model |
Drawing Number |
Dimension |
Housing Material |
Housing Color |
|||||||||
300 motor traffic light |
JD1/1W300-3-3A |
JD1-300-3A.00.00.00 |
1166 X 466 X 420mm |
alluminium alloy |
black |
|||||||||
| ||||||||||||||
Color |
Size of Emitting Surface |
Lens Feature |
LEDS |
LED Number |
Central Light Intensity |
Optical Feature |
Voltage |
Rated Power |
Standard |
|||||
red |
Φ300mm |
Flat lens with scaly pattern |
Φ5(0.06W) |
85 pcs |
>1210cd |
Honeycomb lens |
AC176 ~ 264V |
≤15W |
GB14887 -2003 |
|||||
yellow |
Φ300mm |
Φ5(0.06W) |
85 pcs |
>960cd |
≤15W |
|||||||||
green |
Φ300mm |
Φ5(0.06W) |
85 pcs |
>1000cd |
≤15W |
|||||||||

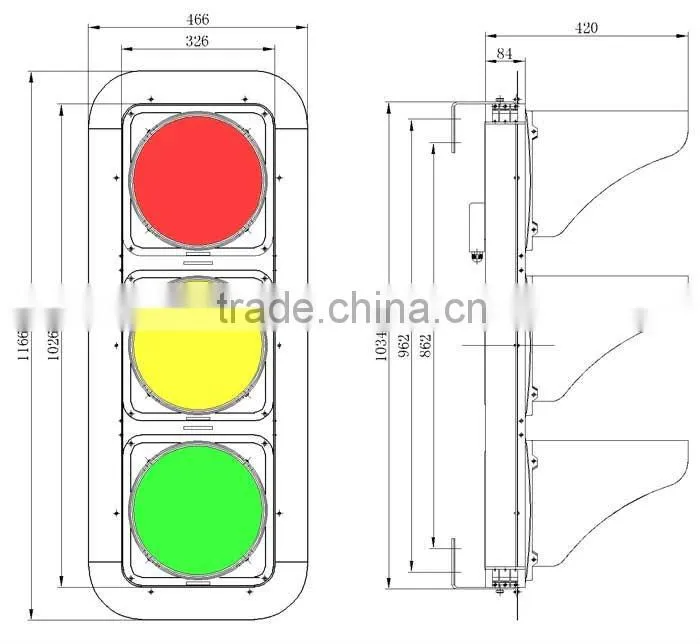

4.Dimension: | ||||||||||||||
| ||||||||||||||
