Help Center200mm Dynamic PED Lamp
Related Products
-
200mm Traffic Dynamic Pedestrian LightNegotiableMOQ: 10 Sets -
200mm Led Bicycle Traffic LightNegotiableMOQ: 5 Sets
-
LED Pedestrian Lamp-12 Inch Led Traffic Signal LightNegotiableMOQ: 5 Pieces
-
LED Countdown Traffic LightNegotiableMOQ: 2 Sets
-
PC Housing Led Traffic Light-LED Pedestrian LampUS$ 150 - 170MOQ: 5 Sets
Led traffic signal light/Led traffic light/Led traffic lamp
Features & Benefits
-
Operating at the temperature of -40℃ to +74℃
Retrofit design & UV stabilized shell
Wide viewing angles& low power consumption
Even brightness & standard chromatogram
Up to 10 times longer lifetime than incandescent lamp
Compatibility with most traffic housings and controllers
Product Characteristics:
Model
Number
Size
(mm)
Color
nm
Luminous
Intensity
Voltage
Range
Power(w)
Typical
Lens features
Power
Factor
T.H.D.
Red Man
Yellow countdown lamp
200
44pcs
64cs
>150cd
95v-145v-
6
Clear Lens
Pixel look
>0.9
<20%
Dynamic Green Man
200
68pcs
>150cd
95v-145v-
9
Clear Lens
Pixel look
>0.9
<20%

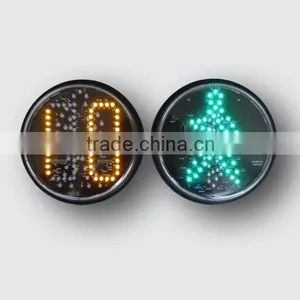

They are red pedestrian with yellow countdown and dynamic green pedestrian. Yellow countdown lamp displays green pedestrian time.
The first one or two cycles are for memorizing time. The countdown function starts from the second or third cycle.
For the yellow digital, the maximum display digital is 99.
Note: 220vac, 12vdc or 24vdc are available.
10pcs of lamp modules are in one carton. The weight is 9.0kgs. Carton’s measurement is 25cm*46cm*52cm.
