Specifications
1)Two Height2)300mm led traffic lights
3)led traffic signal lamp
- Low power consumption
- Operating at the temperature of -40 to +74
- Retrofit design UV stabilized shell
- Wide viewing angles
- Even brightness standard chromatogram
- Less than 1% light loss with single LED failure
- Up to 10 times longer lifetime than incandescent
- Compatibility with most traffic housings and controllers
- Total weight: Weight 108 kg
Features:

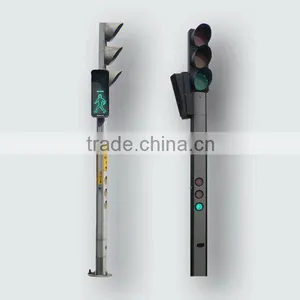

A.300mm traffic lights
LED lamps can be EN12368 standard or ITE standard, Which depends on your choice.
(1) Housing materialAluminum alloy
2 DimensionΦ300mm,
3 Luminous Intensity Red and yellow 600cd,Green400cd
4 Chromaticity
Red 625±5nm
Yellow 590±5nm
Green 505±4nm
5 Power Supply AC220V±20% 50Hz
6 Power ≤15W
7 Power Factor ≥0.9
8 Operation Temp. -40~+85
9Humidity ≤90%
10Life Time 50000h
11Weight ≤15kg
12)Temperature Range:Class B
(13) Impact Resistance: Class IR2
(14) Ingress:IP54
B.Countdown Pedestrian
Green countdown and green pedestrian
Red light band and red Pedestrian
1 Intensity: Conform to GB14887-2003, 5.3.2.6
2 Brightness Red4000cd/m2 Green4000cd/m2
3 Chromaticity Conform to GB14887-2003, 5.5.2.
4 Emitting surface 300mm×220 mm
5 Voltage AC220V±20% 50Hz
6 Power ≤15W
7 Voice: 65dB
8 Operation temperature -40~+75
9 Humidity 5%--95%
10 Life time 50000h
11 IngressIP54
12Weight ≤7.5kg
13 Housing MaterialAluminum alloy
C.100mm LED traffic lights
(1) 100mm lights can be full ball, arrow or bicycle lamps.
2 DimensionΦ100mm,
3 Luminous Intensity Red and yellow Green90cd
4 Chromaticity
Red 625±5nm
Yellow 590±5nm
Green 505±4nm
5 Power Supply AC220V±20% 50Hz
6 Power ≤5W
7 Power Factor ≥0.9
8 Operation Temp. -40~+85
9Humidity ≤90%
10Life Time 50000h
D. Pole Part
(1) The pole is made of hot-galvanizing iron and aluminum.
(2) The pole has two heights. One is 300cm, the other is 270cm.
