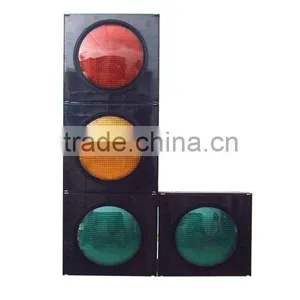

LED Traffic Signal Light/Led traffic light/Led traffic lamp
Features and Benefits
- Conform to EN12368 standard
- Low power consumption
- Retrofit design UV stabilized shell
- Wide viewing angles
- Even brightness standard chromatogram
- Up to 10 times longer lifetime than incandescent
- Compatibility with most traffic controller
Product Characteristics:
Product name |
Product model |

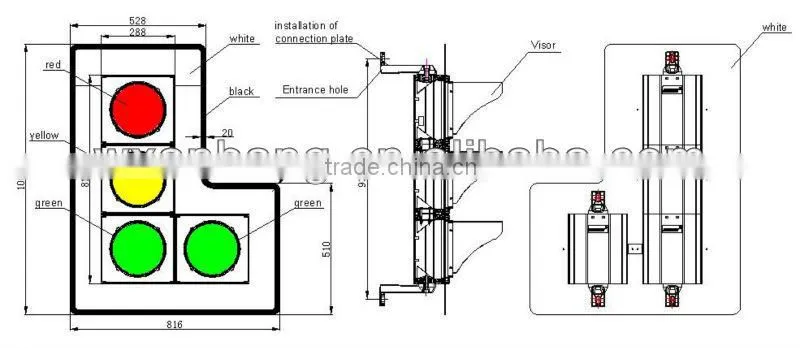

Product drawing No. |
Product size |
Housing material |
Housing color |
200mm traffic head |
JD200-3-3D |
JD200-300D.00.00 |
1044X342x368mm |
Polycarbonate housing |
Black or yellow |
Color |
Emitting surface size |
Lens features |
Characteristics of LED |
Number of LED |
Luminous intensity |
Light distribution characteristics |
Voltage |
Rated power |
Meet standard |
Red |
Φ200mm |
Fresnel lens |
Hi-flux LEDs |
3pcs |
>400cd |
Incandescent look |
220vac |
≤12W |
EN12368 |
yellow |
Φ200mm |
Fresnel lens |
Hi-flux LEDs |
3pcs |
>400cd |
Incandescent look |
≤11W |
||
green |
Φ200mm |
Fresnel lens |
Hi-flux LEDs |
3pcs |
>400cd |
Incandescent look |
≤13W |
Color |
Power factor |
Total harmonic distortion |
Phantom class |
Operation temperature |
Chromaticity |
IP (LED Modules) |
IP (Traffic head) |
Red |
>0.90 |
≤20% |
5 |
-40°C~+80°C |
625nm±5nm |
IP65 |
IP55 |
yellow |
>0.90 |
≤20% |
5 |
-40°C~+80°C |
590nm±5nm |
IP65 |
IP55 |
green |
>0.90 |
≤15% |
5 |
-40°C~+80°C |
505nm±4nm |
IP65 |
IP55 |
