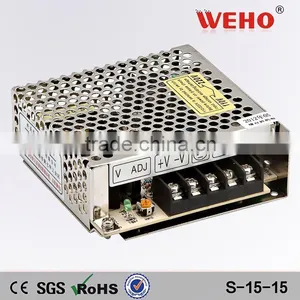

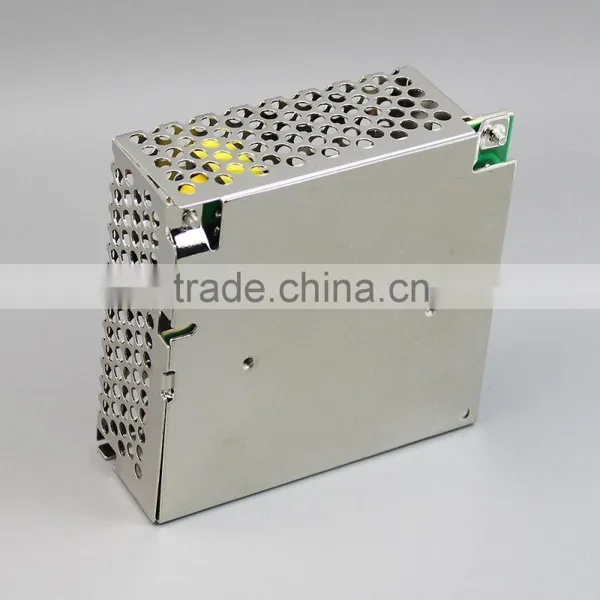

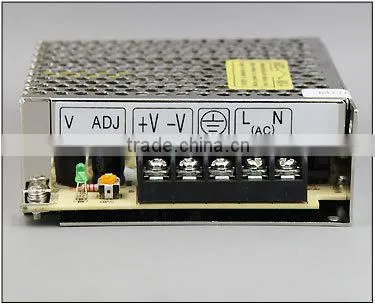

Factory outlet 15w 5v 3a industrial switching power supply
| Model | S-15-5 | S-15-12 | S-15-1515 | S-15-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Rated output current | 3A | 1.3A | 1A | 0.7A |
| Output current rage | 0-3A | 0-1.3A | 0-1A | 0-0.7A |
| Wave and noise | 50mVp-p | 50mVp-p | 75mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 65% | 68% | 70% | 72% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | AC100~240V 47~63Hz;240~370VDC | |||
| Input current | 0.5A/115V0.25A/230V | |||
| AC INnrush current | Cold-start current 15A/115V 30A/230V | |||
| Overload proctection | 105%~150% Tpye:Foldback current limiting Reset: auto recovery | |||
| Over-voltage protection | ||||
| Setup rise hold up time | 200s,100ms,30ms | |||
| Withstand voltage | Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC | |||
| Isolation resistance | Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ | |||
| Working temperature | -10°C~+50°C | |||
| Overall dimension | 98*97*35mm | |||
| Safety standards | Meet ULGB4943 UL60950 EN60950 requirement | |||
| EMC standards | Meet EN55022 GB9254 class A requirement | |||
| Weight | 0.3Kgs |
|||
The advantages
1. High power density,high efficiency,long life and high reliability
2. No Load power consumption<0.5W
3. 100% full load burn-in test
4. Universal AC input range
5. All using 105℃ long life electrolytic capacitors.
6. PCB soldering side with conformal coating
7. Suitable for critical applications
8. Output protections:OLP/OVP/SCP
9. CE RoHS ISO9001 approved
10. 2 years warranty
Customized Logo printing
Cusomized logo is free of charge for quantity over 500pcs
Customized packaging
Customized packaging is supported for quantity over 5000pcs
1.Voltage
• Output XXV on the switching power supply. XX is the voltage.
E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............
2.Current:
• Output XXA on switching power supply . XX is the current.
E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......
3.Quality
• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.
4.Delivery
• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements
5. Guarantee period
• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.
6. Applications
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
7.Distributor
We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
