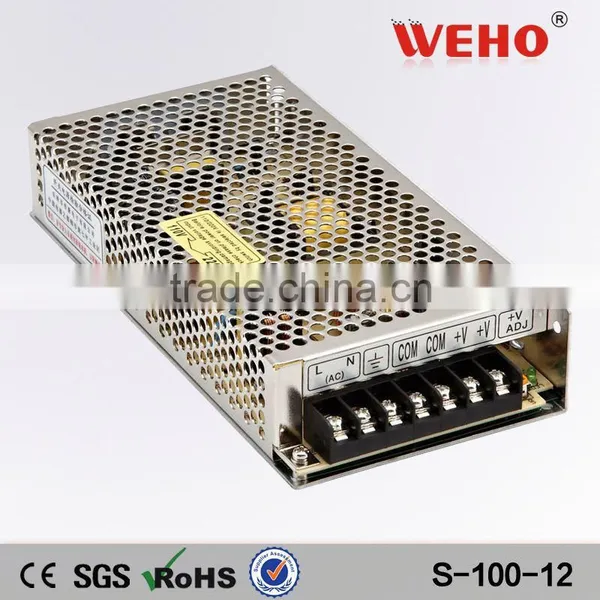

CE RoSH Approved Power Supply For Tv Plasma

Name: CE RoSH Approved Power Supply For Tv Plasma
Brand: WeHo
SKU: 120503393

US$ 7 - 10 MOQ: 1 Piece

Key Specifications

Brand Name:

WeHo

Model Number:

S-100-12

Output Power:

51 - 100W

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name WeHo

Model Number S-100-12

Output Power 51 - 100W

Output Type Single

Output Voltage 12v

Output Frequency 47-63hz

Output Current 8.3a

Power Supply For Tv Plasma

Power Supply For Tv Plasma

1.Specification:

Model	S-100-3	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
DC output voltage	3V	5V	7.5V	125V	15V	24V	27V	48V
Output voltage range(Note:2)	2%	2%	1%	1%	1%	1%	1%	1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise(Note:3)	150mV	150mV	150mV	150mV	150mV	150mV	200mV	240mV
Inlet stability(Note:4)	0.5%	0.5%	0.5%	0.3%	0.3%	0.2%	0.2%	0.2%
Load stability(Note:5)	1%	1%	0.5%	0.3%	0.3%	0.2%	0.3%	0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	81%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85~3V	4.75~5.5V	6.75~8.25V	10.8~13.2V	13.5~16.5V	21.6~26.4V	26~32V	43.2~52.8V
Input current	2.4A/115V 1.2A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150%		150%~200%	105%~150%
Overload protection	Type: Output shutdown Reset: Recycle AC ON/OFF
Temperature coefficient	0.03%/c(0~50c)
Setup, rise , hold up time	200ms,100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10c~+60c(Refer to output derating curve), 20%~90%RH
Weight	0.65Kgs
Safety standards	Meet UL 1012 requirementNot apply forr the mark
EMC standards	Meet FCC PART 15 J Conduction class B
