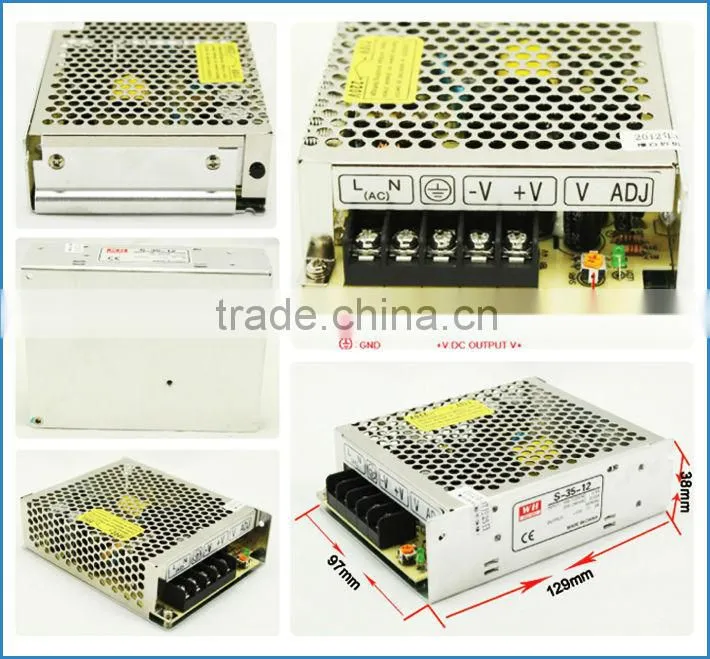

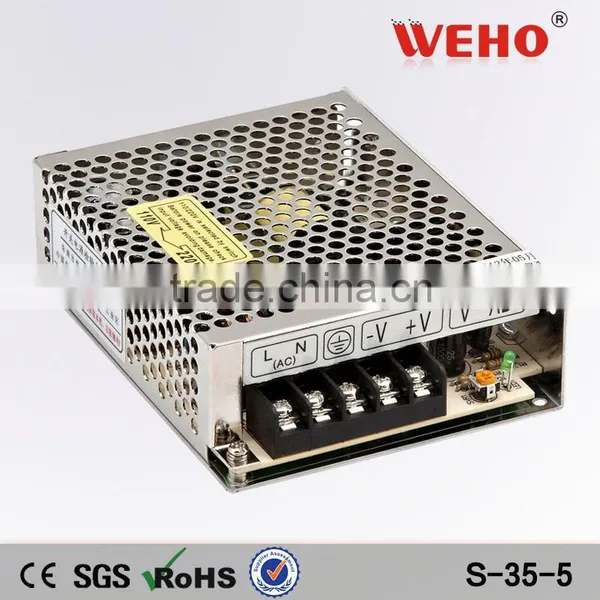

Whose Sale CE RoHS Approved Power Supply for Lcd tv

Name: Whose Sale CE RoHS Approved Power Supply for Lcd tv
Brand: WeHo
SKU: 120504491

US$ 4.99 - 6.99 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WeHo

Model Number:

S-35-5

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WeHo

Model Number S-35-5

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 110V/220V

Output Voltage 5V

Output Frequency 50Hz

Output Current 7A

power supply for lcd tv

1.power supply for lcd tv Specification

MODEL		S-35-5	S-35-9	S-35-12	S-35-15	S-35-24
OUTPUT	DC VOLTAGE	5V	9V	12V	15V	24V
	VOLTAGE TOLERANCE	2%	1%	1%	1%	1%
	RATED CURRENT	7A	3.6A	3A	2.4A	1.5A
	CURRENTRANGE	0-7A	0-3.6A	0-3A	0-2.4A	0-1.5A
	RATED POWER	35W	32.4W	36W	36W	36W
	RIPPLE &NOISE(MAX)	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	DC VOLTAGEFRE QUENCY RANGE	+10,-5%	10%	10%	10%	10%
	SETUP,RISE,HOLD TIME	200ms,100ms,300ms
INPUT	VOLTAGERANGE	85~132 VAC/170~264VACselected47~63 Hz 240~370VDC
	AC CURRENT	0.8 A/115 V 0.45A/ 230 V
	EFFICIENCY	70%	72%	76%	78%	78%
	INRUSH CURRENT	Cold start 18A/115V 36A/230V
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVERLOAD PROTECTION	110%~160% cutoff output. Fold back current limiting, recovers automatically
	OVER-VOLTAGE PROTECTION	..
	HIGH TEMPERATURE PROTECTON	..
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10~+60 20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20~+85 10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1 cycle,period for 60min,each alongX,Y,Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M
STANDARDS	SAFETY STANDARDS	Design refer to UL1012
STANDARDS	EMC STANDARDS	Design refer to FCC part15 J Conduction Class B
OTHERS	WEIGHT	0.41Kg
OTHERS	PACKING	30pcs/13.5Kg/0.86CUFT
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1f & 47f parallel capacitor.
