CE RoHS 100w 24vdc Output 220vac Input ac dc Power Supply

Name: CE RoHS 100w 24vdc Output 220vac Input ac dc Power Supply
Brand: weihao
SKU: 120504569

US$ 2 - 9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

LPV-100-24

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weihao

Model Number LPV-100-24

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47-63hz

Output Current 4.5A

1.Data sheet : ac dc power supply

we can stick customers' label as long as you can purchase enough quantity in a time.

Model	LPV-100-12	LPV-100-24
DC output voltage	12V	24V
Output voltage error	1%	1%
Rated output current	8.3A	4.17A
Output current rage	0-8.3A	0-4.17A
Wave and noise	80mVp-p	100mVp-p
Inlet stability	0.5%	0.5%
Load stability	0.5%	0.5%
DC output power	100W	100W
Efficiency	85%	86%
AC input voltage range	170-264VAC
Input current	1.2A/115V 0.55A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.75mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode,recover automatically
Over voltage protection	13~16V	28~32V
	Protection:Shut down output voltage
Short circuit protection	Protection:Hiccup mode
Temperature coefficient	0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH

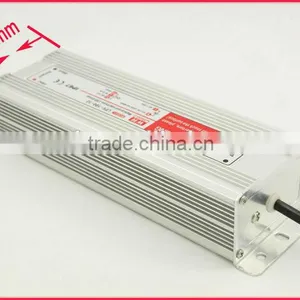

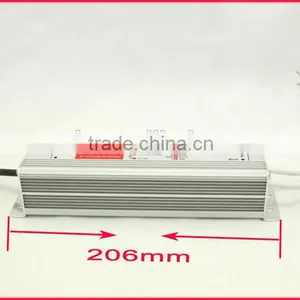

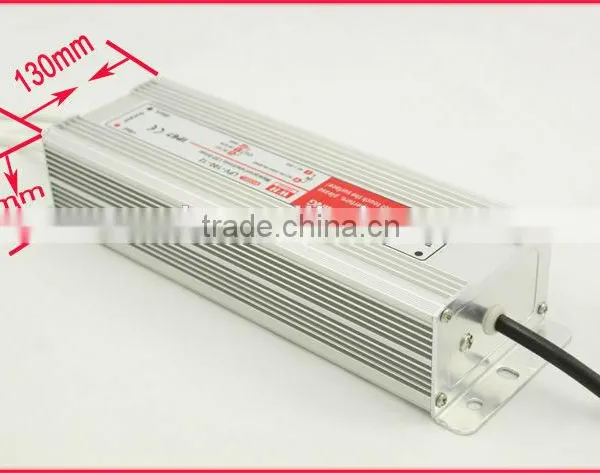

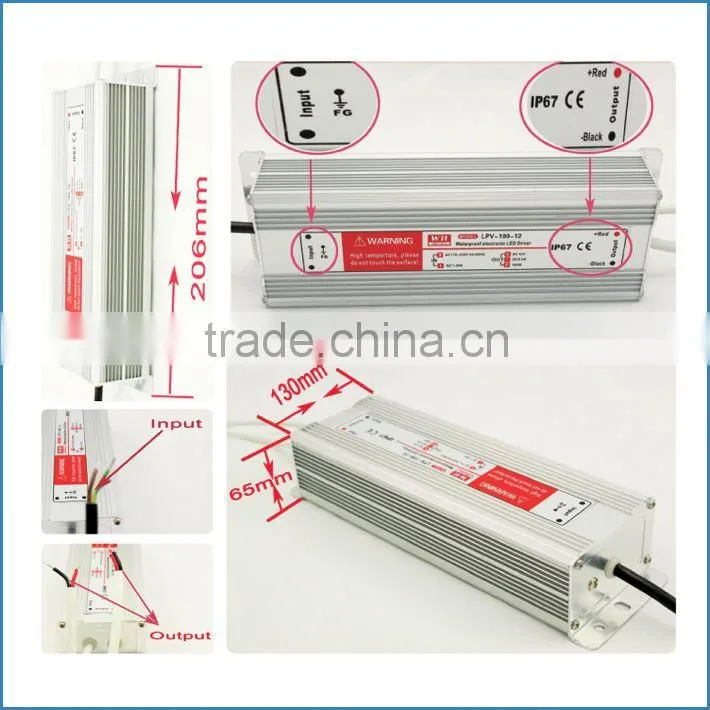

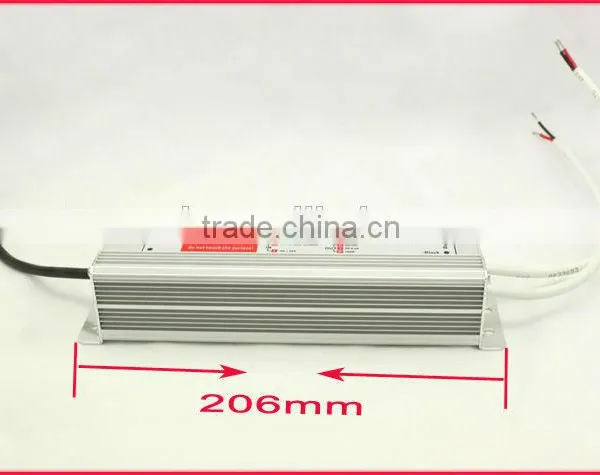

Overall dimension	206x130x65mm
Weight	2.2KG
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
