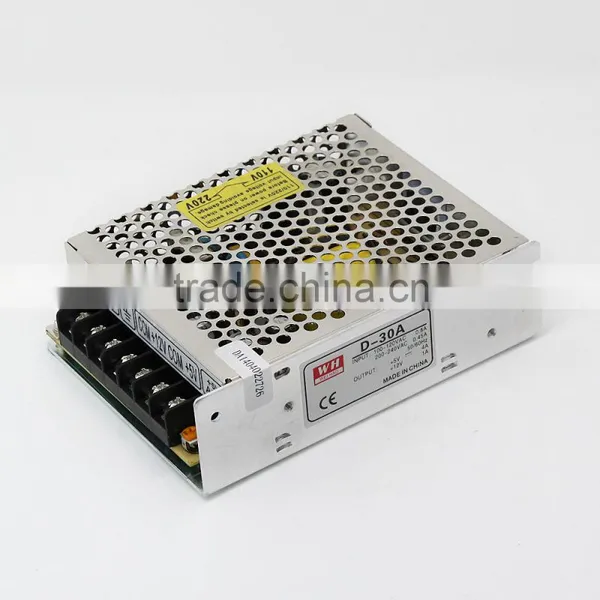

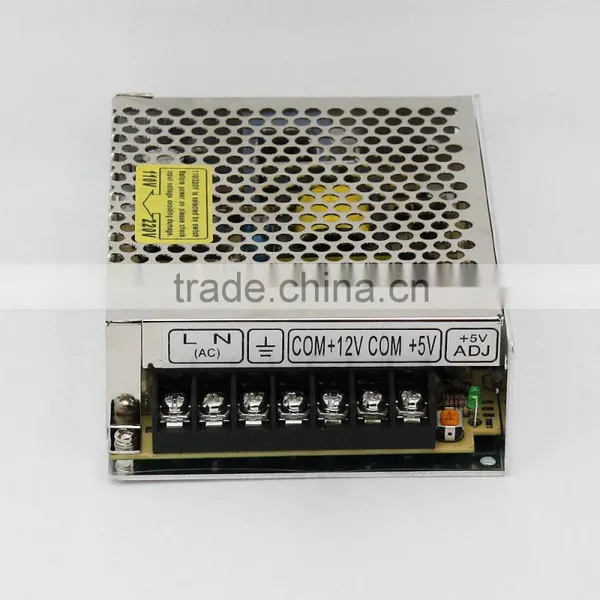

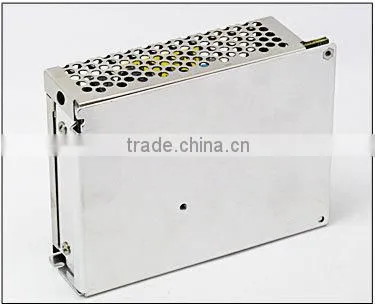

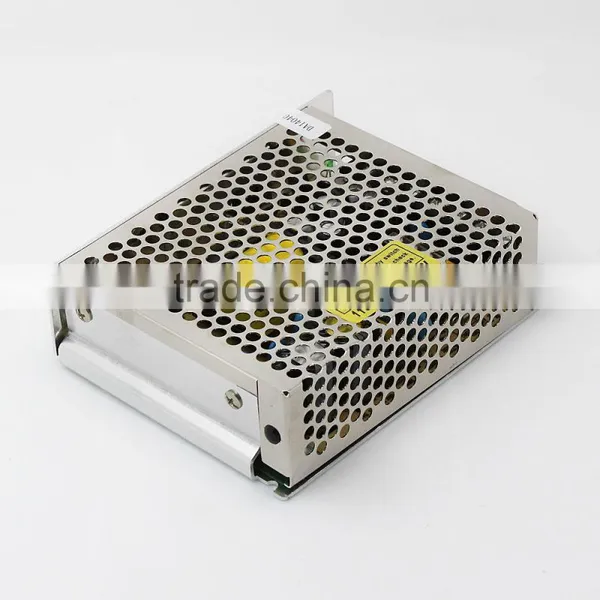

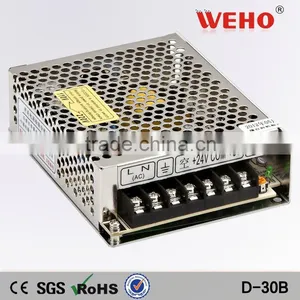

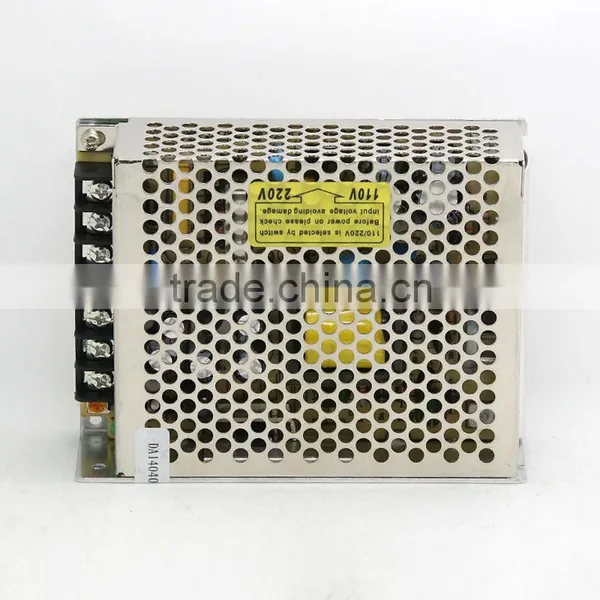

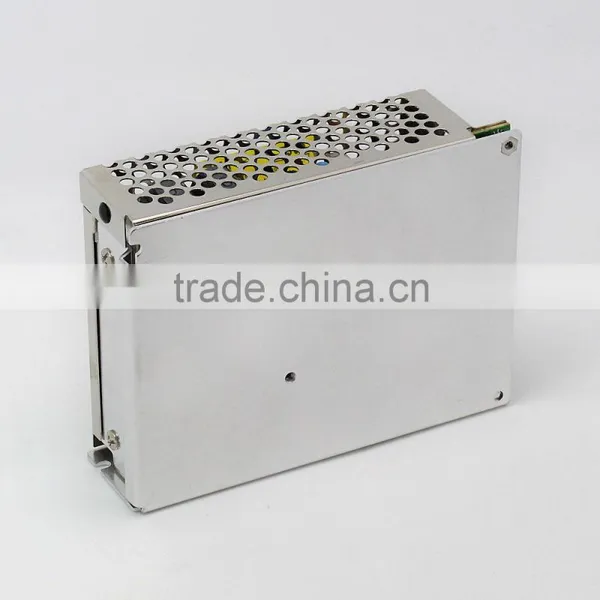

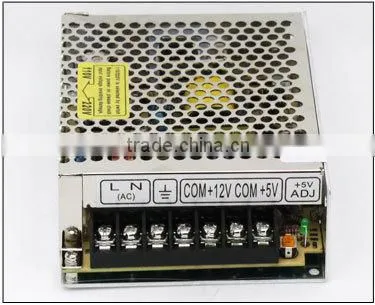

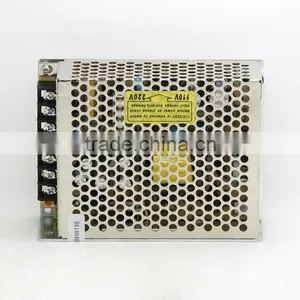

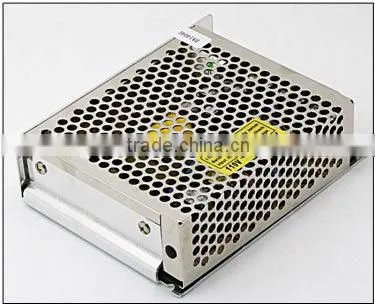

High Efficiency 30w Dual Output Switching Power Supply 12v Smps

Name: High Efficiency 30w Dual Output Switching Power Supply 12v Smps
Brand: WeHo
SKU: 120504763

US$ 4.99 - 6.99 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WeHo

Model Number:

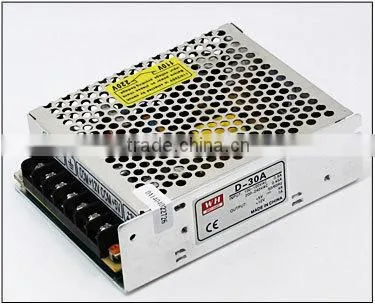

D-30A

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai/Guangzhou/Huangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WeHo

Model Number D-30A

Output Power 1 - 50W

Output Type Dual

Input Voltage 220V

Output Voltage 5V 12V

Output Frequency 50HZ

Output Current 2.2A 1A

High Efficiency 30w dual output switching power supply 12v smps

1.Specification:

MODEL		D-30A		D-30B
		CH1	CH2	CH1	CH2
OUTPUT	DC VOLTAGE	5V	12V	5V	24V
	VOLTAGE TOLERANCE	2%	+3,-7%	2%	+3,-5%
	RATED CURRENT	4A	1A	2.2A	1A
	CURRENTRANGE	0.5-4A	0.1-1A	0.5-4A	0.1-1A
	RATED POWER	32W	32W	35W	35W
	RIPPLE &NOISE(MAX)	50mVp-p	100mVp-p	50mVp-p	100mVp-p
	DC VOLTAGEFRE QUENCY RANGE	CH1+10,-5%	CH1+10,-5%	CH1+10,-5%	CH1+10,-5%
	SETUP,RISE,HOLD TIME	200ms,50ms,30ms
INPUT	VOLTAGERANGE	85132 VAC/170264VACselected by switch 4763 Hz120370VDC
	AC CURRENT	0.8A/115 V0.45A/ 230 V
	EFFICIENCY	72%	72%	74%	74%
	INRUSH CURRENT	Cold start18A/115V36A/230V
	LEAKAGE CURRENT	0.5mA/240VAC
PROTECTION	OVERLOAD PROTECTION	105%150%Fold back current limiting, recovers automatically
	OVER-VOLTAGE PROTECTION
	HIGH TEMPERATURE PROTECTON	...
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10+5020%90 %RH
	STORAGE TEMP.& HUMIDITY	-20+8510%95 %RH
	VIBRATION	10500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P1.5KVACI/P-FG1.5KVACO/P-FG0.5KVAC
	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG500VDC/100M
STANDARDS	SAFETY STANDARDS	Design refer to UL1012
	EMC STANDARDS
OTHERS	WEIGHT	0.4Kg
	PACKING	45pcs/19Kg/1.2CUFT
