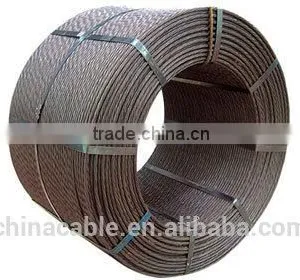

High Quality GSW Galvanized Steel Wire
What are the advantages of Galvanized Steel Wire?
Applications:
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable for field-erected aerial cable.
Specifications:
SURAL steel strand meets or exceeds the following ASTM specifications:
A-363 Zinc-Coated (Galvanized) Steel Overhead Ground
Wire Strand
A-475 Zinc-Coated Steel Wire Strand
Construction:
Concentrically stranded galvanized steel strand. Available in classes "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Available in five grades of strength: common, Siemens-Martin, high-strength, utilities, and extra-high-strength. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Specifications:
|
Number of wires in strand |
Stee wire diameter mm |
Norminal diameter of the strand mm |
The cross section area of strand mm 2 |
Nominal tensile streng of Gal.steel wire Mpa |
Approximate Weight of stand per Kg/100M |
||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| Breaking strength of strand KN≥ | |||||||||
| 1×7 | 1.60 | 4.8 | 14.07 | 16.53 | 17.87 | 19.28 | 20.68 | 22.09 | 11.17 |
| 1.80 | 5.4 | 17.81 | 20.93 | 22.62 | 24.40 | 26.18 | 27.96 | 14.14 | |
| 2.00 | 6.0 | 21.99 | 25.84 | 27.93 | 30.13 | 32.32 | 34.52 | 17.46 | |
| 2.20 | 6.6 | 26.60 | 31.26 | 33.78 | 36.44 | 39.10 | 41.76 | 22.77 | |
| 2.30 | 6.9 | 29.08 | 34.17 | 36.93 | 39.84 | 42.75 | 45.66 | 23.09 | |
| 2.60 | 7.8 | 37.17 | 43.60 | 47.20 | 50.92 | 54.63 | 58.30 | 29.51 | |
| 2.90 | 8.7 | 46.24 | 54.33 | 58.72 | 63.36 | 67.97 | 72.60 | 36.71 | |
| 3.00 | 9.0 | 49.48 | 58.14 | 62.84 | 67.79 | 72.74 | 77.68 | 42.38 | |
| 3.20 | 9.6 | 56.30 | 66.15 | 71.50 | 77.13 | 82.76 | 88.39 | 44.70 | |
| 3.50 | 10.5 | 67.35 | 79.14 | 85.85 | 92.27 | 99.00 | 105.74 | 53.48 | |
| 3.80 | 11.4 | 79.39 | 93.28 | 100.82 | 108.76 | 116.70 | 124.64 | 63.04 | |
|
Number of wires in strand |
Stee wire diameter mm |
Norminal diameter of the strand mm |
The cross section area of strand mm 2 |
Nominal tensile streng of Gal.steel wire Mpa |
Approximate Weight of stand per Kg/100M |
||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| Breaking strength of strand KN≥ | |||||||||
| 1×19 | 1.60 | 8.0 | 38.2 | 44.88 | 48.51 | 52.38 | 56.15 | 59.97 | 30.40 |
| 1.80 | 9.0 | 48.35 | 56.81 | 61.40 | 66.24 | 71.07 | 75.91 | 38.49 | |
| 2.00 | 10.0 | 59.69 | 70.14 | 75.81 | 81.77 | 87.74 | 93.71 | 47.51 | |
| 2.20 | 11.6 | 72.22 | 84.86 | 91.71 | 98.94 | 106.16 | 113.39 | 56.69 | |
| 2.30 | 11.5 | 78.94 | 92.75 | 100.25 | 108.15 | 116.04 | 123.94 | 62.84 | |
| 2.60 | 13.0 | 100.88 | 118.53 | 125.12 | 138.20 | 148.29 | 158.38 | 80.30 | |
| 2.90 | 14.5 | 125.50 | 147.46 | 159.38 | 171.93 | 184.48 | 197.03 | 99.90 | |
| 3.00 | 15.0 | 134.30 | 157.80 | 170.56 | 183.99 | 197.42 | 210.85 | 105.43 | |
| 3.20 | 16.0 | 152.81 | 179.55 | 194.06 | 209.35 | 224.63 | 239.91 | 121.64 | |
Equipments:
Exhibition:
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facipty has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facipty in Xiaodian Industry Park.,Xinxiang, Henan ,China.
2. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS.
3.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Austrapa, etc.
4. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
5. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
6. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
7. Do you supply the customers with installation service in foreign country ?
We don’t have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
8. Can't find what we're looking for in your catalogue?
Call one of our experienced sales reps at 0086 371 68665329. They can quote you on any type of products you need, or you can send your inquiry and question to our email.
