Automatic edible oil refining machine
It has four vessels make up the refining machine.All four composed of carbon steel vessel and
inner stainless steel screw tube.deacidification-Degumming -decoloration--deodorization.
---First two use to deacidification and degumming. inject condcution oil into screw tube,add oil,
water and alkali.By chemical reaction, acid and gum become sediment separating from oil.
---Then use oil pump absorb oil to decoloration vessel, injecting water steam from the bottom
ejectinginner air,conduction oil form the top,to get vaccum setting and heat oil,add carclazyte to
bleach oil, it's called decoloration.
---Then use oil pump absorb oil to filter for filting carclazyte from oil.
---Then absorb oil to deodorization vessel,injecting steam from the bottom and conduction oil
from top,stink go away up together will steam separating form heated oil, called deodorization.
---Finally, into next machine for dewaxing.
Capacity |
Power Consumption/h |
Clay % |
WeightKg |
Size( m ) |
1--5t/day |
18 |
2-5 |
5500 |
5.0×1.0×2.9 |
6--10t/day |
22 |
2-5 |
7500 |
6.0×1.2×2.9 |
11--20t/day |
30 |
2-5 |
10000 |
8.0×1.5×2.9 |
Advantage: a . After refining the impurity of oil must be less than 0.2% ;
b. Recycling system save power and money ;
c. Lower oil waste.
We could supply related machinery. like grain processing machine, oil press, oil filter, oil packing machine,etc.

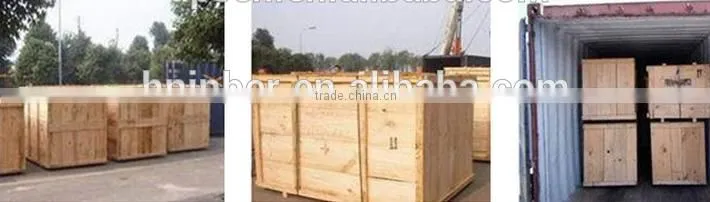

We could arrange shippment by sea, by air, by express.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self
30% By T/T asdeposit to start order.
70% as balance when offering copy B/L.
Any interest, pls contact with me freely.
