Needle Roller Bearing NA4914 NA5914 NA6914 High Precision High Quality

Needle Roller Bearing NA4914 NA5914 NA6914 High Precision High Quality thumbnail-1

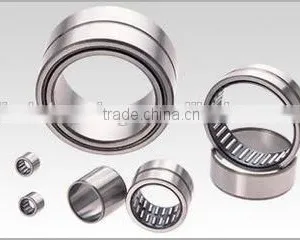

Needle Roller Bearing NA4914 NA5914 NA6914 High Precision High Quality thumbnail-2
Needle Roller Bearing NA4914 NA5914 NA6914 High Precision High Quality photo-1

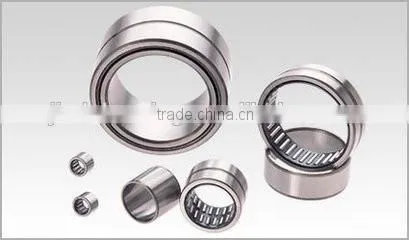

Needle Roller Bearing NA4914 NA5914 NA6914 High Precision High Quality photo-2
US$ 0.1 - 20 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Q@J
Bore Size:
5, 9
Outside Diameter:
10, 12.7
Contact Supplier Request Quote Chat Now
Qingdao Jiade Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Q@J
Bore Size 5, 9
Outside Diameter 10, 12.7
Model Number NKI70/35
Precision Rating P0 P6 P5 P4 P2
Seals Type Open 2RS
Number of Row Single Row
Place of Origin China
Production

NKI70/35 Needle Roller Bearing Modles

 Shaft diameter Bearing Modle weight  Dimension Rated load
Mass
Shaft Bearing Designation Approximate value BoundaryDimensions BasicLoadRating Limiting Speed
Diameter     Approx d Fw D B      Oil
Dynamic Static
mm CurrentCode OriginalCode g mm N rpm
5 NA495   7 5   13 10 2670 2350 34000
NA495TN   7 5   13 10 2670 2350 34000
6 NA496   9 6   15 10 3150 3000 32000
7 NA497   12 7   17 10 3600 3650 30000
8 NKI8/16     8 14 25 16 12400 11300 21500
NA498   16 8   19 11 4300 3950 28000
9 NKI9/12   16.6 9 12 19 12 6200 7000 21700
NA499   17 9   20 11 4850 4900 26000
NKI9/16   21.9 9   19 16
10 NKI10/16   27.3 10 14 22 16 9800 10500 19650
NA4900 4524900 21 10 14 22 13 8000 9000 23700
NA6900 6534900 38.4 10 14 22 22 9000 11000 23700
12 NA4901 4524901 25.1 12 16 24 13 9000 10800 20000
NKI12/20   39 12 16 24 20 14000 18400 21000
NA6901 6534901 44.5 12 16 24 22 6000 21600 20000
NKIS12   58 12 18 30 16 16000 17000 20000
NA12X32X15V     12   32 15
15 NKI15/16   38 15 19 27 16 8800 12800 19100
NKI15/20   45.7 15 19 27 20 12300 19000 19100
NA4902 4924902 32 15 20 28 13 6400 9000 18000
NA6902 6534902 61.6 15 20 28 23 13100 20900 18000
NKIS15   90 15 22 35 20 23500 24000 17000
NA5902   52 15 20 28 18
NAI53212     15   32 12
74802 74802   15   36 25.4
16 NKIS16     16   28 16 13000 17400 22000
NA16X36X24     16   36 24
17 NKI17/16   41.1 17 21 29 16 13000 18200 20000
NA4903 4544903 32.8 17 22 30 13 7000 10000 17000
NA6903 6534903 68.2 17 22 30 23 14400 24900 17000
NA5903   56 17 22 30 18 15200 21700 18000
NA17     17   37 20
20 NKI20/16   48.5 20 24 32 16 10800 17000 16700
NA4904 4524904 70.2 20 25 37 17 21000 25000 17000
NKIS20   119 20 28 42 20 28000 35500 15000
NA6904 6254904   20 25 37 30 36000 51000 17000
NA5904     20 25 37 23
22 NKI22/16   50 22 26 34 16 15300 23600 17000
NA49/22   76 22 28 39 17 22000 29500 15000
NA69/22   130 22 28 39 30 37500 55000 15000
NA223934     22 28 39 34
23 NA2020     23   42 22
25 NKI25/30   115 25 29 38 30 31500 56000 14000
NA4905 4524905 76 25 30 42 17 23600 31500 14000
NA6905 6534905 138 25 30 42 30 29000 59000 14000
NKIS25   160 25 32 47 22 32000 55000 13000
  F-208277   25 32 47 22
NKl25/20     25 29 38 20 21900 34000 15000
NA5905   139 25 30 42 23 30500 43000 13000
28 NA49/28 45449/28 98 28 32 45 17 24000 33500 14000
NA69/28   170 28 32 45 30 40500 63000 14000
NKI28/20     28 32 42 20 23000 37500 14000
30 NA4906 4544906 115 30 35 47 17 25000 35500 13000
NA5906 6534906 152 30 35 47 23
NA6906     30 35 47 30 43500 71000 13000
NKI30/20     30 35 45 20 24000 42500 13000
NKI30/30     30 35 45 30 36500 69000 13000
32 NK132/20     32 37 47 20 24900 43900 12000
  TAFI324720   32 37 47 20 24900 43500 12000
NA49/32 45449/32 150 32 40 52 20 24900 43500 12000
NA69/32 66349/32 272 32 40 52 36 100000 100000 11000
35 NKI35/30   165 35 40 50 30 39000 79000 11000
NA4907 4524907 151 35 42 55 20 19800 41500 11000
NA6907 6534907 301 35 42 55 36 26000 60500 11000
NKIS35   220 35 43 58 22 33000 56000 9500
NA5907   256 35 42 55 27
40 NKI40/20   124 40 45 55 20 22000 48000 10000
NKI40/30   184 40 45 55 30 35000 86000 10000
NA4908 4544908 240 40 48 62 22 42000 65000 8500
NA6908   401 40 48 62 40 64000 112000 8500
NA5908   348 40 48 62 30 53000 92500 8500
42 NKI42/20   138 40 47 57 20 26000 52500 9500
45 NKI45/25   218 42 50 62 25 36000 70000 8500
NKI45/35   289 42 50 62 35 41500 102000 8500
NA4909 4544909 260 45 50 68 22 37000 96500 8000
NA6909 6534909 479 45 50 68 40 61500 123500 8000
NKIS45   306 45 55 72 22 43000 71000 7500
NA5909   396 45 50 68 30
50 NKI50/25 TAFI506825 262 50 55 68 25 32000 78000 7500
NA4910 4544910 264 50 58 72 22 41000 72000 7500
NA5910     50 58 72 30
NA6910 6534910 457 50 58 72 40 68000 135000 7500
NKIS50   510 50 60 80 28 60000 95000 7500
NKI50/35 TAFI506835   50 55 68 35 53000 118000 7500
55 NKI55/35   357 55 60 72 35 48000 126800 7500
NA4911 4544911 386 55 63 80 25 50600 96580 7500
NA5911     55 63 80 34
NA6911 6534911 790 55 63 80 45 82560 172000 7500
60 NKI60/25   388 60 68 82 25 35500 85000 7000
NA4912 4544912 412 60 68 85 25 52800 110500 6500
NA5912   614 60 68 85 34
NA6912 6534612 798 60 68 85 45 88500 186000 6500
NKIS60   550 60 70 90 28 65000 110000 6500
65 NA4913 4544913 435 65 72 90 25 57500 110500 6500
NA6913 6534913 821 65 72 90 45 87600 194500 6500
NKI65/25     65 73 90 25 53000 100000 6500
NKI65/35     65 73 90 35 75000 156000 6500
70 NA4914 4544914 712 70 80 100 30 79000 154000 5500
NA6914 6534914 1326 70 80 100 54 121000 263000 5500
NKI70/35     70 80 95 35 78000 184000 5500
75 NA4915 4544915 765 75 85 105 30 82000 158000 5500
NA5915   1130 75 85 105 40
NA6915 6534915 1429 75 85 105 54 128000 272000 5500
80 NA4916 4544916 870 80 90 110 30 81000 170500 5500
NA6916 6534916 1510 80 90 110 54 130500 280600 5000
NKI80/35     80 90 110 35 103000 208000 5000
85 NKI85/26     85 95 115 26 73000 137000 4800
NKI85/36   1040 85 95 115 36 107000 223000 4800
NA4917 4544917 1250 85 100 120 35 111000 237000 4600
NA6917 6534917 2200 85 100 120 63 166000 400000 4600



Packaging & Shipping

1.Industrial packaging: plastic tube+carton+ nylon bag+wooden pallets. needle roller bearing NA4914 NA5914 NA6914 high precision high quality

2.Commercial packaging: plastic bag+color box+carton+nylon bag+wooden pallets.

needle roller bearing NA4914 NA5914 NA6914 high precision high quality

3.As the clients requirement.



workshop

needle roller bearing NA4914 NA5914 NA6914 high precision high quality

     Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years. We have the professional production line for this bearings.

     1. Our bearings are made of chrome steel, it has better corrosion resistance, hardenability and toughness.

     2. Double seal. Adopt nature rubber, made it hard for dirt and grime to get in, running more quietly.

     3. Cage. Also made of chrome steel, it is more durable than carbon steel bearings.

     4. Capacity: 100,000 PCS/month.

Delivery and payment

needle roller bearing NA4914 NA5914 NA6914 high precision high qualityneedle roller bearing NA4914 NA5914 NA6914 high precision high quality

Our Services

1. What types of bearings are you provide?



    We are mainly producing roller bearing: spherical roller bearing; taper roller bearing; full complement cylindrical roller bearing; needle roller bearing; thrust roller bearing etc. We are producing the ball bearing at the same time. All types of bearing we could supply. You just list your requirement, we will give you the best service.



2. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?



    Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

3. How about the sample policy?



    If we have the sample in stock .we will provide free sample to you. if we don’t have in stock, then you should pay the sample fee . Anyway, the sample fee will pay back to you. when you confirm the order,

Sample fee is charged by the shipping company. Client should pay it.

Any questions, please feel free to contact us!

Welcome your inquiry!

business card

Our company can product all kinds of bearings and can accept customer's customizes .

needle roller bearing NA4914 NA5914 NA6914 high precision high quality
