Home > Packaging & Printing > Machinery for Packaging Supplies > Blister Packaging Machine > PBZ-260S Ampoule Vial Packing Machine Line

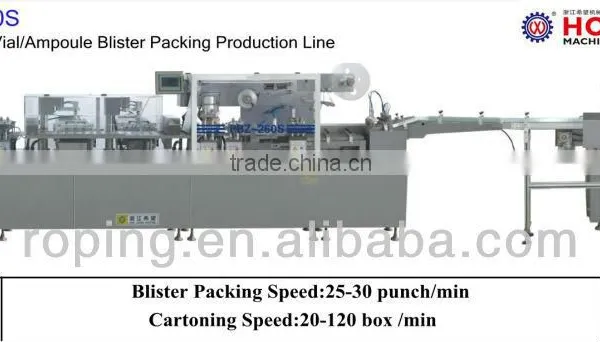

PBZ-260S Ampoule Vial Packing Machine Line

Name: PBZ-260S Ampoule Vial Packing Machine Line
Brand: HOPING, Hoping
SKU: 120715199

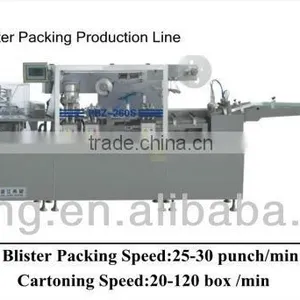

PBZ-260S Ampoule Vial Packing Machine Line thumbnail-1

PBZ-260S Ampoule Vial Packing Machine Line photo-1

US$ 1,000 - 10,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Machinery & Hardware

Automatic Grade:

Automatic

Contact Supplier Request Quote Chat Now

Zhejiang Hoping Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Machinery & Hardware

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 60hz

Place of Origin Zhejiang, China

Brand Name HOPING, Hoping

Model Number PBZ-260S, PBZ-260S

Dimension(L*W*H) 7170*1200*1700

Weight 2900kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1)Automatic vial packing Production line,
2)Double feeding
3)Vertical cartoning
4)Siemens PLC system control

Automatic vial packing Production line

Specfication:

1,The line machine integrating blister ,vial/ampoule feeding together.

2, Detection, rejection and cartoning packing into an organic whole.

3,With compact structure, simple operation and PLC touch screen adopted.

4,Change parts can special designed by customer's requirement.

Ⅰ Vial/Ampoule Blister Packing Machine

Main Technical Parameter

Capacity	25-30 punch/min
Range of stroke(mm)	40-120
Packing Material Pharmacy PVC(mm) PTP alu foil(mm)	(0.2-0.4)*260
Packing Material Pharmacy PVC(mm) PTP alu foil(mm)	(0.02-0.05)*260
Clean compressed air(pressure)	0.5-0.7Mpa
Air consumption(m³/min)	≥0.4
Power	AC380V 50HZ 9KW
Water chiller for moulds	recyle water with 60L/h consumption
Overall dimensions(mm)	44207101700
Net Weight(kg)	1700

Ⅱ Cartoning Machine

Main Technical Parameter:

Capacity(box/min)	30-120
Box dimension (mm)	(70-125)(35-85)(15*65)
Leaflet dimension(mm)	(80-260)*(80-180)
Clean compressed air(pressure)	0.5-0.7Mpa
Air consumption(m³/min)	≥0.3
Power	AC220V 60HZ 1KW
Overall dimensions(mm)	175012001700
Net Weight(kg)	1200

Packaging & Delivery

Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
