Specifications

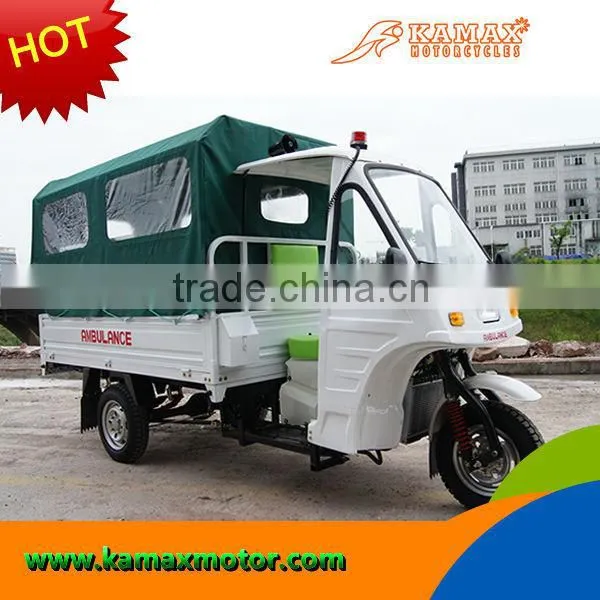

Amublance Tricycle is designed by our Tanzania client, 250cc water-cooled engine shows huge power, is useful for emergercy.Product Name: Kamax New Design 200cc~250cc Ambulance Tricycle
Amublance Tricycle
200cc ambulance tricycle
| Engine specification | ||||||
| engine type | ZHONGSHEN | |||||
| engine | single cylinder,4-stroke,water-cooled | |||||
| bore×stroke | 63.5×62.2 | |||||
| working volume | 196.9cc | |||||
| Nominal displace | 200cc | |||||
| Compression Ratio | 9.0/1 | |||||
| starter system | electric/kick | |||||
| Ignition Model | C.D.I. | |||||
| advance angle of ignition | BTDC11±2°(≤1500)33.5±2≥4000) | |||||
| way valve | underneath type camshaft | |||||
| lubricating system | pressure splash | |||||
| engine net weight | 32kg | |||||
| engine dimension | 354×324×435mm | |||||
| maximum power(kw/rpm) | 10.2/7500 | |||||
| maximum torque(N.m/rpm) | 14/6000 | |||||
| fuel consumption | ≤354 | |||||
| Low idling speed | 1500 | |||||
| exhaust pollution | CO≤3.8%,HC≤800ppm | |||||
| starting ability | ≤15s | |||||
| clutch type | Wet Multi-Plate | |||||
| derailleur type | Regular meshing gear type | |||||
| transmission ratio,junior | 3.333 | |||||
| Output sprocket teeth | 15 | |||||
| The capacity of lubricating oil | 1.1L | |||||
| carburetor | PZ30 | |||||
| spark plug | D8RTC | |||||
| lubricating oil pump | Internal and external rotor | |||||
| Magnetor type | Permanent magnet AC | |||||
| Tricycle specification | ||||||||
| Dimension | 3700×1400×1850mm | |||||||
| Cargo box size: | 2.2*1.4m (checkered bottome board,ordinary side board) | |||||||
| Rear axle: | 220mm semi-floating car rear axle | |||||||
| Front shocker: | europe-america one-armed shock absorber | |||||||
| Spring plate: | 4+2 underneath type steel plate with spring | |||||||
| Wheels: | 4.50-12 front wheel 4.50-12 rear wheel | |||||||
| 40*80mm keel frame | ||||||||
| 28A battery | ||||||||
| Bigger fuel tank | ||||||||
| small footplate | ||||||||
| Max.Load capacity: | 1 ton | |||||||
| Max.Speed: | 60km/h | |||||||
| transmission Type: | Shaft | |||||||
Remarks:we can produce it as per client's request | ||||||||
