FQFD Series Flour Purifier/marine Fuel Oil Purifier
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ctgrain
Model Number:
FQFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TFPX Series Rotary Distributer/exclusive Distribution ProductsNegotiableMOQ: 1 Set -
150TPD Compact Wheat Flour Mill/ Flour Mill Machine/ Flour Milling/ Flour MachineNegotiableMOQ: 1 Set
-
150TPD Compact Wheat Flour Mill/ Flour Mill Machine/ Flour Milling/ Flour MillNegotiableMOQ: 1 Set
-
150TPD Compact Wheat Flour Mill/ Flour Mill Machine/ Flour Milling/ Flour Mill MachineNegotiableMOQ: 1 Set
-
150TPD Compact Wheat Flour Mill/ Flour Mill Machine/ Flour Milling/ Flour MillingNegotiableMOQ: 1 Set
Place of Origin
Henan, China
Brand Name
ctgrain
Model Number
FQFD
Specifications
1.sieve size:490mmx490mm, 590mmx590mm;2.Imported rubber spring bushes, reliable.

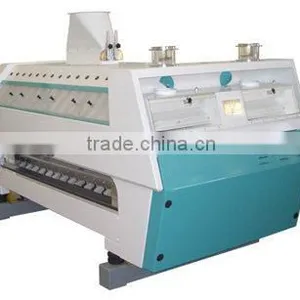

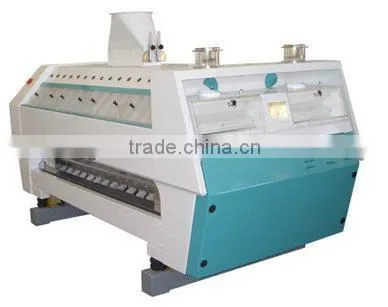

FQFD series Purifier
1. Principle
- This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it’s flowing to the end of the machine. The materials then are separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to different next passage.
2. Features
- Advanced design and excellent fabricating.
- sieve size:490mmx490mm, 590mmx590mm
- Aluminum inlets, conveying and collecting trough for durable working.
- Imported rubber spring bushes, reliable.
- Imported SEFAR cloth.
- High quality vibration motor
3. Application
- Widely applied in modern flour mills for high quality flour.
- Successfully used for semolina flour in durum flour mills.
4. Specification:
