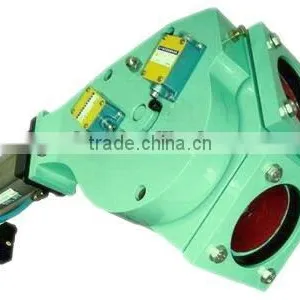

THFX Series Two Way Valve/plastic One Way Valve
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TDXZ Series Vibro Discharger for Flour Mill/capacitor Discharge Spot Welding MachinesUS$ 3,000 - 5,000MOQ: 1 Set -
FTWL Series On-line Micro Doser/Micro Feeder for Flour Mill/feeder for Foam ConcreteUS$ 1,000 - 10,000MOQ: 1 Set
-
FSFJ Series Check Sifter/flour Sifter/flour Sifter MachineNegotiableMOQ: 1 Set
-
FSFJ Series Two-Section Plansifter/vibrating Sifter Machin/vibrating Finishing MachineeNegotiableMOQ: 1 Set
-
Bulk Material Conveyor-TDTG Series China Professional Grain Bucket Elevator Conveyor Manufacturer/bucket Elevator Conveyor BeltNegotiableMOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Gate
Pressure
Medium Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Other, powder
Port Size
65-250mm
Place of Origin
Henan, China
Model Number
THFX
Brand Name
ctgrain
Specifications
THFX Series Two Way Valve is widely applied in flour, bran, and pollard blowing line in modern flour mills.High quality.

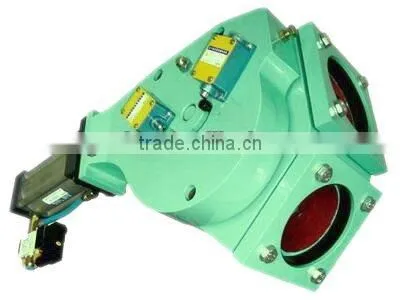

THFX series Two way valve
1. Principle
- This machine is the main equipment in the positive pressure blowing line of material transferring. The machine mainly comprises grey casting iron housing, diverter plug, and pneumatic driving parts. The materials are fed in the machine and the way is selected by the diverter plug which is driven by the pneumatic cylinder.
- Standard grey casting iron housing with chrome finish, diverter plug of spherical graphite iron, with AIRTAC pneumatically operated cylinder for position change. 24 VDC inductive imported proximity switches and solenoid valve. 30° Elbow adapter with flange seals and bolts.
2. Features
- Casting iron housing ensures no transmutation.
- Sealing counter sunk flanges ensure no leakage in the blowing line.
- Imported pneumatic performance parts including cylinder and solenoid valve are optional.
- 24 VDC for the proximity switches and solenoid valve, safety and reliability
- Cleaning and sanitation.
3. Application
- Widely applied in flour, bran, and pollard blowing line in modern flour mills.
- Also successfully in the materials transferring blowing line in other grain processing line or other industry.
- Different surface parameters serve for different grinding passages, different middle materials.
4. Specification:
