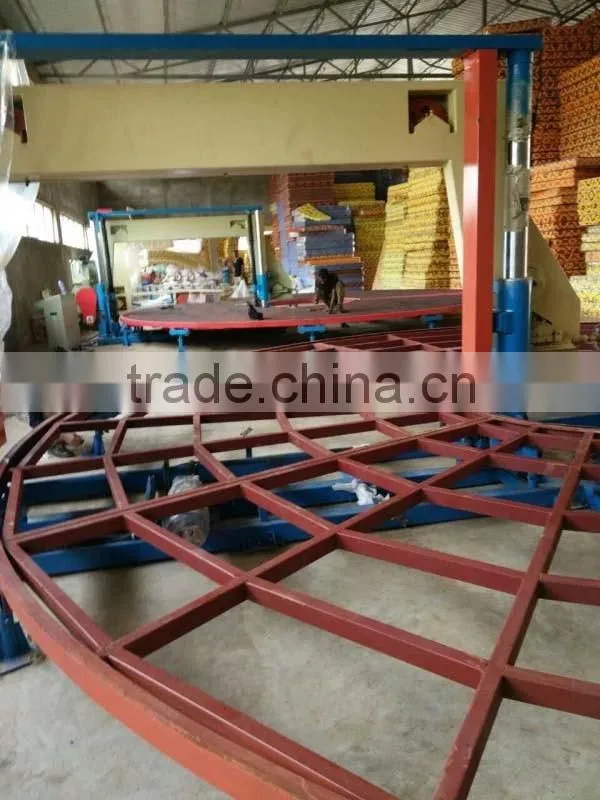

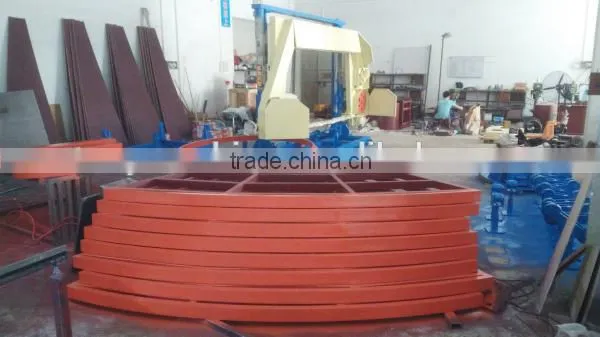

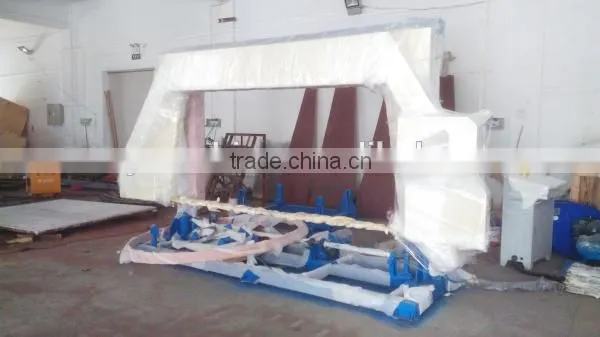

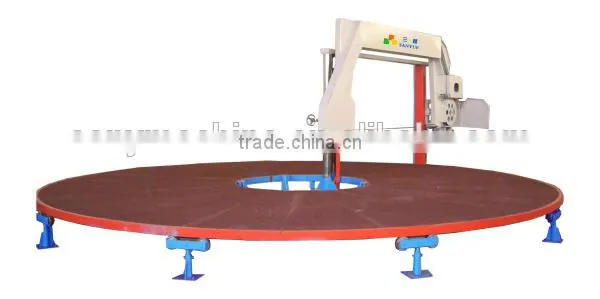

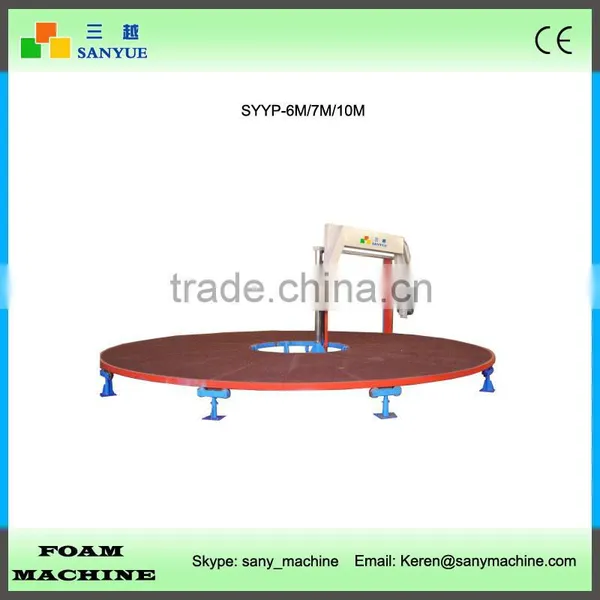

SYYP - 6M / 7M / 10M Automatic Rotary Table Horizontal Circle Foam Cutting Machine

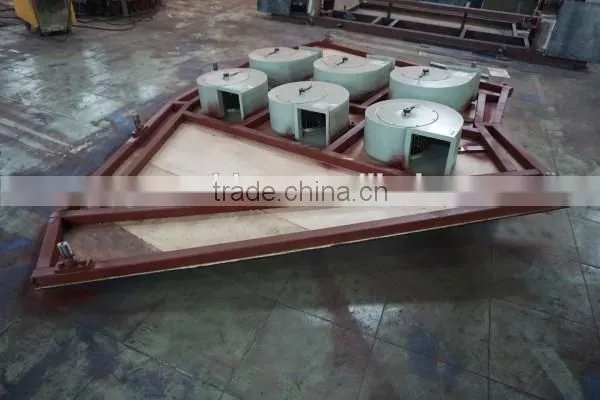

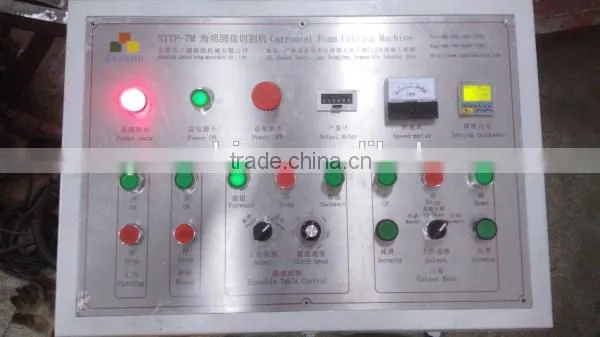

The horizontal circle foam cutting machine is mainly for cutting multi- blocks foam into slices at the same time, adopts fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable, continuously cutting, high production efficiency ( The worktable also can be added options of a vacuum system).
Model |
SYYP-6M |
SYYP-7M |
SYYP-10M |
Cutting Foam Size |
L2000*W1500*H1200mm |
L2000*W1500*H1200mm L3000*W2150*H1200mm |
L2000*W1500*H1200mm L3000*W2150*H1200mm |
Cutting Foam Thickness |
2-150mm |
2-150mm |
2-150mm |
Worktable Turning Speed |
0-3.5r/min |
0-3.5r/min |
0-2.5r/min |
Worktable Diameter |
Dia. 6m |
Dia. 7m |
Dia. 10m |
Blade Length |
8940mm |
10620mm |
11000mm |
Total Power |
8.92kw |
8.92kw |
10.52kw |
Machine External Size |
L7000*W6500*H2500mm |
L7500*W7000*H2500mm |
L11500*W11000*H2500mm |
3PCS of Blades, 4PCS of Grinding Wheels.
