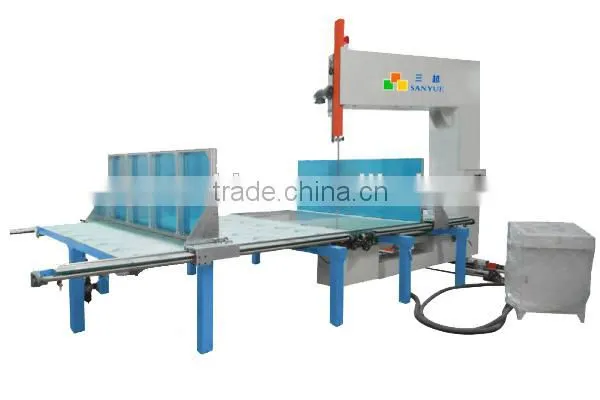

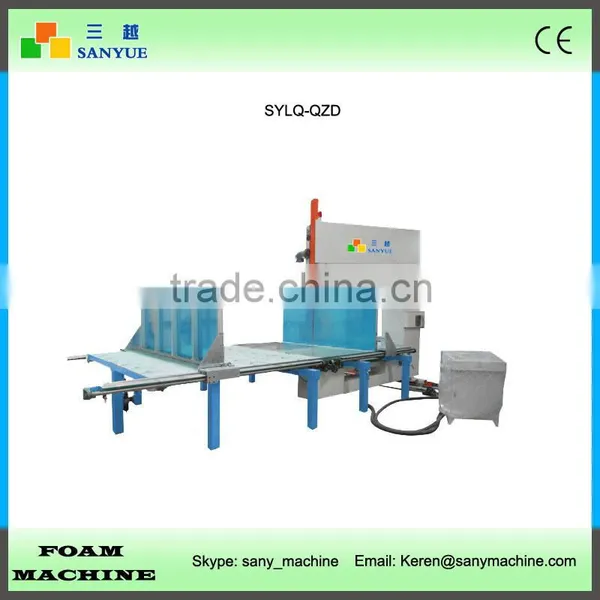

SYLQ - QZD Full Automatic Vertical PU Foam Sheets Cutting Machine
The foam sheets cutting machine adopts frequency conversion timing auto-controlled system, high automation level, and adopts knife-frame moving and fixed worktable of operation form. Reduced about half workspace, productivity increasing many times over. Foam between two baffles, knife-frame moving on beeline track, thus completing two sides of the vertical slice foam, and processing all kinds of EVA, EPE, packing materials etc, cutting precision, easy to operate,high effeciency.
Model |
SYLQ-QZD |
Inner Table Size |
L1700*W2440 mm |
Outer Table Size |
L1700*W2440 mm |
Cutting Foam Height |
H1100mm |
Thickness |
≥2mm |
Blade Length |
9720mm |
Knife Rest Treading Speed |
0-30m/min |
Baffle Treading Speed |
0-10m/min |
Total Power |
7.09kw |
Machine External Size |
L5700*W3700*H2500mm |
3PCS of Blades, 4PCS of Grinding Wheels.
