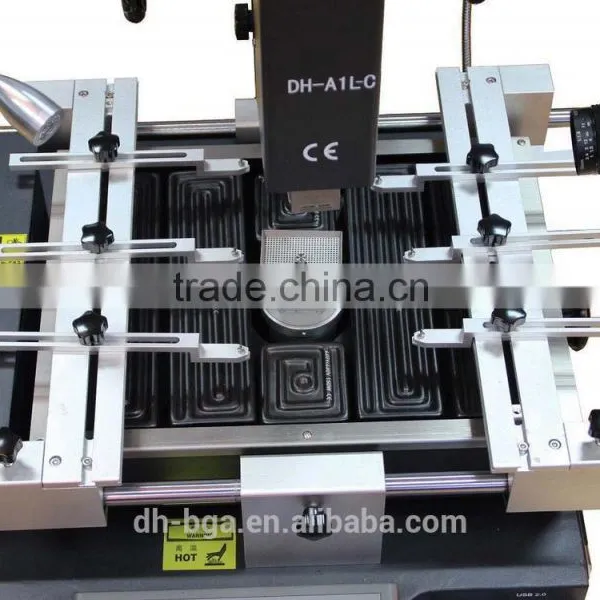

Dinghua laptop motherboard repair BGA Rework syatem with camera monitor,soldering iron DH-A1L-C
BGA Rework station DH-A1L-C of Specification:
Total Power |
4900W |
Top heater |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Digital Iron power |
80W |
Power |
AC220V±10% 50Hz |
BGA positioning |
Laser positioning, place pcb on the center rapidly. |
Camera + HD monitor |
To view melting of solder balls clearly, more convenient for operator to temperature adjustment, correction and analysis. |
Cleaning tin |
With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize |
Lighting |
Double shadowless LED lights, any angle adjusted freely |
Top heater movement |
Right/left, frontward/backward, rotate freely. |
Operation mode |
HD touch screen, intelligent conversational interface, digital system setting |
Temperature profile storage |
50000 groups |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 420×400 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L640×W630×H560 mm |
Net weight |
45KG |
Features:
1. Laser positioning, fast and precise position bga and pcb.
2. External digital soldering iron, help clean bga and motherboard easily after desoldering.
3. mbedded industrial PC, HD touch screen conversational interface, CPU control unit, human-machine interface operation, multi-functional integrated control, human structure design, optional numbers storage, apply temperature curve freely. With multi-functions: “keep same temperature”, “instant curve analysis” and “voice warning before heating finish”. Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
4. Precisely temperature control, k-type thermocouple closed-loop control and CPU control unite, with temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
5. V-groove PCB works for rapid, convenient and accurate positioning, which can suitable for all kinds of PCB board positioning.
6. Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
7. With different size of nozzles, easy replace and install, rotate freely 360°, any size can be custom if need. Titanium alloy material, never deformation, never rusty
8. Three heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
9. 6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
10. USB 2.0 interface, download current temperature curve and storage conveniently. Also, control touch screen with mouse.
11. Powerful cross flow fan, fast cooling for PCB and machine. With vacuum sucker, to pick up bga chip conveniently after heating.
12. With Voice warning 5-10 seconds before heating finished: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
13. CE certification approval. Double protection: Overheating guard + emergency stop function.
Certification:
About us:
Why our machine more accurate?
Our machine use PID control, the data acquisition frequency of our machine is 10ms(which
means every 10ms the PID will grab the data to correcting the temperature, but for most of BGA rework station from other companies, their PID grab frequency is 30ms, this is a big difference between 10ms and 30ms, that's why our machine is more accurate.
Our service:
Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Warranty
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
The video link:
A1L-C: https://youtu.be/E57USK7K52Y
Thank you for your time!
