Description:

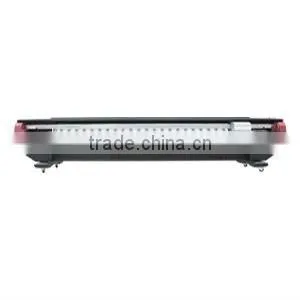

LFIP-JH-CJ6000 Series are high productivity solvent printers at 10.5' (3.2m) printing width. The heavy metal structure,perfect performance,high resolution printing,Main spare patrs are imported.This model is suitable for high end users.
Characteristics:

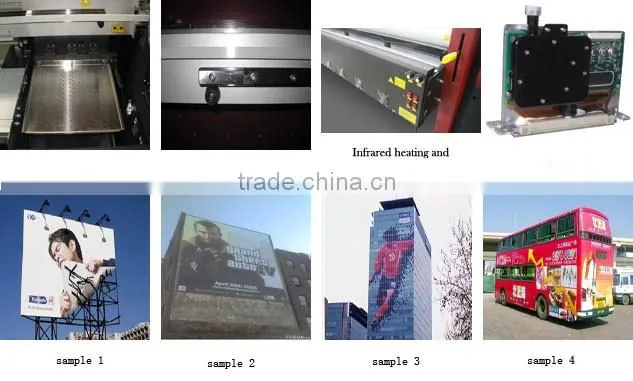

. Adopting hybrid steel girder fuselage structure which is foundation of high-volume output.
. Adopting extra wide aluminum print panel, so as to reach mass production together with SPT 1020 or 510 35PL printhead.
. Adopting 400W high-power AC servo control system, so as to get long life, fast response and high accuracy.
. Platform is with media adsorption function. Adsorption fans is in an independent room. You could adjust adsorption force by hand for media in different thickness.
. Safe low-voltage print head heating function makes printing better, meanwhile reduce temperature requirements. It is automatic temperature heating in the second ink bottle. No worry about printing in cold area.
. monochrome pressure washing is helpful in saving ink consumption. Detecting printhead's temperature and adjusting voltage automatically reduce the possibility of ink broken.
. Dynamic adjustment of step size and two-way value in printing improves work efficiency. Wave eclosion and linear wave functions improve matter in "PASS".
. Equipping ink insufficiency reminders in the main ink bottle,so it is convenient and safe in replaceing ink and avoid losses of ink.
. Effective ventilation system is a great solution of getting rid of the smell of solvent ink.
. Cleaning LED light with glass cover, easy for printhead cleaning, light can automatically switch off which can extend the using life of LED.
. Three stops constant temperature heating system,flash drying,better ink absorption,higher precision and powerful working efficiency
Aplication of Digital Large Format Inkjet Printer :
Building body advertising, roadside stop sign light box, advertising Optimus Prime, car ads.
| Model | CJ6306 | CJ6308 | CJ6304 | ||
| Printhead | SPT510_35PL | ||||
| No. of Printheads | 6 | 8 | 4 | ||
| Printhead Sequency | 1×6 | 2×4 | 1×4 | ||
| Print Width | 126.0" (3200mm) | ||||
| Media Width | 126.8" (3220mm) | ||||
| Print speed | Print mode | speed | |||
| High speed | 240X540 3pass 56m²/hr | 240X540 3pass 112m²/hr | 180X540 3pass 65m²/hr | ||
| Middle speed | 240X720 4pass 41m²/hr | 240X720 4pass 82m²/hr | 240X540 3pass 51m²/hr | ||
| Standard speed | 360X540 3pass 37m²/hr | 360X540 3pass 74m²/hr | 180X720 4pass 47m²/hr | ||
| Ink Type | Ink Type | Solvent Ink | |||
| Color | KCMYLcLm | KCMY | KCMY | ||
| Ink supply system | Automatic ink supply based on auto-detected ink level, failure alarming,empty main tank prompt. | ||||
| Cleaning method | Single color positive flush(with pressure protection), auto flushing & head moisturizing | ||||
| RIP software | MainTop( Photoprint optional) | ||||
| Interface | USB2.0 | ||||
| Printing assistant system | Auto feeding system | Infrared-detecting, feed & take-up system with memory function | |||
| Heating system | three stage heating system(Preheating, Print- heating, post- heating) | ||||
| Head heating | Low-voltage consistant-temperature head-heating (DC24V) | ||||
| Height of the tray | 0.1"~0.2" (2~5mm) Distance to the printing platform, adjustable | ||||
| Other functions | One key positive-pressure ink injecting, adjustable force of media being absopted to platform, anti-warp media-press, subtank heater(optional), lighting for head cleaning, drying fan, anti-splash board, emergency stop, full waste tank prompt. | ||||
| Printer info | Voltage | AC220V 50/60HZ (AC110V 50/60HZ is optional) | |||
| Power | Print system: 500W Heating system(Post-,1000w, print-,1500w, pre-, 1000w) | ||||
| Working environment | Normal temperature: 22°C~28°C Himidity: 40%~70%RH | ||||
| Machine size and weight | 190.9" x 39.8" x 52.8" (4850 x 1010 x 1340mm) 26.8±0.6lb (680±15kg) | ||||
| Shipping size and weight | 206.0" x 41.0" x 58.3" (5230 x 1040 x 1480mm) 35.4±0.6lb (900±15kg) | ||||
