Portable Oxygen Hydrogen Water Welder Flame Polisher Polishing Machine 95L, Double Guns, 110V, Double Guns Polisher Machine
Description:
Synthetic glass (acrylic) polishing, Oxy - hydrogen generator is a machine using high temperature flame to make acrylic edge smooth and bright. The heat polishing on the acrylic rough surface can be achieved as long as the flame passing by gently, and the acrylic products will become glittery and bright.
Features:
• H180 is updated from H100, it is economical type Acrylic flame polishing machine.
• Light weight, Energy saving
• Environmental friendly, safe and reliable
• Its electrolyze adopts series and parallel compound technique, which makes the electrolysis more efficient.
• APM-H180 is environmental friendly, safe and reliable with low energy consumption.
Details for Double Guns Polisher Machine
The flame acrylic polishing machine’s instruction:

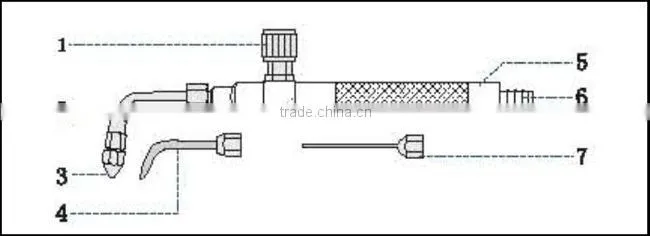

Flame gun instruction:
1. Adjusting valve; 2. Connector; 3. Flame nozzle; 4. Bend flame nozzle (option); 5. Flame gun bar; 6. Air inlet port;
7. Pin type flame nozzle (option).
Add water timely
After several hours of operation, the water level may fall below the “middle” line, you should add some water. Distilled water is the best choice, next are purified water, cold boiled water and mineral water.
How to add water?
1. Turn off the torch.
2. Switch off the power and open the valve on the torch to let out the remaining gas.
3. Screw off the top cover.
4. Add water close to the “high” line.
5. Screw on the cover and switch on the machine, and it can work again.
Attention:

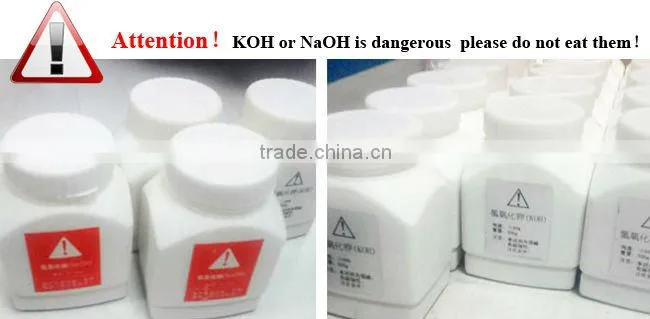

KOH or NaOH is dangerous, please do not eat them.
The temperature is up to 2800°C when burning, please put the flame polishing machine in the safe place.
Do not operate the flame acrylic polishing machine while your hand is wet; be careful of the electric shock.
Warning
When abnormal things happened, such as abnormal noise, smell, smog, quite high temperature, electric leakage, you should cut off power supply immediately.
Do not repair it by yourself, you should contact us.
The above cover; please do not load metal pieces.
Please connect the ground wire.
Forbid ignite while no air pressure
Application

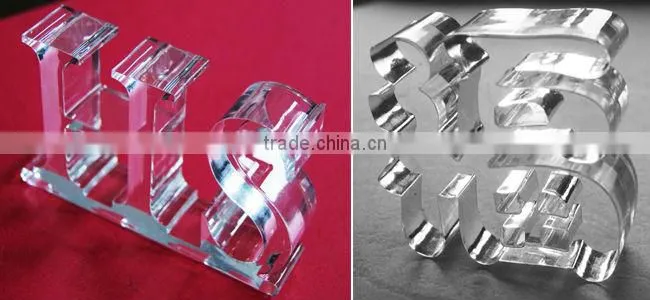

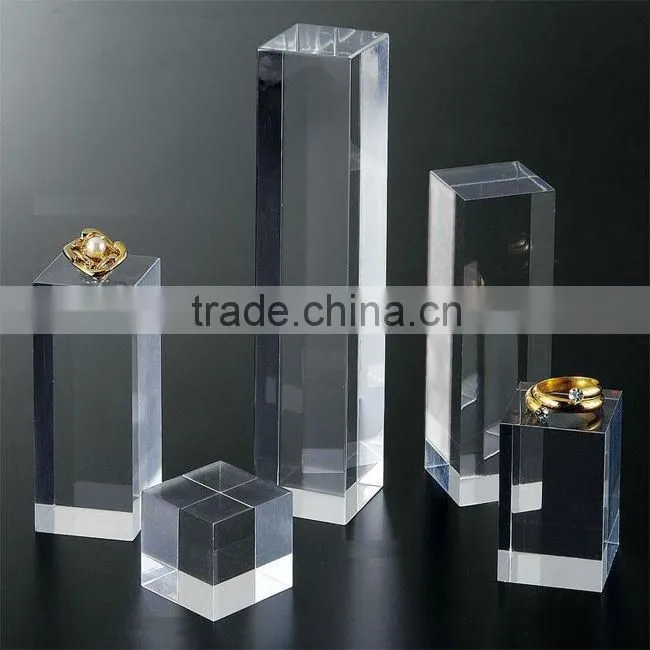

• Synthetic Glass Industry.
The synthetic glass (acrylic) polisher works with high temperatures flames that wrought the organic handicraft article.
• Electronic Industry. IC encapsulation.
• Semiconductor.
• Nonferrous welding, braze welding.(In the application of welding the nonferrous metals, oxygen is not necessary instead it uses the oxy-hydrogen generator; it can saved more than 30% cost compared with the other method s that uses the same material and workload. 1.It can weld all kinds of chains and strings of platinum, gold, silver, copper, ect. 2. Lead and tin pole fusion accumulator. 3. Engineering precision.
• School laboratory.)
Provides a convenient and safe oxy-hydrogen flame.

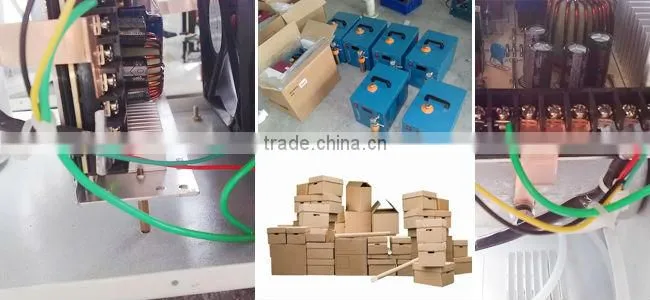

Production process:
Quality report:
| Model | APM-H100A |
| Input Voltage | AC110 - 220V |
| Rated Output Gas | ≥95L / H |
| Operation Gas Pressure | 0.08-0.13Mpa |
| Ambient Temperature | -10°C ∼ 40°C |
| Flame Temperature | ≥2800°C |
| Water Consumption (L / H) | 0.03 L / H |
| Flame Gun No. | Single |

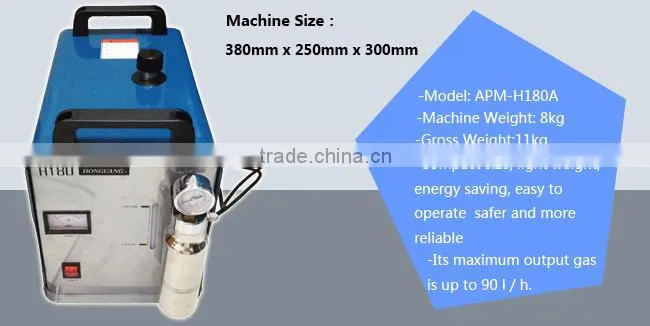

Machine Dimension |
380mm x 250mm x 300mm (15" x 9.8" x 12") |
Machine Weight |
8kg |
Package |
Carton box with foam fixed |
Packing Size |
480mm x 280mm x 360mm (19" x 11" x 14") |
Gross Weight |
11kg |

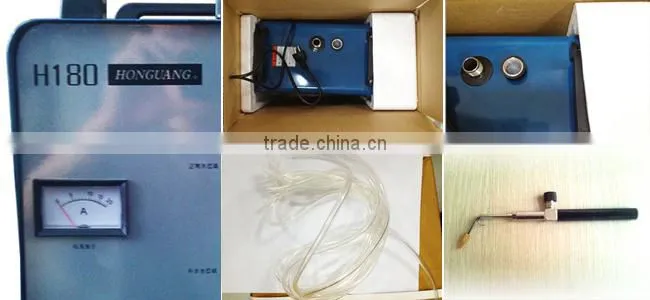

Packing list:
| Machine | 1 set | |
| Flame Gun | 1 pc | |
| Plastic funnel | 1 pc | |
| Flame Spray Nozzle | 1 pc | |
| Rubber Tube | 1 pc | |
| Power cable | 1 pc | |
| Electrolyte Powder | 0 / 1 bottle | |
| Instruction | 1 pc |
P. S.: Electrolyte powder (NaOH or KOH) is forbidden by express company, so we could not put it into the package. You can buy it from local chemicals paint.
One bottle is 500g, and it can be used about 3 - 4 months.
