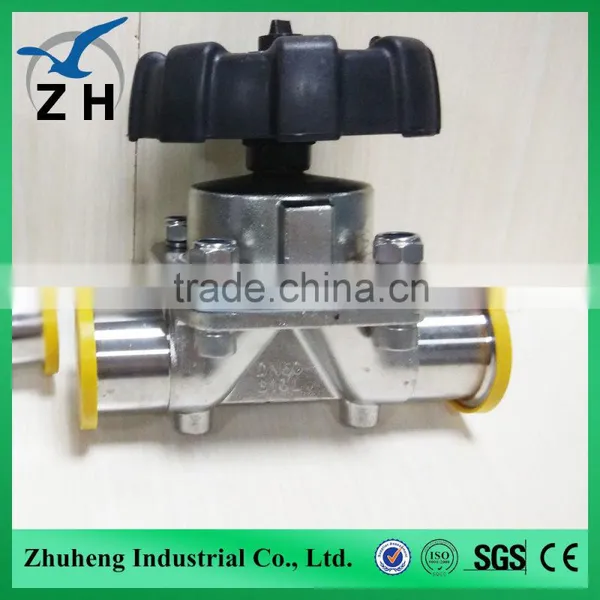

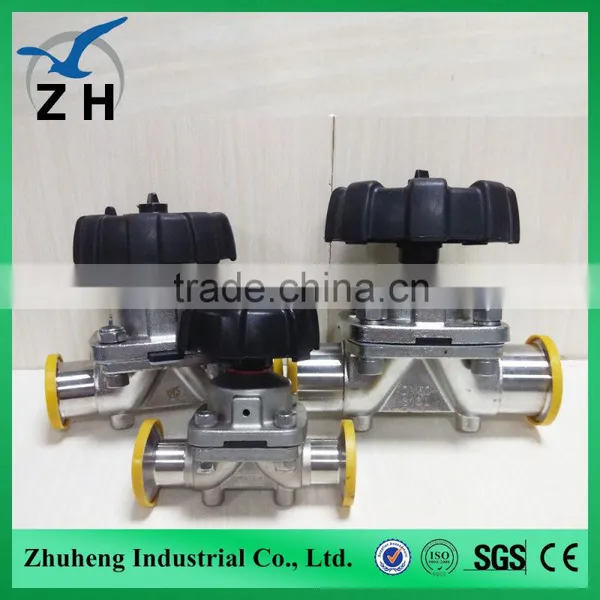

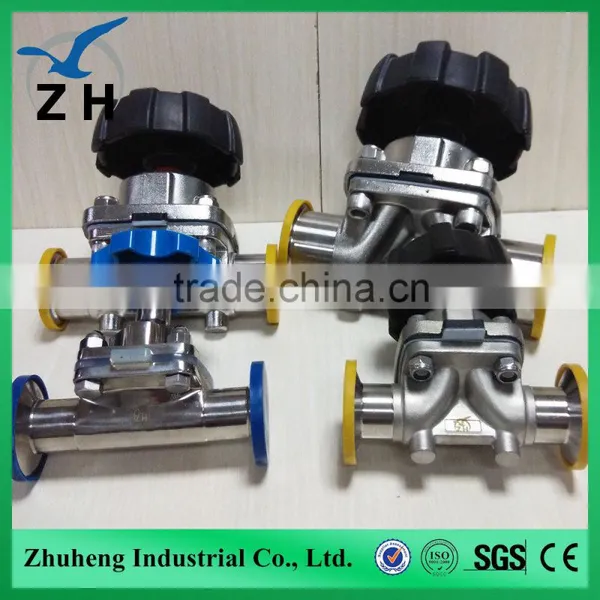

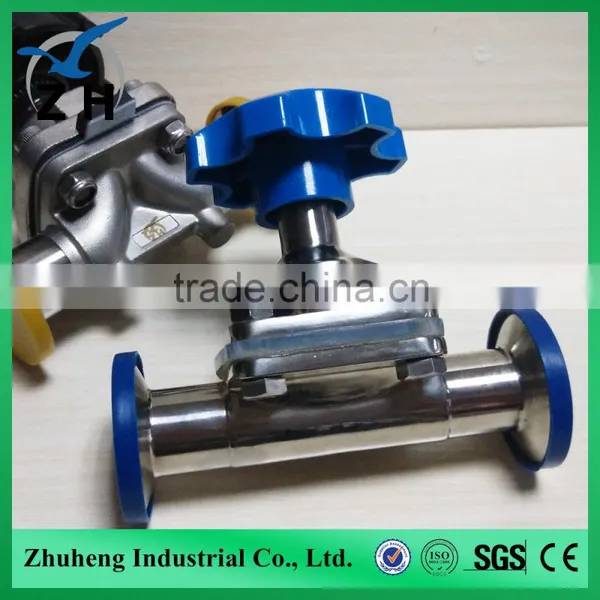

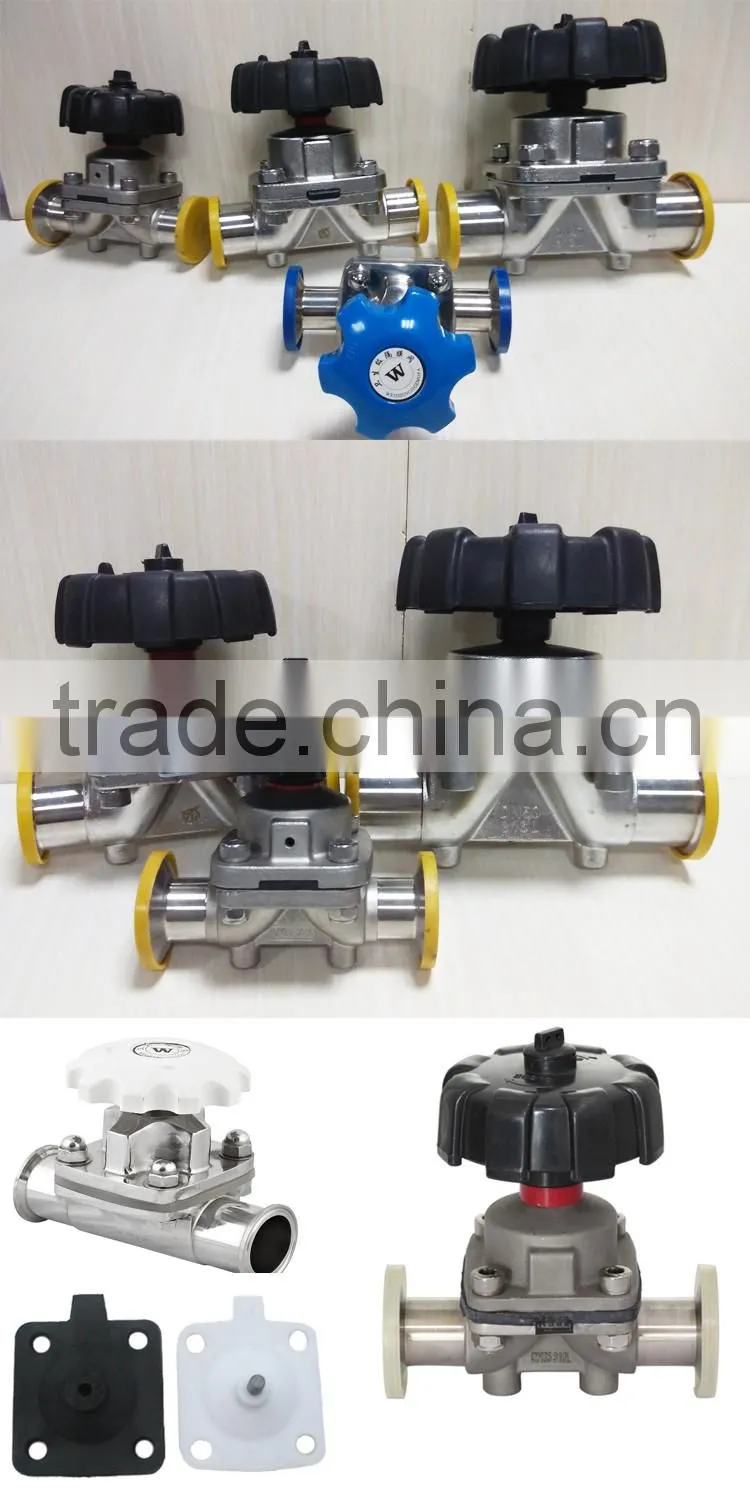

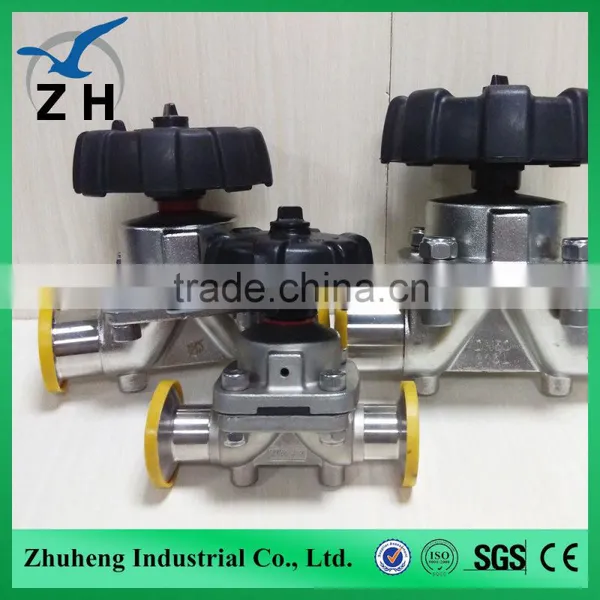

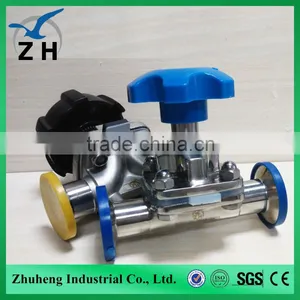

diaphragm valves
Material: SS304 or SS316
Standard: DIN, SMS, 3A, RJT, ISO, IDF
CE, SGS ISO
Summary
Max. pressure : 1 .0 M Pa(1 0 bar)
Min. pressure : vacuum
Temperature : -50C to +950C
Material : The parts contact with the liquid adopt AIS1304 0r AIS131 6L
Others : Adopt AIS1304
Rubber : Silicon rubber, EPDM,FPM or PTFE+EPDM
Application: Dairy, beer, food, beverage, pharmacy, biotechnology etc .
Working principle: Manual operation or driving device operation.
Manual operation: Handle wheel
Pneumatic device: Normally closed, normally opened opened and
closed by two air flues separately.
| Product Name: | diaphragm valves |
| Valve Body Material: | SS316L |
| Seal Material: | PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-3",DN20-DN65 |
| Availably connection: | Clamp/weld/thread/special connection |
| Availably standard: | 3A/BPE/DIN/ISO/IDF |
| Operated: | Manual,Pneumatic |

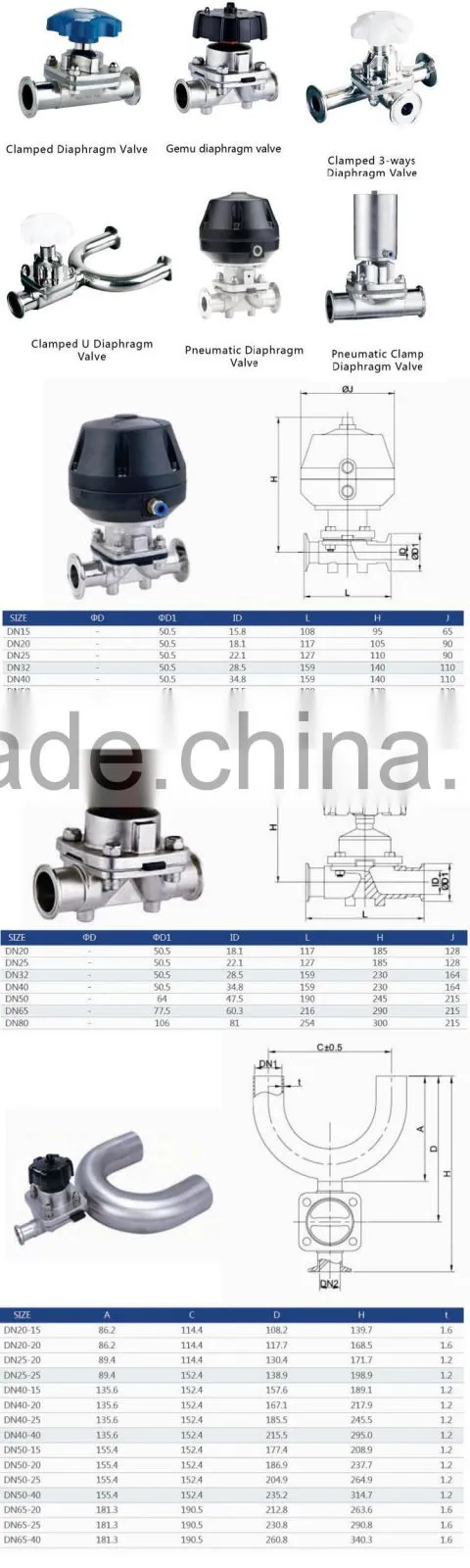

| Availably structure: | Straight, tee, U-type, tank bottom |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 10 days after receiving T/T down payment. |
Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea
Price Term including: EXW, FCA, FOB, CIF etc.
Payment: L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM etc.
1.20 years of product experience
2.10 years of export experience
3. Pass SGS Certificate
4.Experienced R&D Department
5.Reliability
6.Reputation
7.Buyer's Specifications Accepted
8.Production Capacity
FAQ
|
.
|
How long have you worked in this field? |
| I have worked 9 years in this field | |
| . | Can your factory supply samples with free if we need? |
| Yes, we can. | |
| . | Can your factory produce products according to our drawings or samples? |
| Yes, of course we can | |
| . |
What is your products' MOQ? |
| We haven't exact MOQ for our products .if you just need 1pc we also sell. Your satisfaction is our biggest pursuit. | |
| . | Where are the main markets for your products? |
| As "Pursuing Survival with Quality, Winning Market with Price" .Our product have been exported to all over the world, especially in North American, South American, Europe, and Middle East and so on. | |
| . | Do you think what is your factory's biggest advantage? |
| Technology is our core competitiveness | |
| . | Can you accept print our Logo on the valve handle cover? |
| Yes, we can, if you need. | |
| . | How about the delivery time ? |
| Answer:With the standard products normally delivery time will be10-15days after receive your down payment or full payment | |
