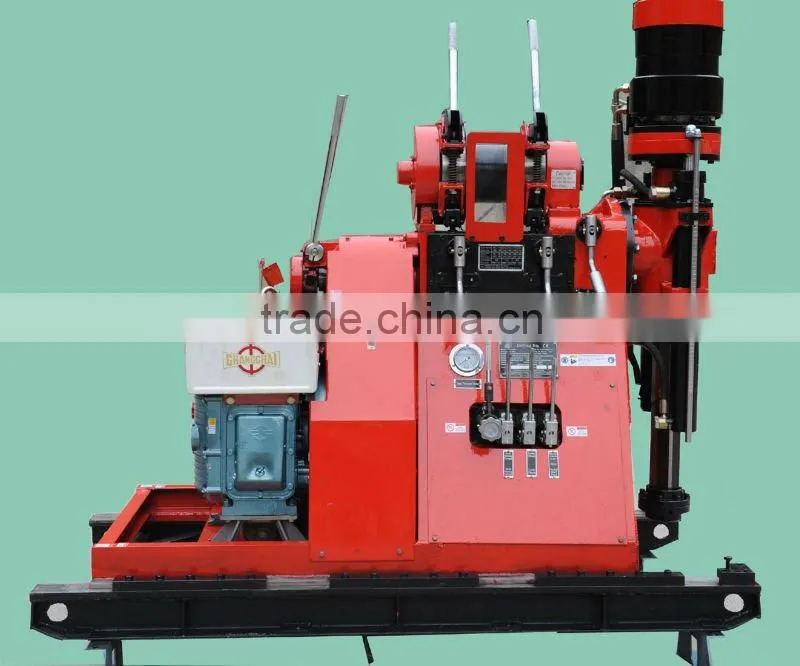

Help CenterHGY-200 Geotechnical Investigation Drill Rig
Related Products
-
XY-1 Core Sample Drilling Rig for Soil InvestigationUS$ 1 - 2MOQ: 1 Set -
XY-2 Rotary Core Drilling Rig, Mining Core Drilling RigUS$ 1 - 2MOQ: 1 Set
-
XY-1 Core Sample Drilling RigUS$ 1 - 2MOQ: 1 Set
-
Soil Testing Drilling Rig ManufacturerUS$ 1 - 2MOQ: 1 Set
-
XY-1 Soil Sampling Core Drill RigUS$ 1 - 2MOQ: 1 Set
Specifications
geotechnical investigation drill rig1,drill depth:200m
2,Two patents
3,Hydraulic chuck or ball chuck
drilling rig for water
geotechnical investigation drill rig
This Water Well Drilling Rig (HGY-200) ! is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Two patents for geotechnical investigation drill rig
Utility patent for transmission case.
Design patent for appearance.
Features of geotechnical investigation drill rig
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of geotechnical investigation drill rig
Model |
Water Well Drilling Rig(HGY-200) |
Drilling depth( m) |
200 |
Drilling rod diameter.(mm) |
Φ42 Φ50 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
360 |
Spindle speed( r/min) |
Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
2140 |
Spindle stroke(mm) |
500 |
Lifting power max( KN) |
50 |
Driving force max(KN) |
37 |
Lifting speed( m/s) |
0.6 2.3 3.4 |
Lifting capacity(single) max(KN) |
20 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
750 |
Overall dimensions(mm) |
1860*800*1400 |
Diesel engine model |
Zs1110 ( 14.7KW) |
Electromotor model |
Y160L-4 ( 15KW) |
For geotechnical investigation , you also need drill tools as flow:
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We are a has produced drilling equipments for more than 50 years. We are a
Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
