HGY-300 Mineral Exploration Drilling Rig

HGY-300 Mineral Exploration Drilling Rig thumbnail-1
HGY-300 Mineral Exploration Drilling Rig thumbnail-2
HGY-300 Mineral Exploration Drilling Rig thumbnail-3
HGY-300 Mineral Exploration Drilling Rig thumbnail-4

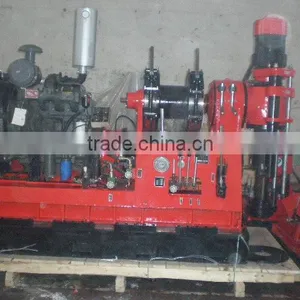

HGY-300 Mineral Exploration Drilling Rig thumbnail-5
HGY-300 Mineral Exploration Drilling Rig thumbnail-6
HGY-300 Mineral Exploration Drilling Rig photo-1

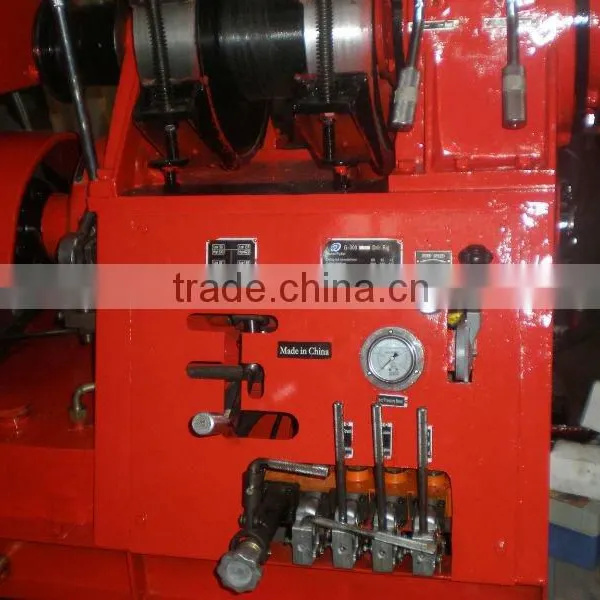

HGY-300 Mineral Exploration Drilling Rig photo-2

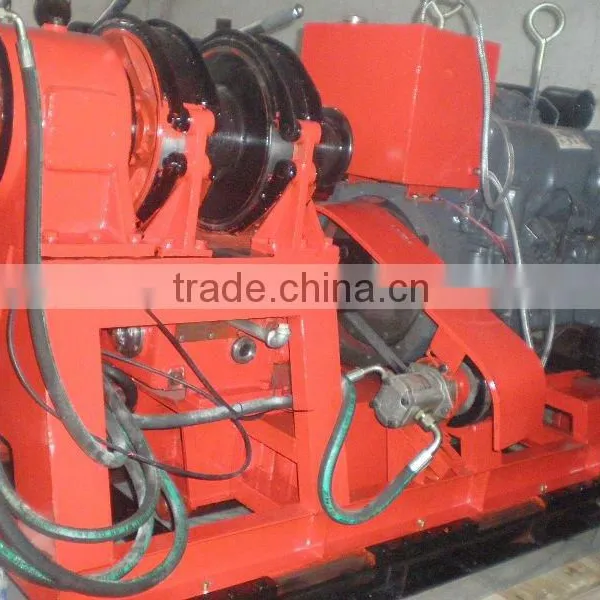

HGY-300 Mineral Exploration Drilling Rig photo-3
HGY-300 Mineral Exploration Drilling Rig photo-4

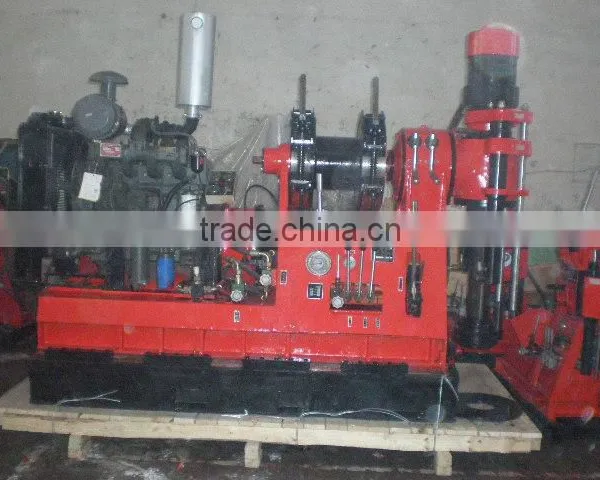

HGY-300 Mineral Exploration Drilling Rig photo-5
HGY-300 Mineral Exploration Drilling Rig photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rotary Drilling Rig, small, spindle ,mini ,deep,HGY-300, 300m
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Hunan Flydisc New Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/ shenzhen/ shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rotary Drilling Rig, small, spindle ,mini ,deep,HGY-300, 300m
Power Type Diesel
Place of Origin Hunan, China
Brand Name Flydisc
Model Number HGY-300
Usage Ore
Voltage 220v
Power(W) 26.5kw
Dimension(L*W*H) 2000*900*1600MM
Weight 1200KG without power
Certification CE,ISO9001:2008
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Drilling depth: 300m
Drill dia.: 75mm
Take rock core sample in mining exploration, geological survey

Company introduction:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Features :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.


Application:
1. Coal mining exploration, Ore exploration;
2. Small hole diameter water well drilling;
3. Geothermal pipe-installing for heat pump;
4. Small-diameter hole foundation piling drilling



Technological Data of Drilling Rigs:

     Model

HGY-300 Drilling Rig

Drilling depth( m)

300

Drilling rod diameter.(mm)

Φ50

 Head angle range

0~360

Movable cylinder stroke (mm)

400

Spindle speed( r/min)

  Positive rotation rate:34 67 115 189 238 156 307 531 868 1094

Reverse rotation rate: 38 173

Spindle hole diameter( mm)

Φ65

Spindle output torque max(N.M)

3100

Spindle stroke(mm)

530

Lifting power max( KN)

60

Driving force max(KN)

40

Lifting speed( m/s)

0.30 0.59 1.01 1.66 2.09

Lifting capacity(single) max(KN)

30

Steel wire rope diameter (mm)

13

Mode of chuck

Full-hydraulic chuck or ball-type chuck

 Weight(power unit excepted)(Kg)

 1200

Overall dimensions(mm)

2000*900*1600

Diesel engine model

395K2( 19.8KW)

 Electromotor model

Y180L-4( 22KW)



HGY-300 mineral exploration drilling rig
