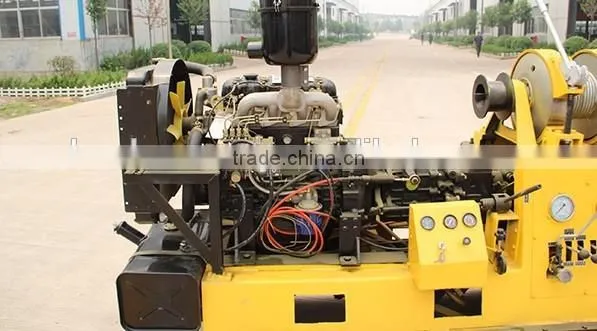

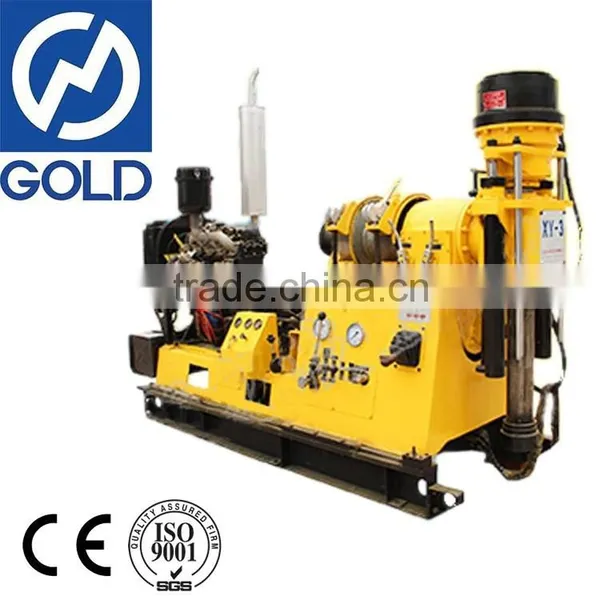

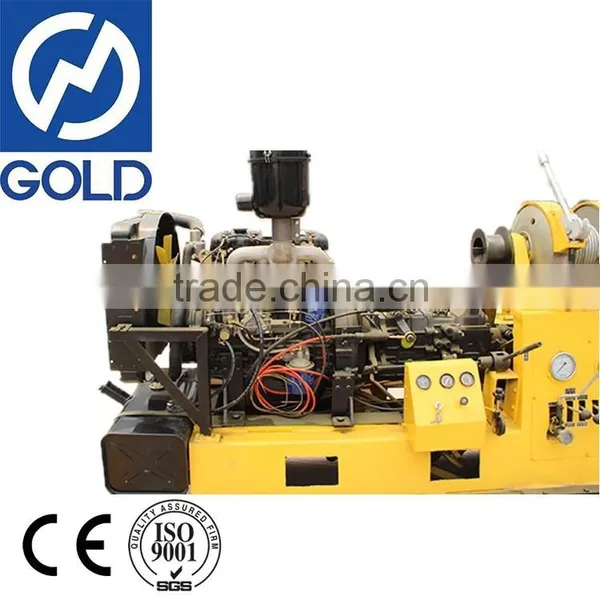

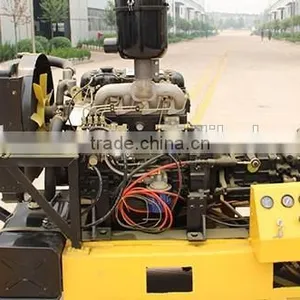

XY-3 drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project
a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
e. Spindle and hoist can be operated separately.
f. Spindle has big inner diameter, able to use big hexagonal drilling rod.
| Drilling depth | 600m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Dimension | 2500 x 900 x 1800mm |
| Drill weight (without power) | 1600kg |
| Spindle | |
| spindle speed | Forward 30-1050r/min |
| Reverse 29 137r/min | |
| Spindle stroke | 600mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 6000kg |
| Hoist | |
| Max.Single line lifting capacity | 4000kg |
| Max.Single line lifting speed | 0.5-1.9m/s |
| Wirerope caliber | 12.5mm |
| Wirerope length | 50m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Mud pump | |
| Type | BW-250 |
| Displacement | 250 L/min |
| Work pressure | 80kg/cm² |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power | |
| Diesel engine | 4105 76HP |
| Electric motor | Y180L-4 59KW |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
