Specifications
Heat insulation made of 2 external pure aluminum foil covering a core layer of bubble air made of bubble air 25mm diameter PE
6A2 Cat Tuong Sound- Heat Insulation Material is composed of 25mm diameter bubbles air made from polyethylene sandwiched between two aluminum foils. The aluminum foils are heat reflective and the bubbles air are heat and sound insulation.
It keeps buildings warm in winter and cool in summer.
It is strong, light weight, clean and does not degrade over time.
It is easy and fast to install- usually save up to 50% labor time.
It prevents about 90% of heat radiation, decreases the temperature by 12-22C inside compared to the metal roof.

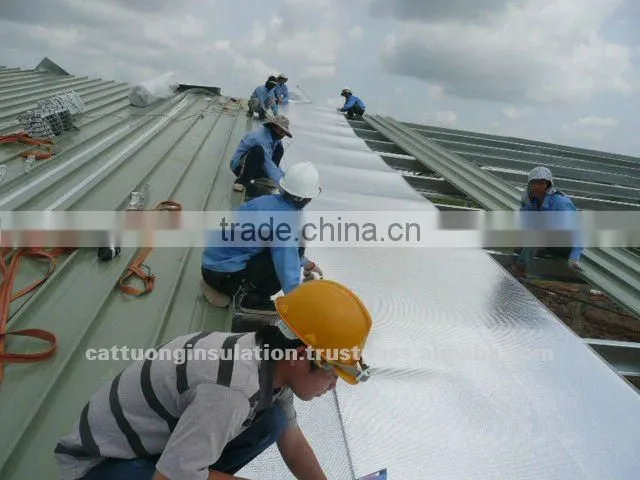

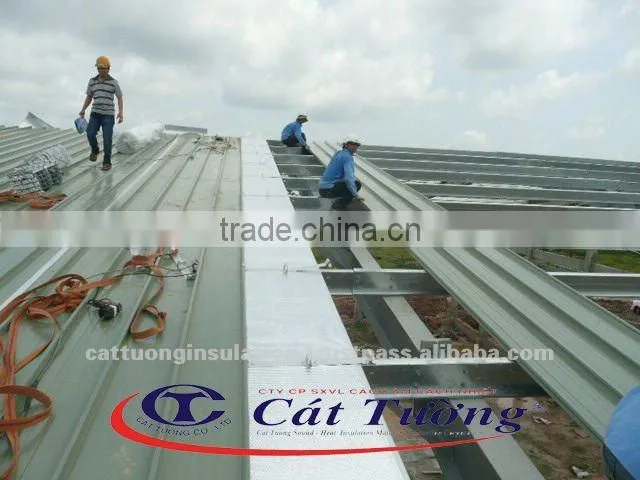

It can be installed under the roof, between the walls, under the ceiling and the floor.
It is environmental friendly, energy saving, fire retardant and has no odor or toxicity.
It replaces the glass wool or rock wool which after a few years degrade, became dusty and unhealthy.
It is largely used in industrial and civil construction, warehouse, livestock…in Vietnam, Thailand, China, Malaysia, Indonesia, Phillipine, Australia, New Zeeland, United States…

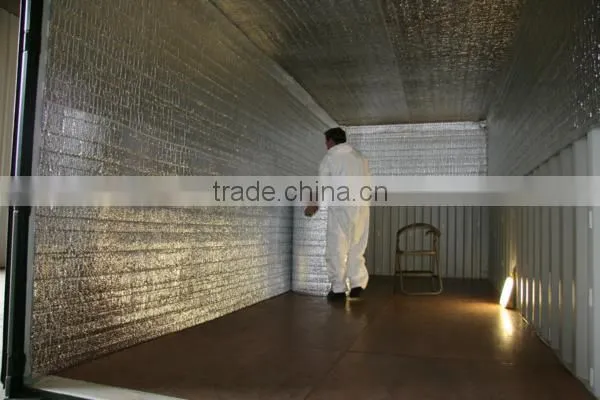

It can also be used in other application that needs heat insulation and shock protection as bag used in transport with container…
Thermal reflective insulation made of 2 external pure aluminum foils layers covering a single core layer of polyethylene 25mm diameter bubble air film. (Product is manufactured by USA standard).
Structure: Aluminum foil/ Big bubble air bag/ Aluminum foil.
Property |
Standard |
Unit |
Value |
Sheet structure |
Aluminum foil/ bubble air bag 25mm diameter/ Aluminum foil |
||
Roll Size |
|
m x m |
1.55 x 30 |
Sheet thickness |
|
mm |
6 (± 0.5) |
Roll weight |
|
kg |
16 (±0.5) |
Yield strength |
|
g/m2 |
311.13 |
Reflectivity |
ASTM C1371 |
% |
99.96 |
Emissivity |
ASTM C1371 |
€ |
0.045 |
Classification of Surface Spread of Flame (Aluminum surface) |
BS-476 .Part 7 |
|
Class 1 |
Elongation |
ASTM D638 |
% |
7.41 |
Tensile strength |
ASTM D638 |
N |
33.12 |
Tear strength |
ASTM D1004 |
kN/m |
16.18 |
Bursting strength |
ISO 13938-2-99 |
|
120.1 |
Water absorption |
ASTM E960 |
g/ft2 hr |
0.19 |
Resistant to mold and bacteria |
|
|
Yes |
Toxicity |
|
|
No |
