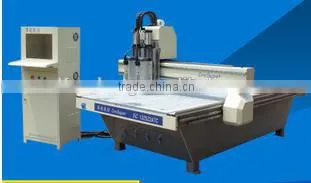

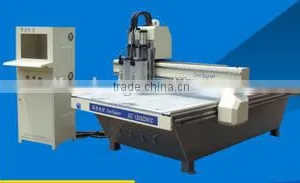

AUTO TOOL CHANGE CNC ROUTER - 1325A
1.Description
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.
2. Specification
Number
Description
Parameter
1
X,Y,Z Working Area
1300x2500x200mm
2
Table Size
1450×2940mm
3
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
4
X,Y,Z Repositioning Accuracy
±0.03mm
5
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
6
Frame
Welded Structure
7
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
8
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
9
Max. Power Consumption
(Without Spindle) 3.0Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6.0/7.0 kw
13
Spindle Speed
0-18000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER32/25
21
X,Y Resolution
<0.03mm
22
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3300X2100X2300mm
26
N.W.
1750KG
27
G.W.
1980KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntech Control System
Dust Collector
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors
4. Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
3. Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
