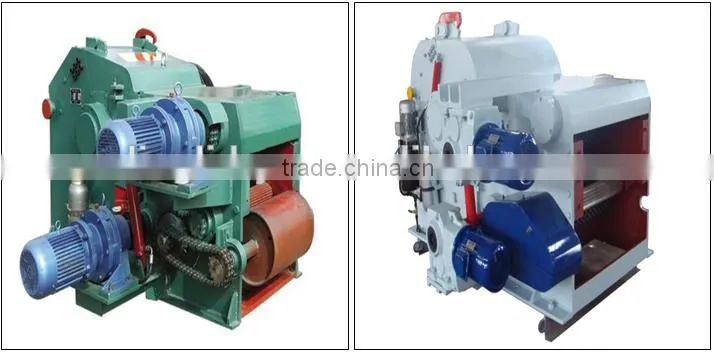

Wood chipping and drum chipping used by china manufacturers
Chipping process of Wood chipping and drum chipping machine
Chipper is devided in disc wood chipping machine and drum wood chipping machine
Working priciple photo show of Wood chipping and drum chipping machine
Application of Wood chipping and drum chipping machine
Wood chipper equipment can be chipping logs, wood branches, slab, waste veneer, bamboo, cotton stalks and other non-wood fibers cut the stems into a certain specification sheets, as at least particleboard, fiberboard, non-wood based panels and system the basic raw material of pulp and paper, advanced machine structure, high quality cutting sheets, wide adaptability of raw materials

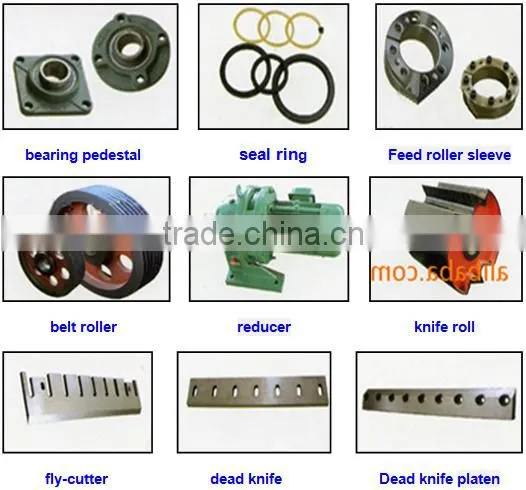

Main component of Wood chipping and drum chipping machine
Features of Wood chipping and drum chipping machine
1. This drum wood chipper machine with advanced design and structure, processing high quality wood chips.
2. It is consist of main machine, knife roller, knife blades, feeder, conveyor, hydraulic pressure system, etc. Machine body is welded by high strength steel plate forming the integrated support base.
3. Knife roller with 2-4 knifes which can be adjusted up and down based on the thickness of wood chips required. Qualified chips come down through the screen and outlet, but big block will return to crushing room for second processing.
4. The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.
5. The machine is suitable for processing of wood waste and other waste materials such as density board, straw etc.
Main specification of Wood chipping and drum chipping machine
MODEL |
GX216 |
Feeder Size |
230x500 |
Max Dia infeed |
230mm |
Main Power |
55kw |
Flying knives |
2-4 pcs |
Chips size(mm) |
30mm |
Capacity(t/h) |
5-8 |
Feeder Power(kw) |
(3-4) *2 |
Oil pump power(kw) |
1.5×1 |
Weight(kg) |
5000 |
Size(mm) |
1800x1900x1210 |
1.We are Henan Dingli Drying Equipment Co.,Ltd is located in zhengzhou city(No.59 dongda street, guancheng district), henan province, which belongs to the central city of china, superior geographical position and convenient transportation.
2.Henan dingli has been 20 years experience in manufacturing & exporting dryer machine field, our crusher equipment series is disc wood chipper, drum chipper, waterdrop wood hammer mill, wood powder machine, stalks feed crusher, biomass crusher and so on.
3.Adherence to the quality first, customer first purpose and dedication to new and old customer service!
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in Wood chipping and drum chipping machine.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install crusher for you.
3.warranty:one year for Wood chipping and drum chipping machine, and long-term supply of parts
Pls contact Eugenia to help you if your are interested in Wood chipping and drum chipping machine used by china manufacturers.
