PX woodworking machine series timber chipper of disc/wood cutting machine
Important specification of drum chipper machine
Our PX disc chipper machines series have PX-600, PX-800, PX-1000, PX-1200, PX-1400
Model |
PX-1000 |
Diameter of cutter(mm) |
1000 |
Revolving speed of cutter(r/min) |
610 |
Length of chip(mm) |
20-50 |
Thickness(mm) |
2-15 |
Dimension of feeder(mm) |
300*320 |
Capacity(t/h) |
4-6 |
Power of motor(kw) |
37 |
Max diameter of logs(mm) |
(fai)290 |
Weight of machine(kg) |
2720 |
Overall dimension(L*W*H)(mm) |
2100*1000*1300 |

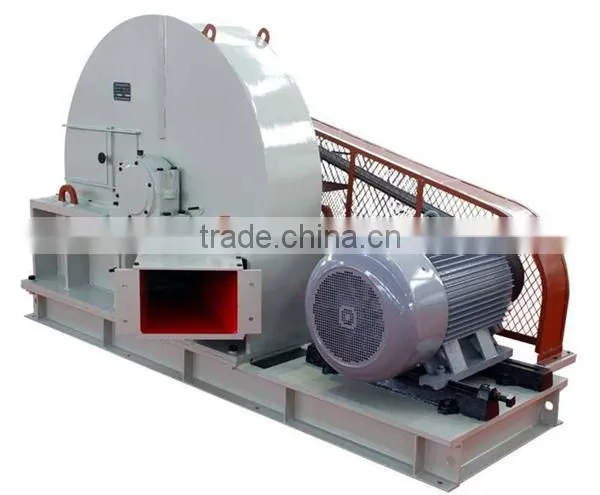

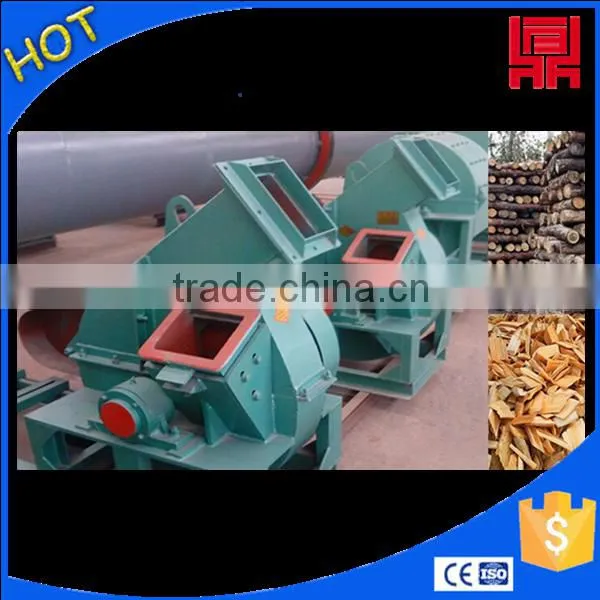

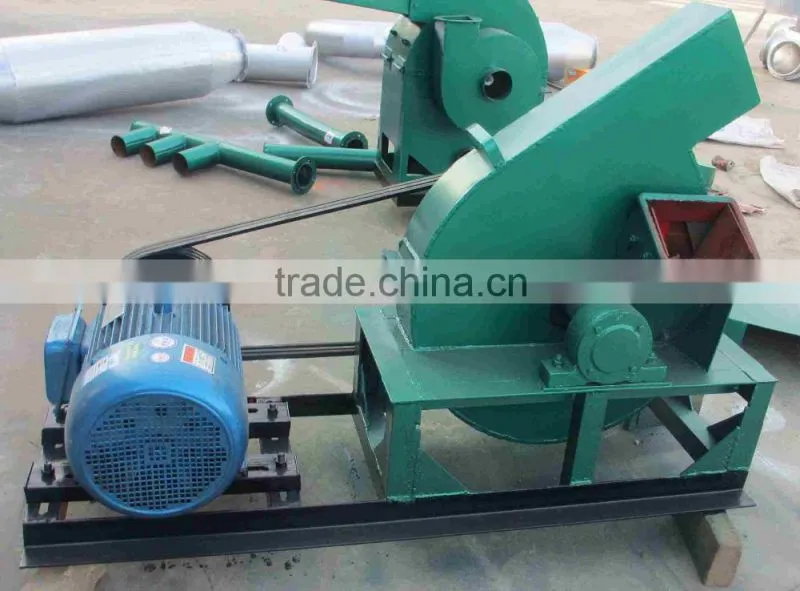

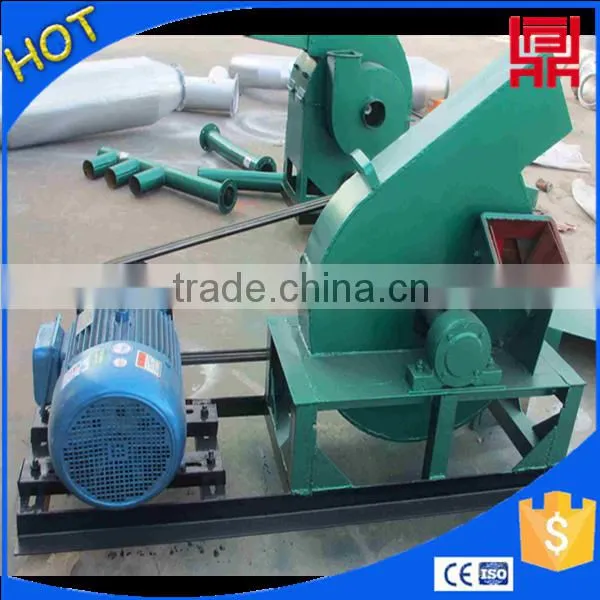

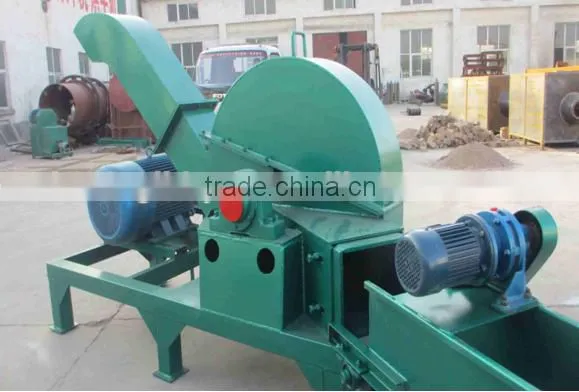

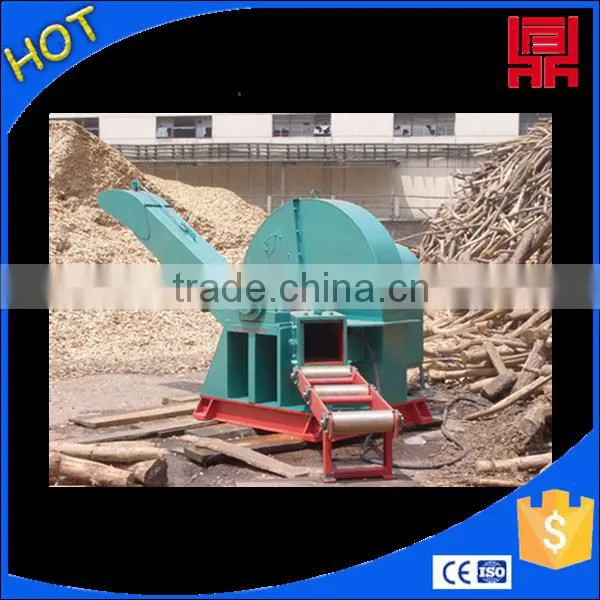

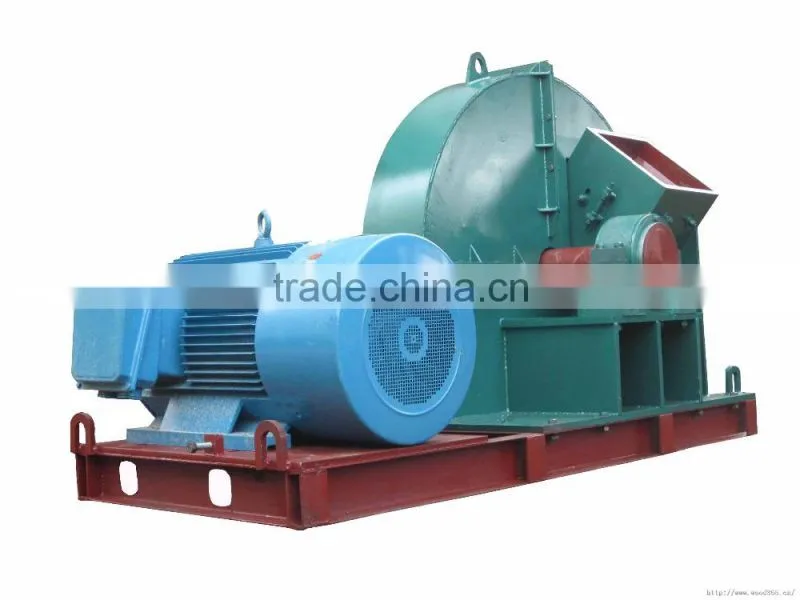

Photos show for disc chipper
intrduction of disc chipper
Disc chipper is a wood chipper, which is used to produce high quality wood of a special wood chipper, disc chipper is the special equipment for the preparation of highquality wood, it is suitable for paper mills, particle board plant , fibreboard plant and wood chip production base. You can log, cutting the growth of small-diameter wood and other uniform, cut flat, uniform thickness of high-quality industrial wood, it can also cut Ah, plates and so on.
Characteristic of disc chipper
1, this series disc chipper using low or high-voltage motors, large wood chipper has pulley drive and direct-coupled drive in two; the level of feed points and tilt two ways, the material is also on the material and lower the material in two ways.
2, this series disc chipper compact structure, reasonable layout, easy installation, easy operation and maintenance, high production capacity; cutting logs, high chip quality and chip length can be adjusted freely within a predetermined range, it is advanced disc chipper.
3, the series disc wood chipper varying yields, users can choose models according to their needs.
4, disc wood chipper base by a part, cutter, feed, housing, electronic control systems and other components.
5, in order to continuously meet market high-quality, high efficiency, high quality requirements, our company to the disc wood chipper year renovation products, and improve product quality. I plant series disc wood chipper cutter wear-resistant plate, knife and bed knife, made of special steel bolts Flying special produced.
Our PX-800 disc chipper woodworking machine consite of frame , parts of the cutter, feed, housing, and other electric systems.
Disc wood chipper using low or high-voltage motors, large disc wood chipper has pulley drive and direct-coupled drive in two;
The level of feed points and tilt two ways, the material is also on the loading and discharge two ways. Wood chipper disc output 2-160 cubic meters per hour.
Zhengzhou dingli has got relevant certifications in disc chipper
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in disc wood chippers and crusher machinery.
2.we are responsible for users’ site planning, process design, equipment installation and operation training.
3.warranty:one year for disc wood chipper crusher euqipment, and long-term supply of parts.
Profile of henan Zhengzhou dingli
We are Henan Dingli Drying Equipment Co.,Ltd, locate at No.59,Dongda Street, Guancheng Dist., Zhengzhou, China. We are producing and manufacturing various drying machine equipments as crusher, wood chipper, grinder ect.
welcome to visit our factory!
Shoud you have any more questions about PX woodworking machine series timber chipper of disc/wood cutting machine, please let me know.
