Horizontal dry-mixed mortar dryer low price promotion
Horizontal dry-mixed mortar dryer low price promotion production
Horizontal dry-mixed mortar dryer low price promotion machine used as dry-mixed mortar dryer/bentonite dryer/lignite dryer/riversand dryer/mud dryer/slurry drying equipment, is mainly consists of the heat source, feeding device, belt type feeding port, rotary drum, belt type discharge port, draught fan, deduster and power distribution cabinet.
Rotary drum dryer series equipments as folow
Horizontal dry-mixed mortar dryer low price promotion Working principle
The moisture bentonite/lignite/riversand/mud/slurry/dry-mixed mortar shall be processed in four work areas after entering into the dryer because of its viscosity:
1. Material guiding area: Here the water moisture of dry-mixed mortar /bentonite/ brown coal/lignite/coal powder shall evaporate immediately on the contact with the high temperature hot air, and then the materials shall be guided into the next area with being flipped by the lifting plate of the large guide angle without adhering with each other.
2. Cleaning area: Here the moisture of dry-mixed mortar / bentonite/lignite/riversand/mud/slurry shall form the curtain of material when flipped by the lifting plate and then adhere to the wall of the revolving cylinder when dispersing. The cleaning device installed here not only effectively clean the materials adhered to the wall, but also crushes the caked materials, thus improving the drying rate through enlarging the heat exchange area.
3. Inclined winnowing plate area: Here the dry-mixed mortar / bentonite/ brown coal/lignite/coal powder is in the loose situation with low moisture. The materials in the area have no adhesion situation and then reach the requirements for the moisture content after the heat exchange and finally enter into the material discharging area.
4. Material discharging area: No lifting plate is provided to the cylinder here, and the materials slide as rolling towards the outlet. Then the whole drying process is finished.
Horizontal dry-mixed mortar dryer low price promotion products(some)

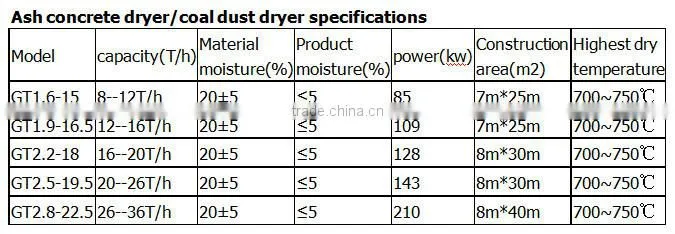

Technical parameters of Horizontal dry-mixed mortar dryer low price promotion

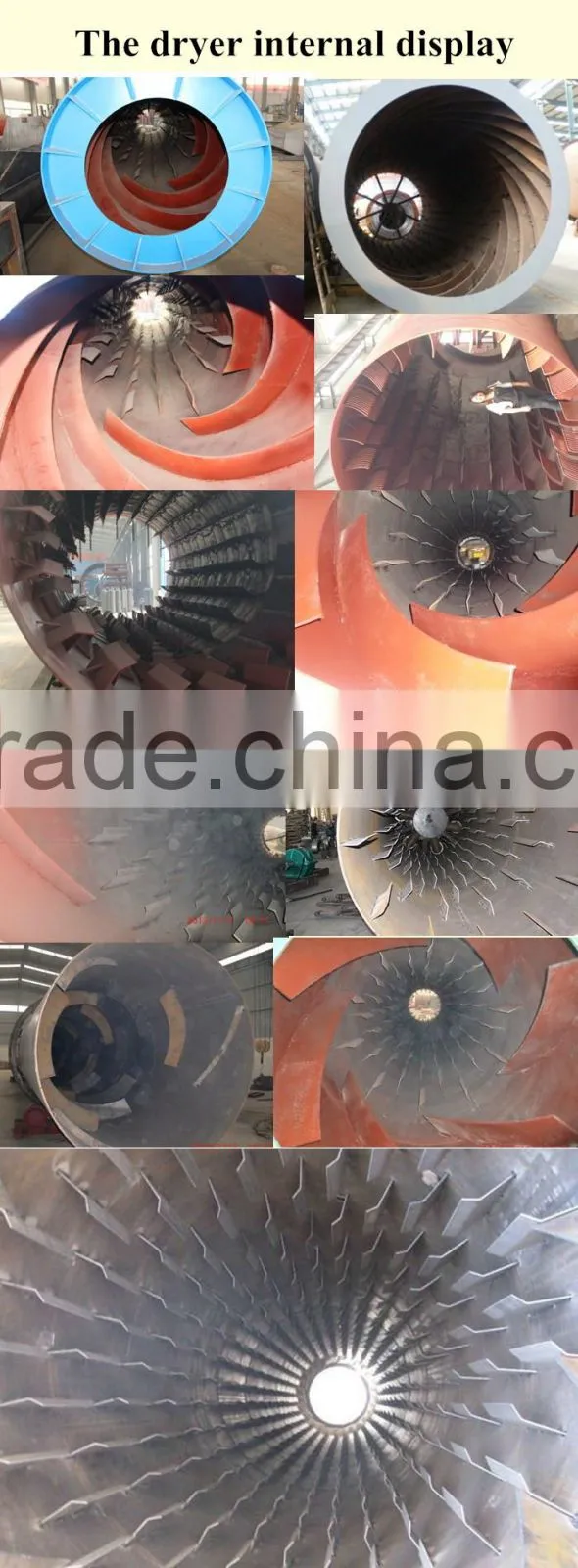

Rotary drum dryers internal display
Horizontal dry-mixed mortar dryer low price promotion advantages
1. This Rotary Dryer for dry-mixed mortar /bentonite/lignite/riversand/mud/slurry is of strong overload capacity resistance, large process load, low fuel consumption, and low cost.
2. Adopts direct flow drying method. The gas fume and the material go to horizontal dry-mixed mortar dryer nice price from the same side. By using the hyperthermia gas fume, the evaporation strength is very high. With the low outlet temperature, the heat efficiency is very high.
3. The operating parameter ofhorizontal dry-mixed mortar dryer nice price can be changed according to different materials. So that the material can form a stable fabric curtain and achieve fully heat exchange.
4. The new type feeding and discharging device of horizontal dry-mixed mortar dryer nice price solve the problem of feeding jam, discontinuous and uneven feeding, and returning charge lighten the load of dedusting system.
5. The horizontal dry-mixed mortar dryer nice price strengthens the cleaning and heat conduction of the dispersed material, and eliminates the bonding in the inner drum wall. The adaptability to the material moisture and stickiness is stronger.
6. The zero level thrust of horizontal dry-mixed mortar dryer nice price reduces the abrasion to the catch wheel and the riding wheel. The operation of complete set cinder Rotary drying equipment is stable and reliable.
7. horizontal dry-mixed mortar dryer nice price adopts the riding wheel device, which keeps the riding wheel and the rolling ring linear touch all the time. Thus the abrasive and the power loss are greatly reduced.
8. Adopt unique coal delay of drying technology, which can guarantee bentonite/lignite/riversand/mud/slurry drying uniformity.
1.Before packaged& delivered, we will test horizontal dry-mixed mortar dryer nice price seriously and guarantee the machine runs stably with high accuracy.
2. Air express, air freight, sea tranportation, can be provided by us.
1.Customized service can be provided to horizontal dry-mixed mortar dryer nice price .
2.Periodically call visit,to make sure there is no problem of your horizontal dry-mixed mortar dryer nice price 3.1 year warranty, technician available to service at any time.
sucessful projects overbroad of Horizontal dry-mixed mortar dryer low price promotion
some Customers distribution In China of horizontal dry-mixed mortar dryer nice price (red flags marked)
We are Henan Dingli Drying Equipment Co.,Ltd,locate at No.59,Dongda Street,Guancheng Dist.,Zhengzhou,China.We are producing and manufacturing various drying machine equipments as rotary drum dryer/coal drying dryer/fuel dryer/medicine dregs dryer/decoction dregs dryer/peat dryer,lignite dryer/sawdust drying dryer/hen dung drying dryer/wood dryer drying/straw dryer/grain stalks dryer/sauce dryer/chemical pharmacy drying device/chemical pharmacy dryerrs and many other biomass dryers.The whole equipment system can include the pellet machine/particles machine and packing machine/dust removing machine/biomass crusher/wood cutting machine,dewatering equipment and others.
These dryers can be equiped with heat source machine,feeding achine,crusher machine,dust removing or collecting mechanism,pellet making machine and packing machine. The structure of our machines can be Three-drum Rotary Dryer, Single-cylinder Rotary Dryer,horizontal dryer,vertical dryer.The machine can easilly used as fully automated and semi-automatic in intelligent designs.
Your demands about horizontal dry-mixed mortar dryer nice price can be fully considered. Welcome to contact us or visit our factory.
