small animal feed pellet mill

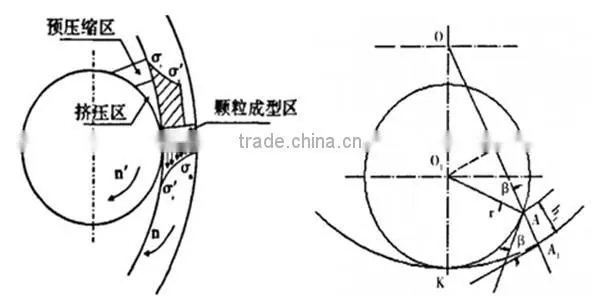

The working process
1. The feed ingredients run through feeder into conditioner and will be conditioned & mixed in the conditioner with vapor, then it goes into the pelletizing chamber through blanking taper slot.
2. The powder material is feeded by scraper into the second pelletizing zone in the ring die. And then the material will be pressed by ring die and rollers into pellets.
3. The pellet is discharged from the die hole and cut into the requested size by the cutter.
Technical Parameters
| Model | Power(kw) | Dimension(mm) | Capacity(t/h) | Weight(kg) |
| SZLH250 | 22 | 1300*1000*1500 | 0.5-1.5 | 370 |
| SZLH304 | 30/37 | 1300*1000*1100 | 1-3 | 500 |
| SZLH320 | 37 | 1700*1000*1100 | 2-4 | 1300 |
| SZLH350 | 55 | 1900*1000*1100 | 3-6 | 2500 |
| SZLH400 | 75/90 | 3300*1200*2500 | 7-10 | 3500 |
| SZLH420 | 110 | 3300*1200*2505 | 10-15 | 3800 |
| SZLH508 | 110/132/160 | 3500*1470*2800 | 12-20 | 4700 |
Pellets

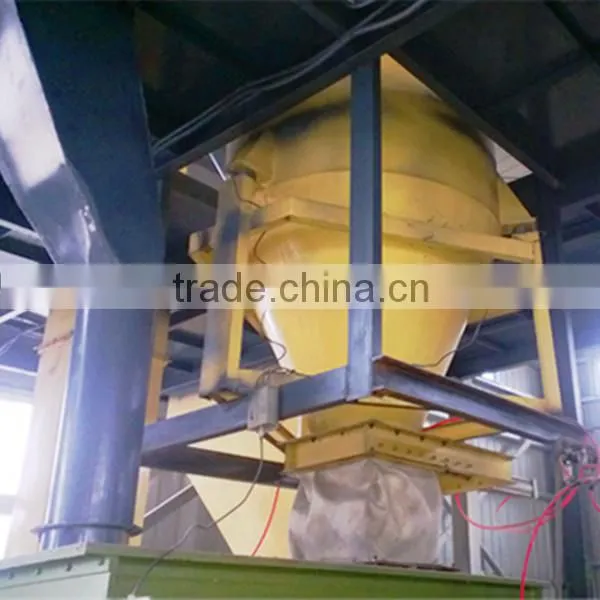

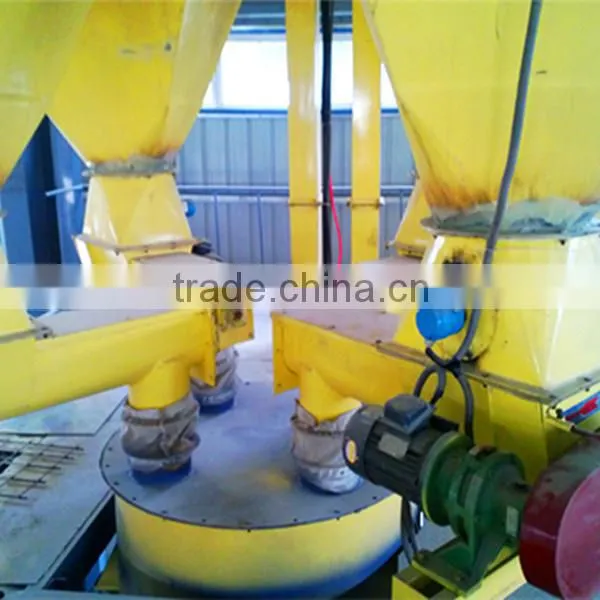

Project we ever build:
Our Services:
We will projects and technical parameters according to the users' requirements.
1) Medium-sales services: we guarantee to choose raw materials in the process of production strictly according to contract requirement. Free-on-the- spot guidance, installation as well as customer training about equipment maintenance and correct application methods are available.
2) After-sales service: We will establish a complete user files to achieve one file for each customer. We can provide accurante and fast service for customers.
Company Info:
Zhengzhou Solon Import&Export Trading Co., Ltd. is an International & professional foreign trade company. Our company is located in the largest transportation hub in Asia - Zhengzhou city, with the best human resources in manufacturing industry in central China and the most vital machinery manufacturing base in China.
Contact Info:
Ms. Linda Qin
Tel: 0086 15238385148
Skype:lindaqin66
