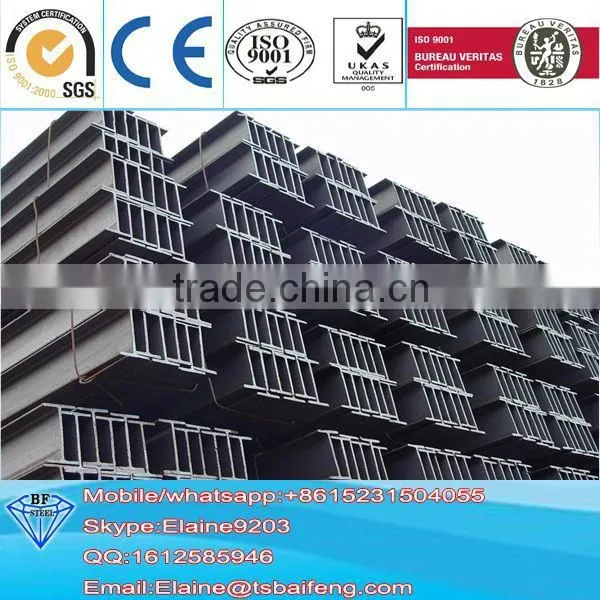

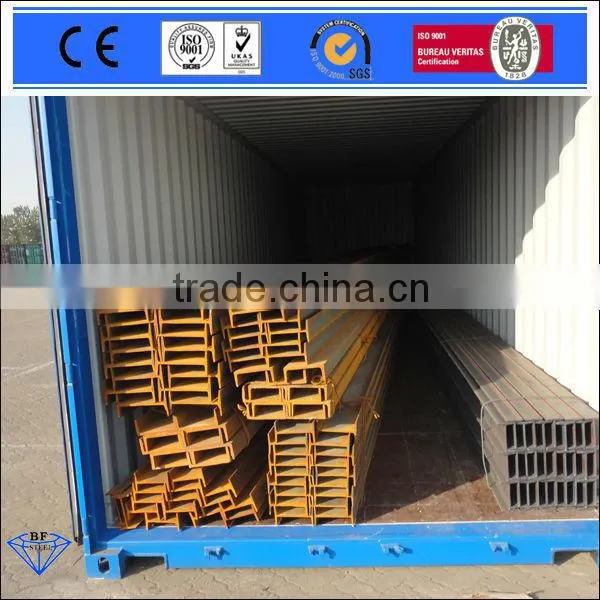

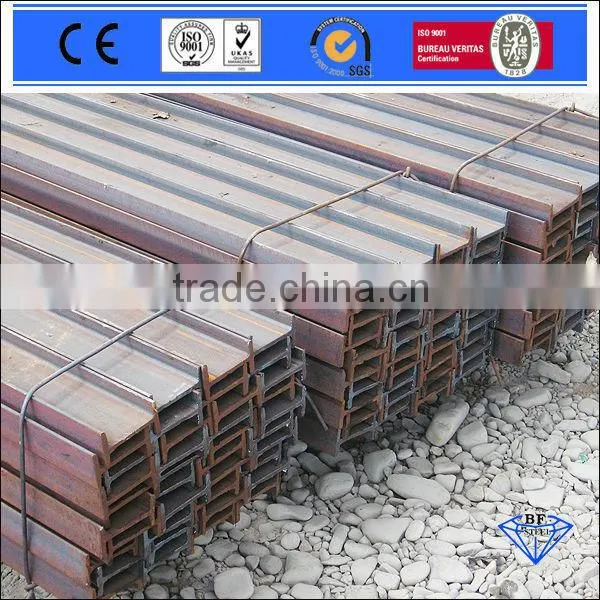

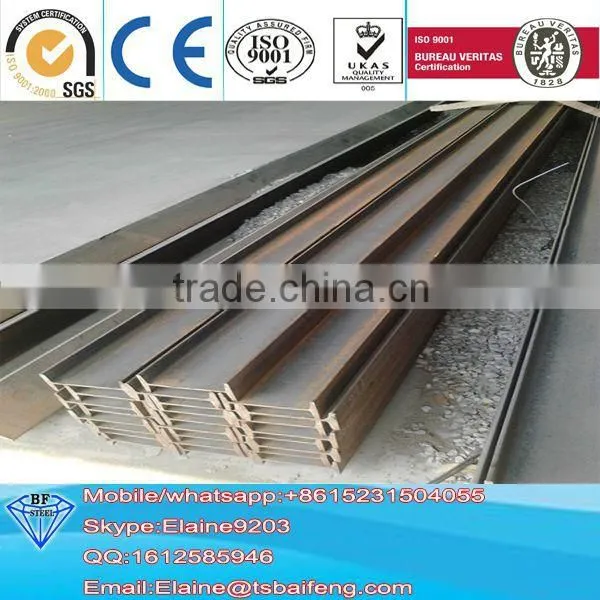

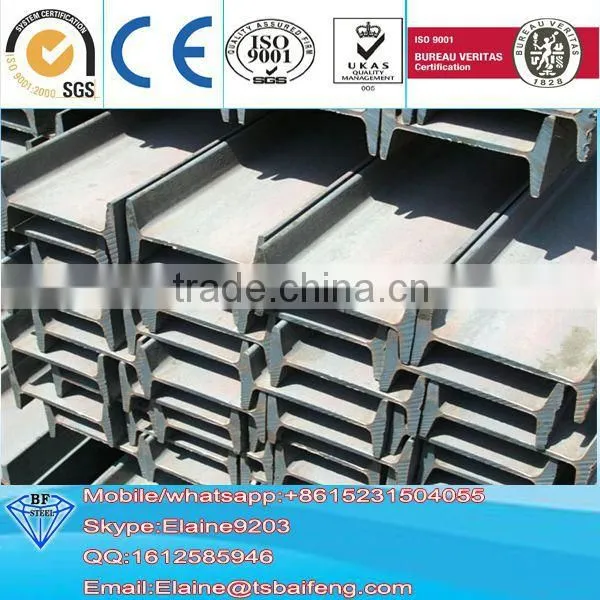

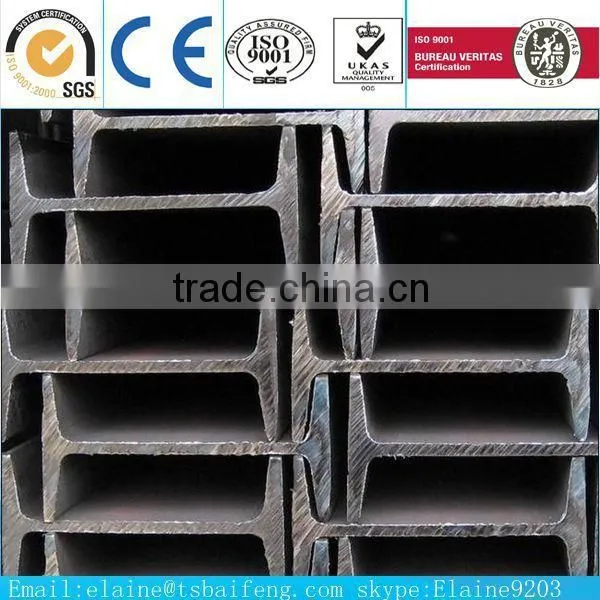

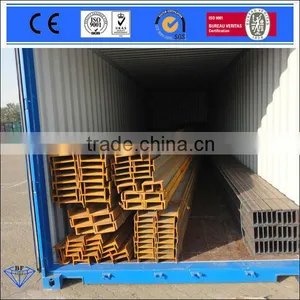

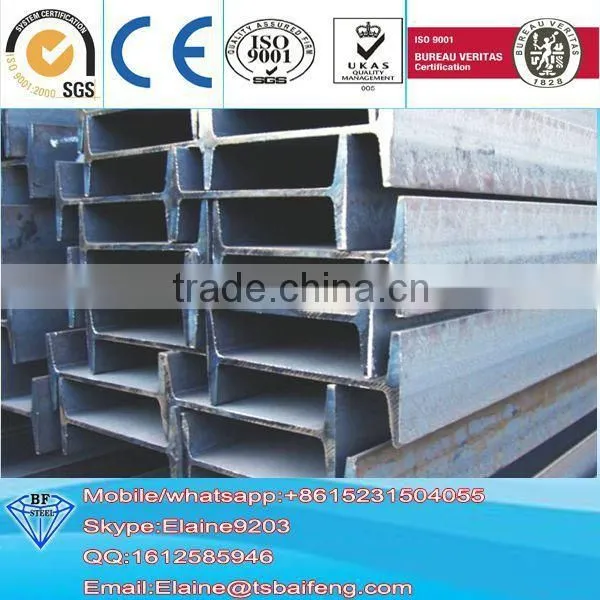

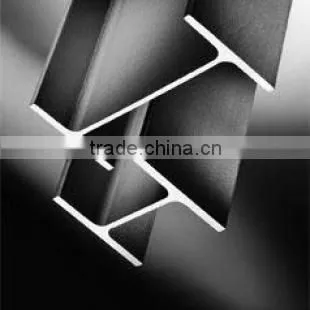

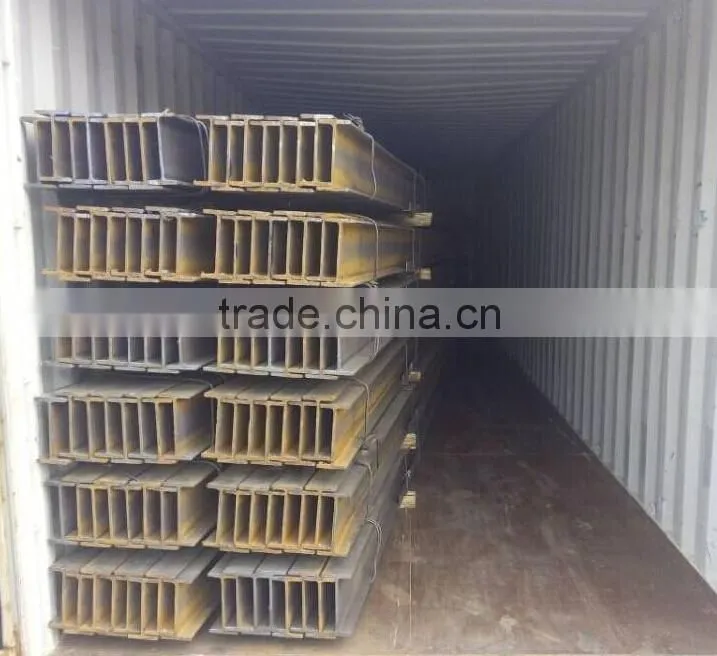

China mild steel I beam IPE IPEAA
GB STANDARD I-BEAM STANDARD: GB/T706-1988
STEEL GRADE: GB9787-88 Q235B
SIZE |
H (mm) |
B (mm) |
T (mm) |
Weight(kg/m) |
10 |
100 |
68 |
4.5 |
11.261 |
12 |
120 |
74 |
5.0 |
13.987 |
14 |
140 |
80 |
5.5 |
16.890 |
16 |
160 |
88 |
6.0 |
20.513 |
18 |
180 |
94 |
6.5 |
24.143 |
20A |
200 |
100 |
7.0 |
27.929 |
20B |
200 |
102 |
9.0 |
31.069 |
22A |
220 |
110 |
7.5 |
33.070 |
22B |
220 |
112 |
9.5 |
36.524 |
25A |
250 |
116 |
8.0 |
38.105 |
25B |
250 |
118 |
10.0 |
42.030 |
28A |
280 |
122 |
8.5 |
43.492 |
28B |
280 |
124 |
10.5 |
47.888 |
30A |
300 |
126 |
9.0 |
48.084 |
EN Standard IPE DIMENSION: DIN 1025-5-1994
STEEL GRADE: EN 10025 S235JR
Designation |
Specification Depth*flange width(mm) |
Web thickness (mm) |
Flange thickness (mm) |
Weight (kg/m) |
IPE100 |
100*55 |
4.1 |
5.7 |
8.1 |
IPE120 |
120*64 |
4.4 |
6.3 |
10.4 |
IPE140 |
140*73 |
4.7 |
6.9 |
12.9 |
IPE160 |
160*82 |
5.0 |
7.4 |
15.8 |
IPE180 |
180*91 |
5.3 |
8.0 |
18.8 |
IPE200 |
200*100 |
5.6 |
8.5 |
22.4 |
EN Standard IPEAA DIMENSION: DIN 1025-5-1994
STEEL GRADE: EN 10025 S235JR
Designation |
Specification Depth*flange width (mm) |
Web thickness(mm) |
Flange thickness (mm) |
Weight(kg/m) |
IPEAA 100 |
100*55 |
3.6 |
4.5 |
6.72 |
IPEAA 120 |
120*64 |
3.8 |
4.8 |
8.36 |
IPEAA 140 |
140*73 |
3.8 |
5.2 |
10.03 |
IPEAA 160 |
160*82 |
4.0 |
5.3 |
12.31 |
IPEAA 180 |
180*91 |
4.2 |
5.8 |
14.94 |
IPEAA 200 |
200*100 |
4.5 |
6.7 |
17.95 |
Based at No. 27 Xinwang Steel Wholesale Market 27, Fengrun, Tangshan, Hebei, China, Tangshan Baifeng Steel Co., Ltd. is a professional wholesaler and exporter of all kinds of steel products, established in 2006. Our primarily purpose is to offer a comprehensive steel building product range and an efficient logistics service for our esteemed customers all over the world.
Our three branch companies:
* Tangshan Fengrun Baifeng Trading Co., Ltd. -- professional steel exporter and wholesaler, providing service for worldwide customers.
We stock steel billets and all kinds of structural steel like mild steel angles, channels, I-beams, H-beams, and steel coils like cold rolled steel coils, galvanized steel coils and prepainted galvanized steel coils.
* Tangshan Lifeng Galvanization Co., Ltd. -- galvanized factory, offering all kinds of quality galvanized structural products.
* Tangshan Xingfeng Logistics Co., Ltd. -- efficient logistics service for the transportation all over China.
All companies are doing the steel business hand in hand to fulfill the commitment: "Reputation first". We confirm the delivery on time!
