full color easy install crystal-clear led outdoor video display boards for football stadium
| LED Lamp | |
| Type | SMD3535 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(800-960mcd) |
| Chip parameters | Green (520-525nm) IV:(1350-1650mcd) |
| Chip parameters | Blue (470-475nm) IV:(330-400mcd) |
| LED Module | |
| Pixel Pitch | 7.81mm |
| Module Size(W*H) | 250×250mm |
| Module Resolution | 32×32=1024(Dots) |
| Module Weight | 0.45kg |
| LED Cabinet | |
| Pixel Density | 16394 Dots/sqm |
| Cabinet Dimension(W*H*D) | 500×1000×95mm |
| Cabinet Resolution | 64×128=8192(Dots) |
| Module Quanty /Cabinet | 2×4=8(Pcs) |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Cabinet Weight | 16kg |
| Brightness | >7500cd/sqm |
| Viewing Angle | 120(Horizontal), 120(Vertical) |
| Nearest Viewing Distance | 11m |
| Power Consumption (Max) | 1000 w/sqm |
| Power Consumption (Average) | 300 w/sqm |
| Refresh Rate | >800Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Display Function | Text, Graphics, Video |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level(front/back) | IP66/IP54 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -30oC~50oC |
| Humidity | 15%~85% |
| Control System | |
| Control Method | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio(HSTV-linsn) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable, 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |

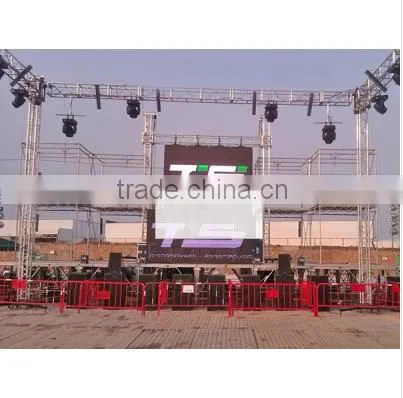

Golden Ratio - Suitable for Stage
The stage curtain LED display has an ideal cabinet size of 500mmx1000mm which makes it ideal for stage background, bar entertainment ceremony and wedding.
Space Saving, Ultra-lightweight
The Outdoor LED Video Wall is only very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 16kg/panel LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.

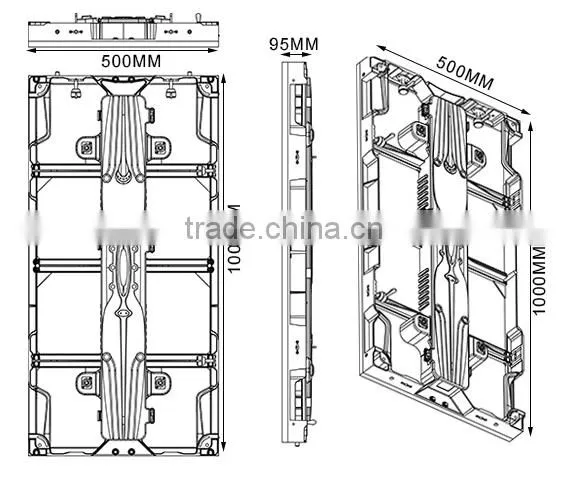

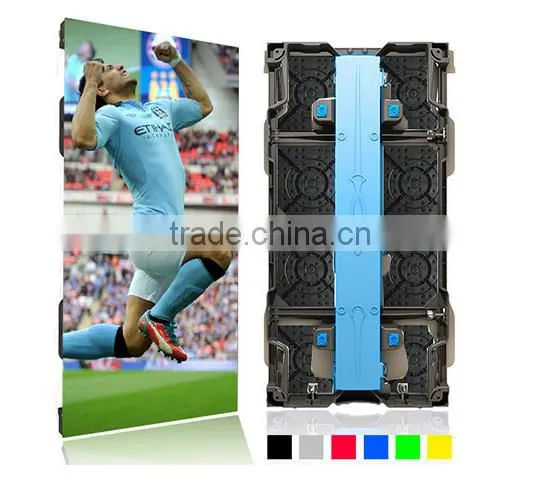

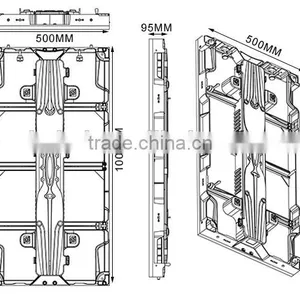

Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum-magnesium alloy which gives it extra strength. The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

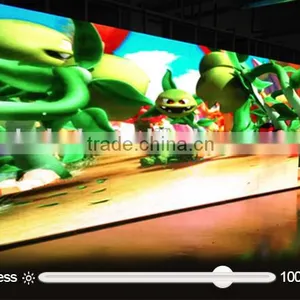

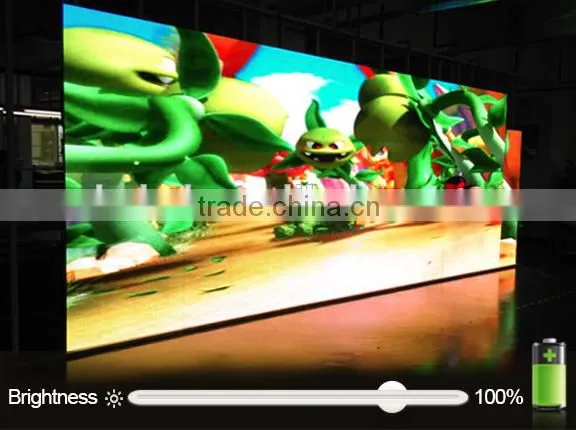

High Brightness, Better Quality
The high brightness and high definition features of the Outdoor LED Video Wall ensures great quality pictures - making it a perfect fit for stage, hotel, promotion, station, stadium and other outdoor places.
Four High Technologies - Point-to-Point Correction
The display features four high technologies and point-to-point correcting. High refresh rate, high gray scale level, high definition and high contrast rate present excellent quality picture output in every condition.
Silence Operation - Low Power Consumption
The Stage Curtain LED Screen is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.

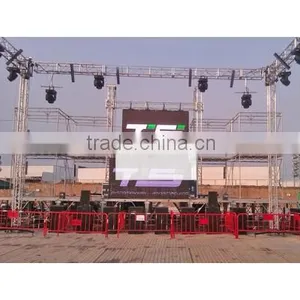

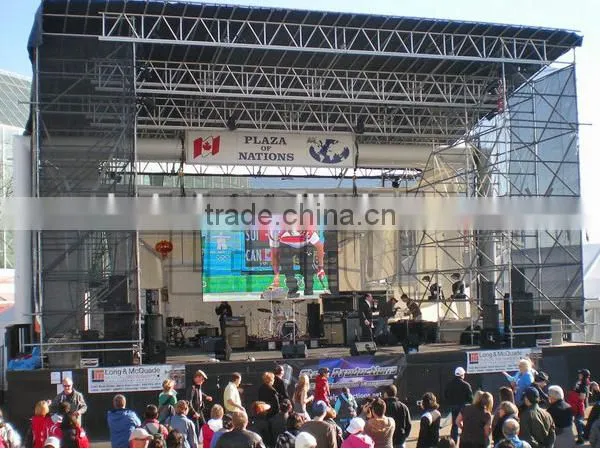

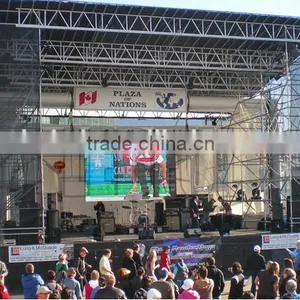

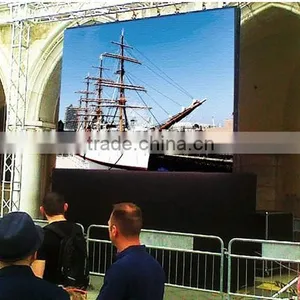

Application

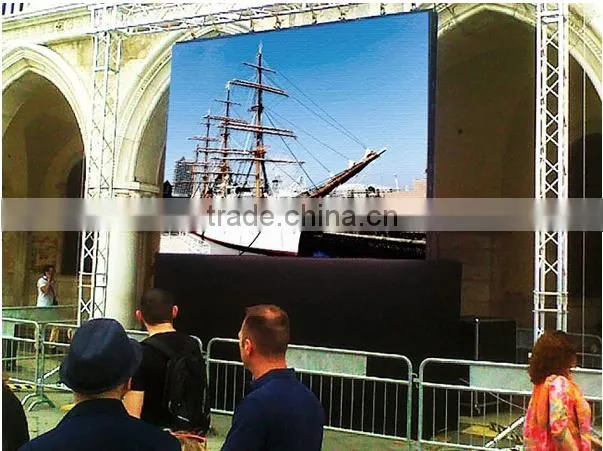

The Outdoor LED Video Wall is highly usable at outdoor places like malls,
stages, promotion, exhibitions, stations, stadiums, etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

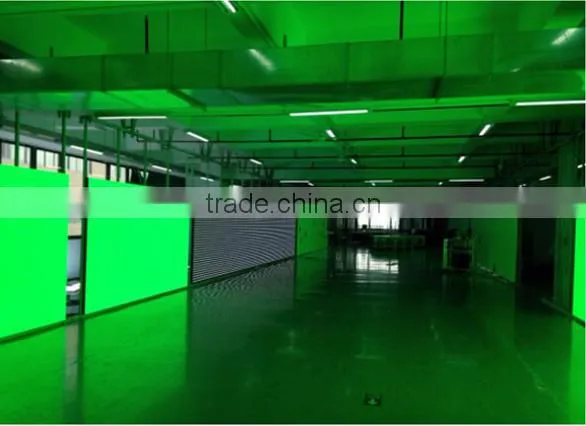

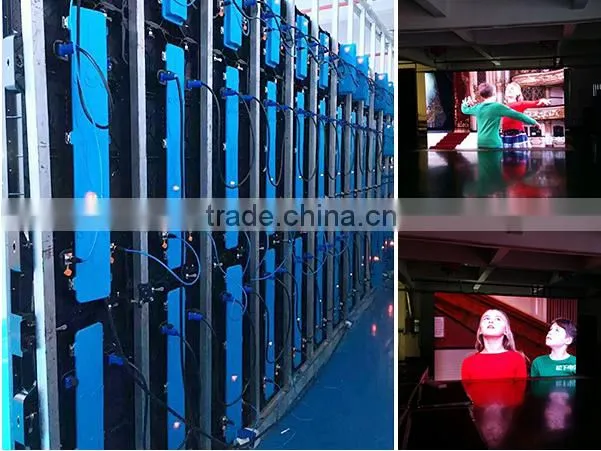

Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

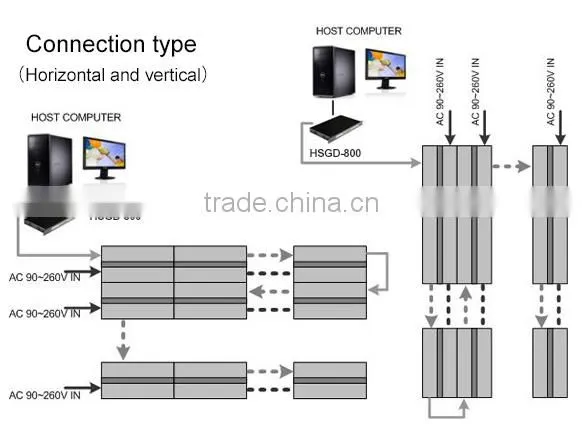

Two Connection Types
The display has two connection types - horizontal and vertical connections. Thus, it can be installed in both ways. Unique cabinet design ensures fast installation and convenient maintenance.
Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

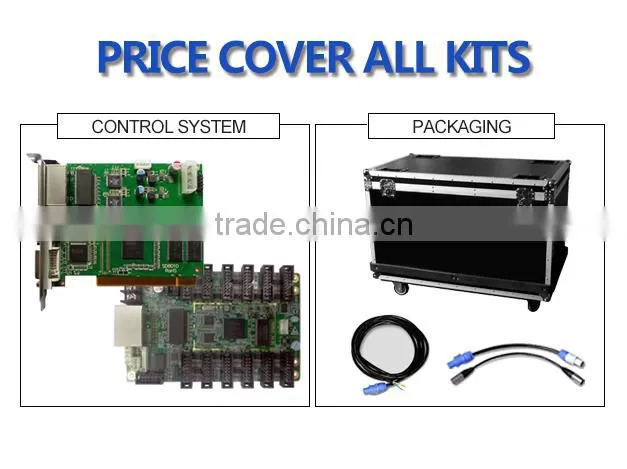

One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.

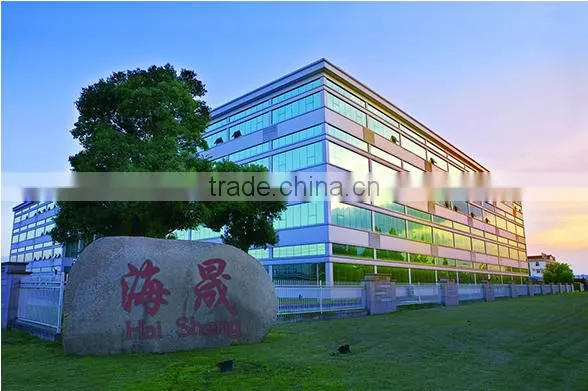

Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your Outdoor LED Video Wall is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
