Home > Security & Protection > Alarm & Security Systems > Alarm & Security System Accessories > 1 Channel Passive HDCVI Camera Video Transceiver

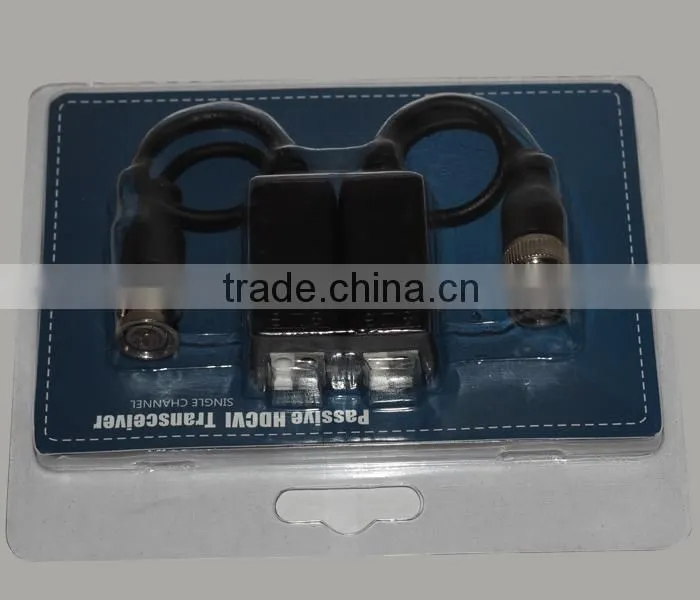

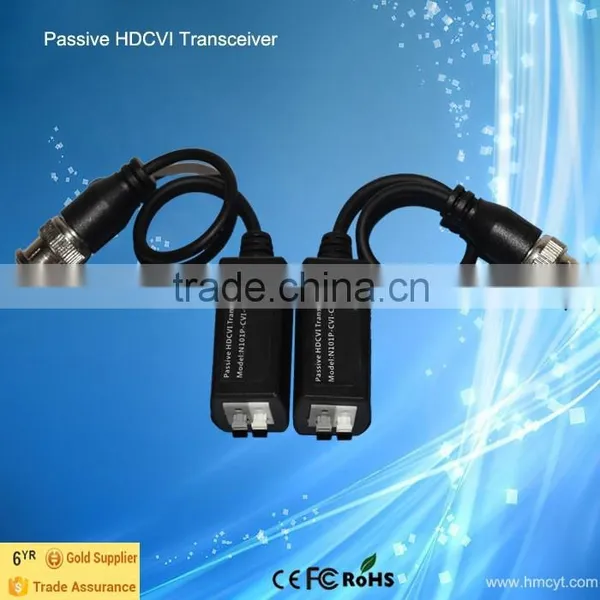

1 Channel Passive HDCVI Camera Video Transceiver

Negotiable MOQ: 5 Pairs (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Model Number:

CY-101W-CVI

Contact Supplier Request Quote Chat Now

Henan HMCY Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name CY

Model Number CY-101W-CVI

1 Channel Passive HDCVI Camera Video Transceiver

Product Description

Features

No power required

HDCVI video format compatible

Real time transmission

Exceptional interference rejection

Wave Filter Design,Anti-Static Design,Lightning Protection

Long-distance transmission and high-quality image

Compact size and easy installation

Cost-effective

ITEMS	SPECIFICATION
Properties
HDCVI signal	1 channel
Transmission cable	UTP CAT5/5E/6
Transmission Distance	720P:400m 1080P:200m
Video
Compatible Format	HDCVI
Resolution	720P/1080P
Operating Frequency	DC to 6MHz
Anti-interference	Less than 60dB
Attenuation	1.5dB typ Max
Impedance	Male BNC:75Ω
	UTP cable:100Ω
Power
External power required		No
Protection
ESD		1a contact discharge electricity level 3
		1b air discharge electricity level 3
		Per:IEC61000-4-2
		Renewable solid state surge protection
Video Input		2KV(common mode),per:IEC1000-4-5
Video Output		2KV(different-mode),4KV(common mode),per:IEC1000-4-5
Connector
Video input/output		Male BNC / Push terminal
Mechanical
Housing		ABS engineering plastic
Body Color		Black
Dimensions		532017mm(connector excluded)
Net weight		25g/pair
MTBF		More than 10000H
Environment
Operating Temperature		-10℃-55℃
Relative Humidity		0-95%(non-condensing)
Storage Temperature		-20℃-70℃

Application:

Installation:

1.Total Absence of Signal
This problem is almost always due a discontinuity in the connection between the camera and the mux. Check the continuity of the twisted pair link.

2.Presence of Signal But No Image
This problem is most likely due to a reversal of the polarity of the wires between the two CCTV Baluns at either end. The pin designated as “Ring” must be connected to the pin designated as “Ring” at the other end.

3.Smearing
Smearing occurs when the edge of an image leaves trail traces similar to smudging a line of ink on a piece of paper. This may occur as the length of twisted pair cable increases.Possible solutions are; a)to shorten the length of cable or b) adjust thecontrast and brightness of the monitor.

4. Flutter

Flutter occurs when the background fluctuates between light and dark. A solution to minimize this effect is to adjust the monitor’s contrast and brightness.

5. Ghosting

Ghosting is characterized by a second video image being received after the main image,resulting in a double image that is skewed in relation to the first.In these cases itis best to replace the existing cable with a new one.

6. Loss of Color and Image Detail

Loss of color or image detail may occur if twisted pair cable length exceeds the distance specifications.

Other than using an active device, one can improve the image by shortening the length of twisted pair or by eliminating other contributing signal losses such as splices, cross-connects, low-grade patch cables, etc.
