Help CenterHigh Quality 3 Pin Watertight Electrical Power Connector, Lock Bayonet Bulkhead Terminal Connector
Related Products
-
Large 12 Pin Panel Mount Watertight Electrical Connector, Led Outdoor Lighting Waterproof CnnectorUS$ 1 - 5MOQ: 300 Pieces -
3+9 Pin Terminal Waterproof ConnectorUS$ 1 - 5MOQ: 300 Pieces
-
9 Pin Terminal Waterproof ConnectorUS$ 1 - 5MOQ: 300 Pieces
-
24 Pin Bulkhead Waterproof ConnectorUS$ 1 - 5MOQ: 300 Pieces
-
Large 2 Pin 20A High Quality Waterproof ConnectorUS$ 1 - 5MOQ: 100 Pieces
Specifications
A. The waterproof rating is IP67B. 3 types can be choose: screw type, lock bayonet type
C. UL,CE,ROHS
The advantage of our connector
1. There are screw, lock bayonet, push lock 3 assembly style can be choose by our customer
2.100% in house manufacturing ready for customized service
3. RoHS compliant with Safety approval
4. We can produce connector with contact number from 1 to 24, it's all deopends on custome's request
5. The degree of protection can be IP65,IP66,IP67,IP68
6. Field installable and molding with cable for customer's choice
7. We test our connector many times during our producing to guarantee the quality of our connector
8. We provide 50,000 sets waterproof connectors using on the Opening Ceremony at the Shanghai 2010 World Expo with its 6,000 sq.m huge LED screen
Item |
Description |
Detail |
1 |
Connector Size |
Large |
2 |
Current Rating |
6A |
3 |
Rate Voltage |
125V |
4 |
Contact Number |
24 |
5 |
Connector Gender |
Panel mount |
6 |
Assembly Style |
Solder |
7 |
Mating Style |
Lock bayonet |
8 |
Backs Hell |
Circular |
9 |
Waterproof Rating |
IP67 |
10 |
Wire Gauge |
22AWG |
|
Material: Insulator: PVC Contacts: Brass 4U”-20U” Gold plated Sealing: Silicone CE, UL, ROHS | ||
|
Property: Contact Resistance: <5mΩ Insulation Resistance: ≥500MΩat DC 500V Breakdown Voltage:≥2.5KV normal, 1.5KV water Temperature Ration: -45°C-105°C Durability: 3000 cycles | ||
|
Our connectors are widely used in: u LED u Street light u Automotive u Power supply u Electric vehicle u Marine electron u Actuating motor u Medical equipment u Wireless communication | ||

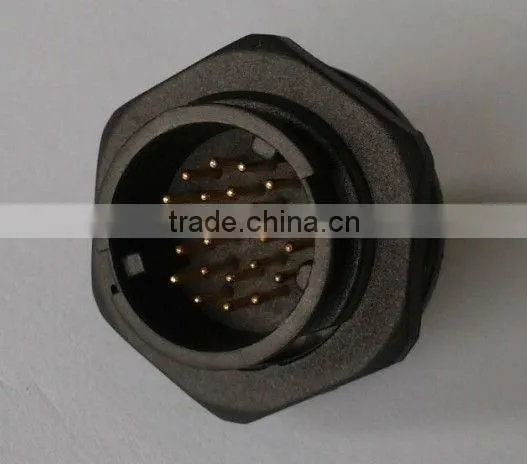

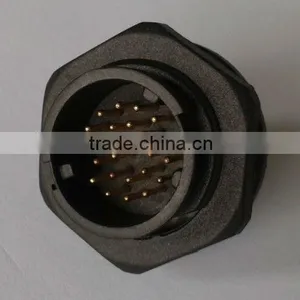

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
The production lean line of our company

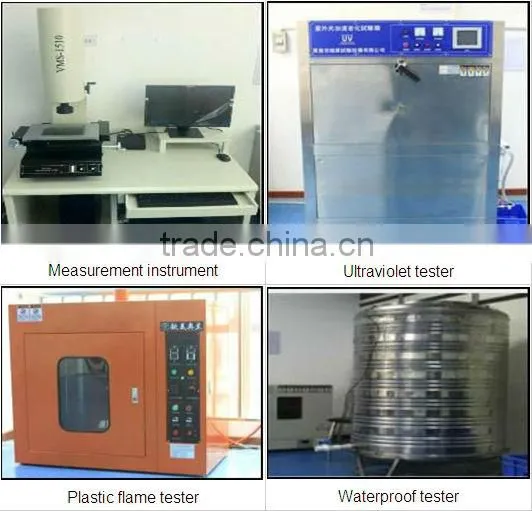

The test equipment of our company
