Help CenterPush Lock 3 Pin Power Connector With Superior Electrical and Mechanical Properties
Related Products
-
24pin Connector Large IP67 Waterproof Connector,Chogori High Quality Nylon Connector,5amp High Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces -
Large 9P Lock Bayonet IP67 Waterproof Connector,Chogori High Quality Nylon Connector,5amp High Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces
-
Large 3P Lock Bayonet IP67 Waterproof Connector,Chogori High Quality Nylon Connector,20amp High Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces
-
Large 3P UL Lock Bayonet IP67 Waterproof Connector,Chogori High Quality Nylon Connector,50amp High Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces
-
Large 3+9P UL Push Lock IP67 Waterproof Connector,Chogori High Quality Nylon Connector,high Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces
Specifications
A. The waterproof rating is IP67B. 3 types can be choose: screw type, lock bayonet type, push lock type
C. UL,CE,ROHS
The detail description of Chogori large series 3 pin waterproof connector
The brief introduction of chogori large series waterproof connector
- we have (2,3,9,18,24,3+9,3+11)pins middle series waterproof connector
- the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
- we have 3 types :screw, lock bayonet, push lock. we can use the cable provided by customers, and we also can purchase cable for our customers.
- The large series advantage : Adopt separate design, increase creep distance
The specification of large series 3 pin waterproof connector
Material |
Connector Body: ABS/PBT/PA66 UL94V-0 1/8” Contact: Brass 4U”-20U” Gold plated |
Temperature Range |
-45°C-105°C |
Waterproof Rating |
IP68 |
Durability |
3000 Cycles |
Flame Test |
UL/CAS FT4 Flame Test |
Thermal Shock |
5 Cycles at -45°C-105°C |
Salt Spray |
48 Hours |
Connector Size |
Middle |
Rate Voltage |
250V |
Rated Current |
20A |
Wire Gauge |
22AWG |
Connector Type |
male connector with male pin |
Connector Gender |
male |
Assembly Style |
Field Installable 180° |
Mating Style |
push lock |

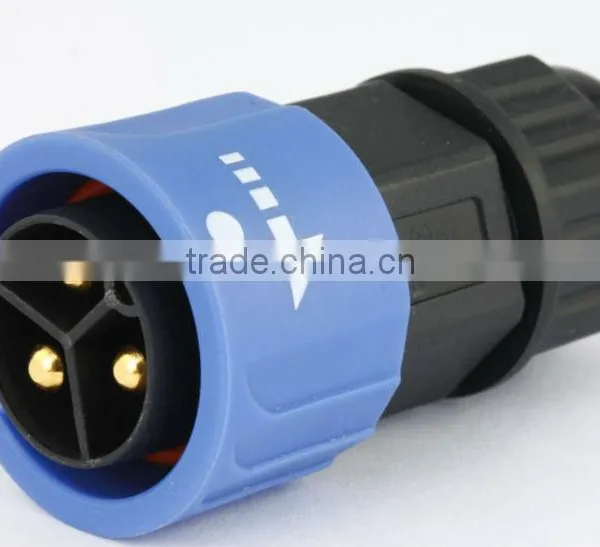

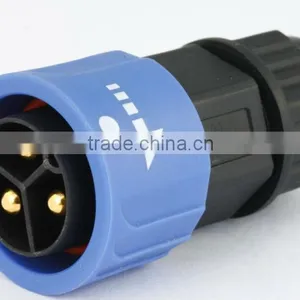

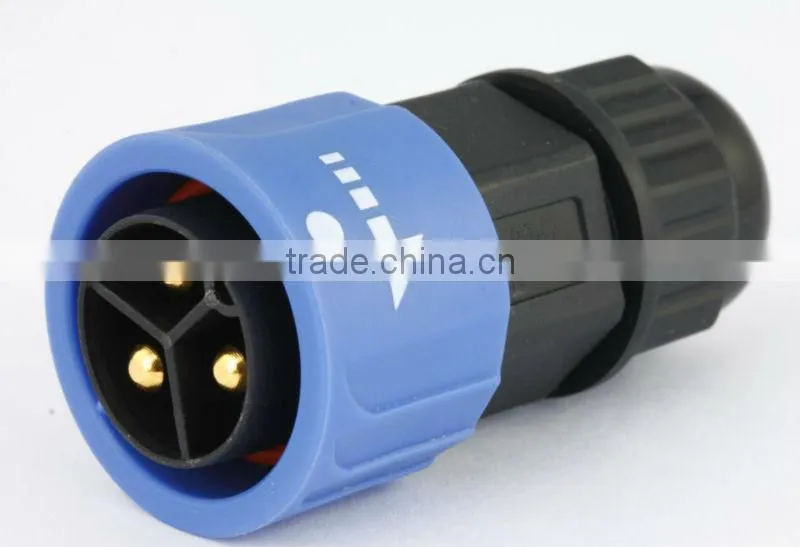

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)

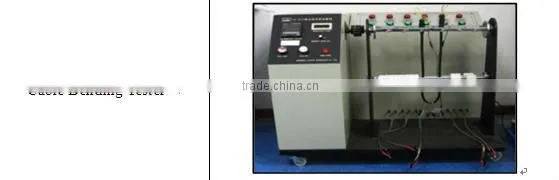

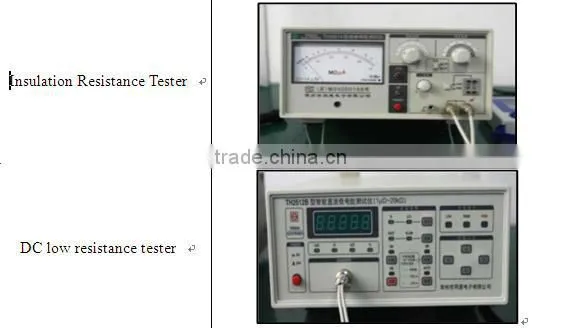

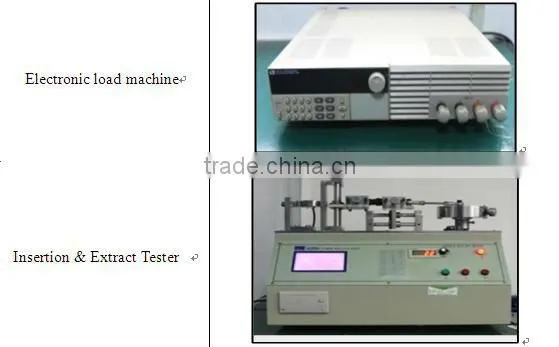

The test equipment of our conpany
