Help CenterUSB Lock Type Waterproof Panel Mount
Related Products
-
Fiedld Isntallable ,180degree, Screw Type, Circular USB ,waterproof ConnectorNegotiableMOQ: 500 Pieces -
D-sub Waterproof ConnectorUS$ 1 - 5MOQ: 500 Pieces
-
USB Waterproof ConnectorUS$ 1 - 5MOQ: 500 Pieces
-
Fiels Installable Screw Type USB ConnectorUS$ 1 - 5MOQ: 500 Pieces
-
USB Panel Mount Waterproof ConnectorUS$ 1 - 3MOQ: 500 Pieces
Material
Connector Body Nylon+GF UL94V-0 1/16"
Contact: Brass; Gold Plated 4 u" -20u"
Crown: BeCu Sealing Silica gel
RoHS CE
Property
Contact Resistance <10mΩ
Insulation Resistance : ≥500 MΩ at DC500V
Breakdown Voltage ≥1KV/1Minute Moist
Temperature Rating -45°C~+105°C
Waterproof Rating IP66&IP67&IP68
Durability ≥ 3K Plug/Unplug Cycles
Application |
Medical equipment |
Outdoor LED display | |
Streetlight | |
Wireless communication | |
Marine electron | |
Actuating motor |

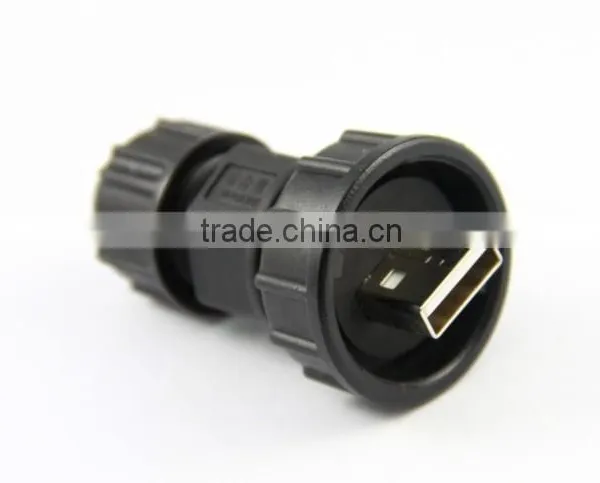

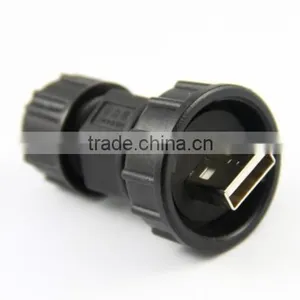

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
The material of our connector
|
|
|
|
|
|
